3-3
REMOTE CONTROL TYPES AND APPLICATIONS

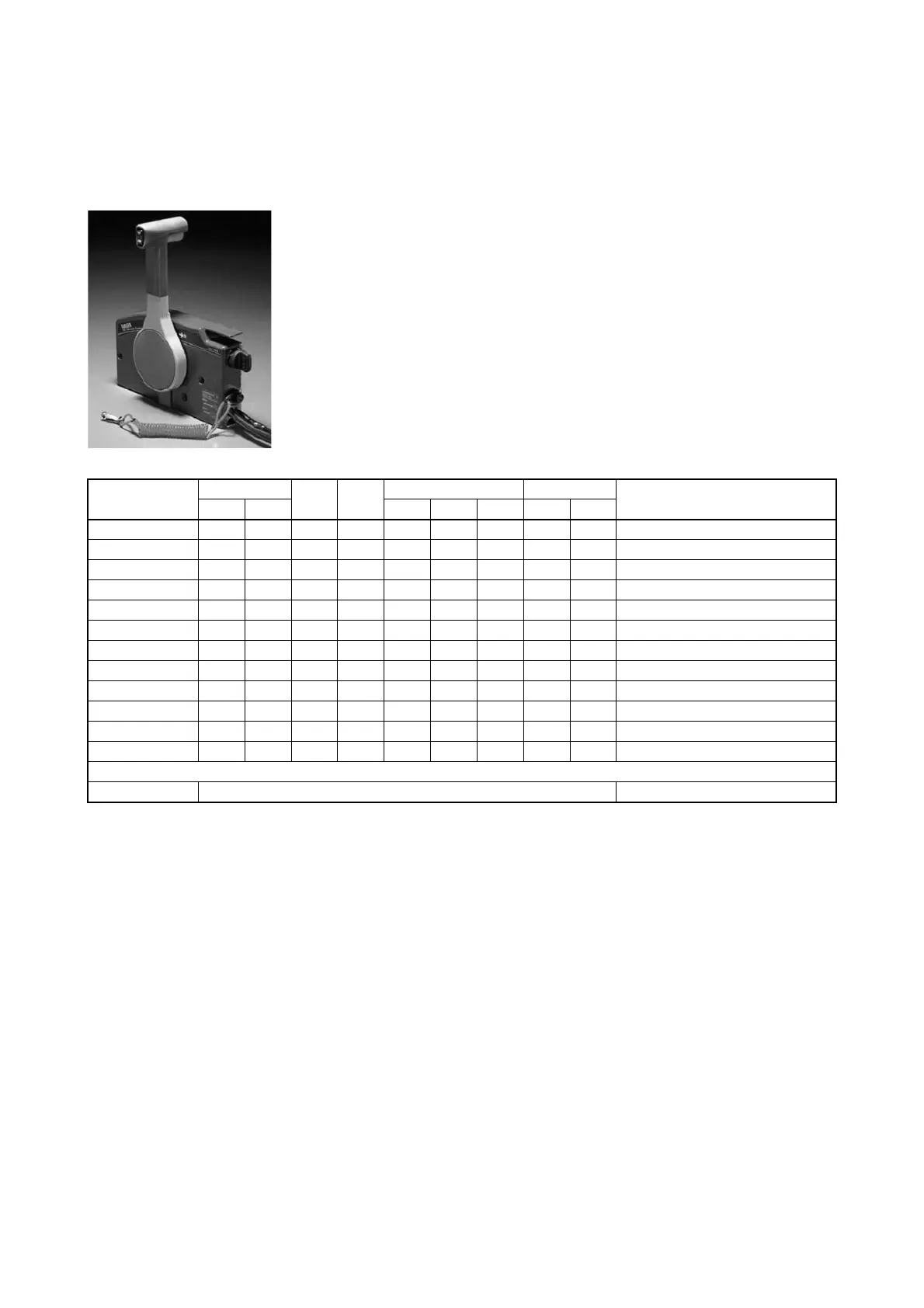

703 SIDE MOUNT REMOTE CONTROL [Mechanical RC]
Designed to be compatible with most of the Yamaha Outboard motor models.
This remote control can be fitted in almost every type of boat.
The basic control functions are contained in the 703 remote control box.
* Throttle opening direction (PUSH-PULL) can be reversed.
* Control lever position (R-L) can be changed to its opposite side.
* 13 mm (0.5 in) thickness spacer is included in the remote control package.
* A 4.5 m (15 ft) wire harness (10-pin) is attached to the remote control box.
* For further information, see the instruction (P/N:703-28199-03 or 33) in the package.
Part No.
Throttle
Choke
PTT
Coupler Mount
Remarks
Push
Pull
7-pin
10-pin 2-pin
RL
703-48201-1B 1 1 1 1
703-48201-A6 1 1 1
703-48203-1A 1 1 1 1 For analog gauge only
703-48205-1B 1 1 1 1 1
703-48205-A7 1 1 1 1
703-48207-1B 1 1 1 1 1 For additional trim SW
703-48210-1B 1 1 1 1
703-48230-1A 1 1 1 1 For analog gauge only
703-48250-1B 1 1 1 1 1
703-48290-01 1 1 1 1 1 For additional trim SW
703-48206-10 1 1 1 Successor model of 701 RC
703-48260-10 1 1 1 Successor model of 701 RC
703-48290-01 Twin attachment kit For twin engine application
