OUTBOARD MOTOR DIMENSIONS

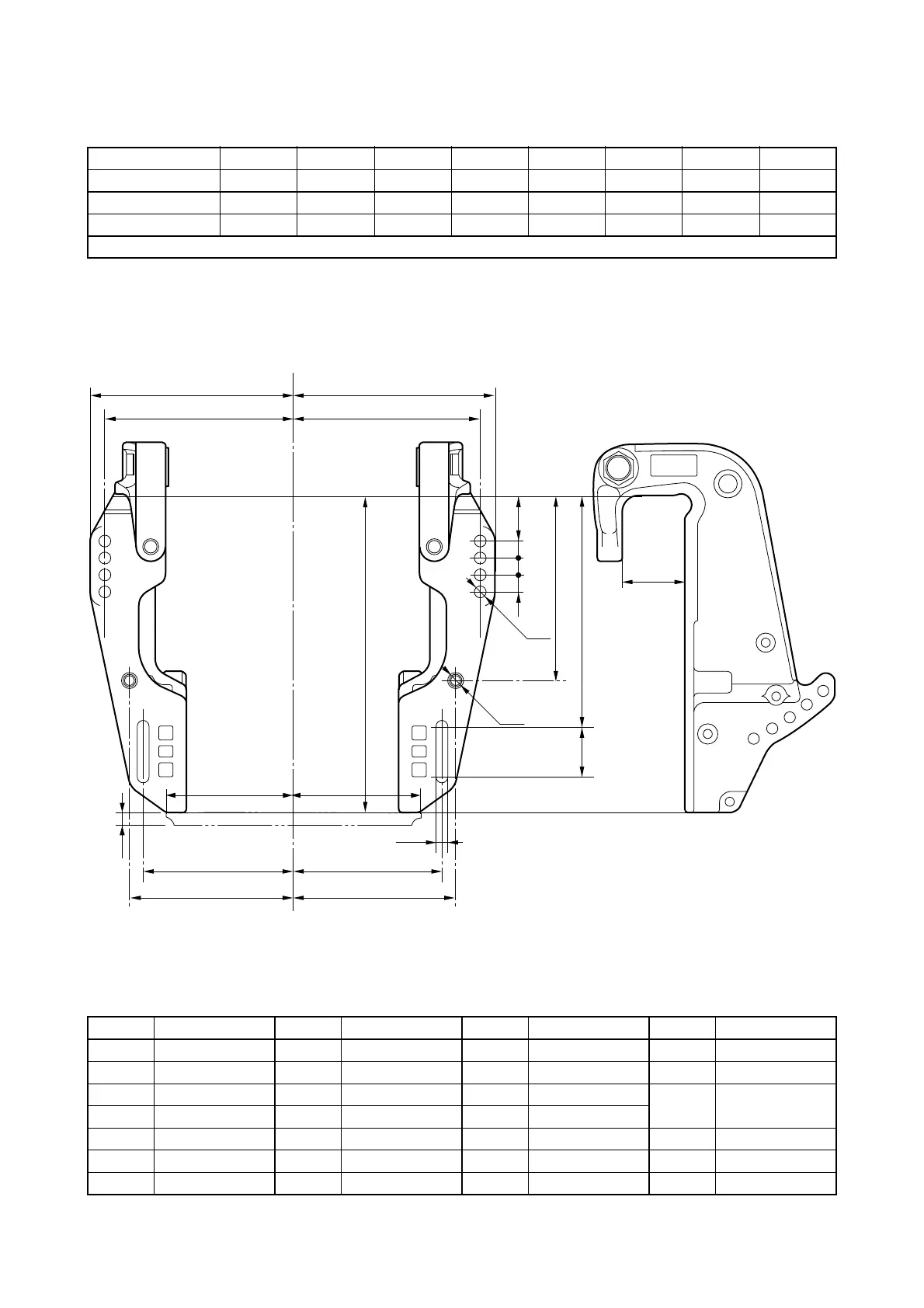

CLAMP BRACKET DIMENSIONS
Global model 55B 55D 60F 70B 75A 75C 85A 90A
US/CA model
Global model E60H E75B
US/CA model
PTT & Hydro-tilt for L/X-transom
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) B8 203.2 (8.0) C1 — D1 13 (0.51)
B2 254 (10.0) B9 18.5 (0.73) C2 — D2 55.5 (2.2)
B3 163.5 (6.4) B10 — C3 68.5 (2.7)
D3
Studbolt hole:
M12 × 1.25-40 deep
B4 50.8 (2.0) B11 —
B5 180 (7.1) B12 — D4 —
B6 352 (13.9) AN1 19 (0.75)
B7 138.1 (5.4) AN2 101.5 (4.0)
B6
B1
B7
D1
B3
B5
C/L
B2
B8
D2
C3
D1
B4
B9
B9
B9
B1
B7
B3
B5
D3
AN1
AN2 AN2
To Next Page
