Yamaha AEX500 - Circuit Board and Diagrams; Circuit Board Layout; Circuit Diagram

AEX-500NS
5

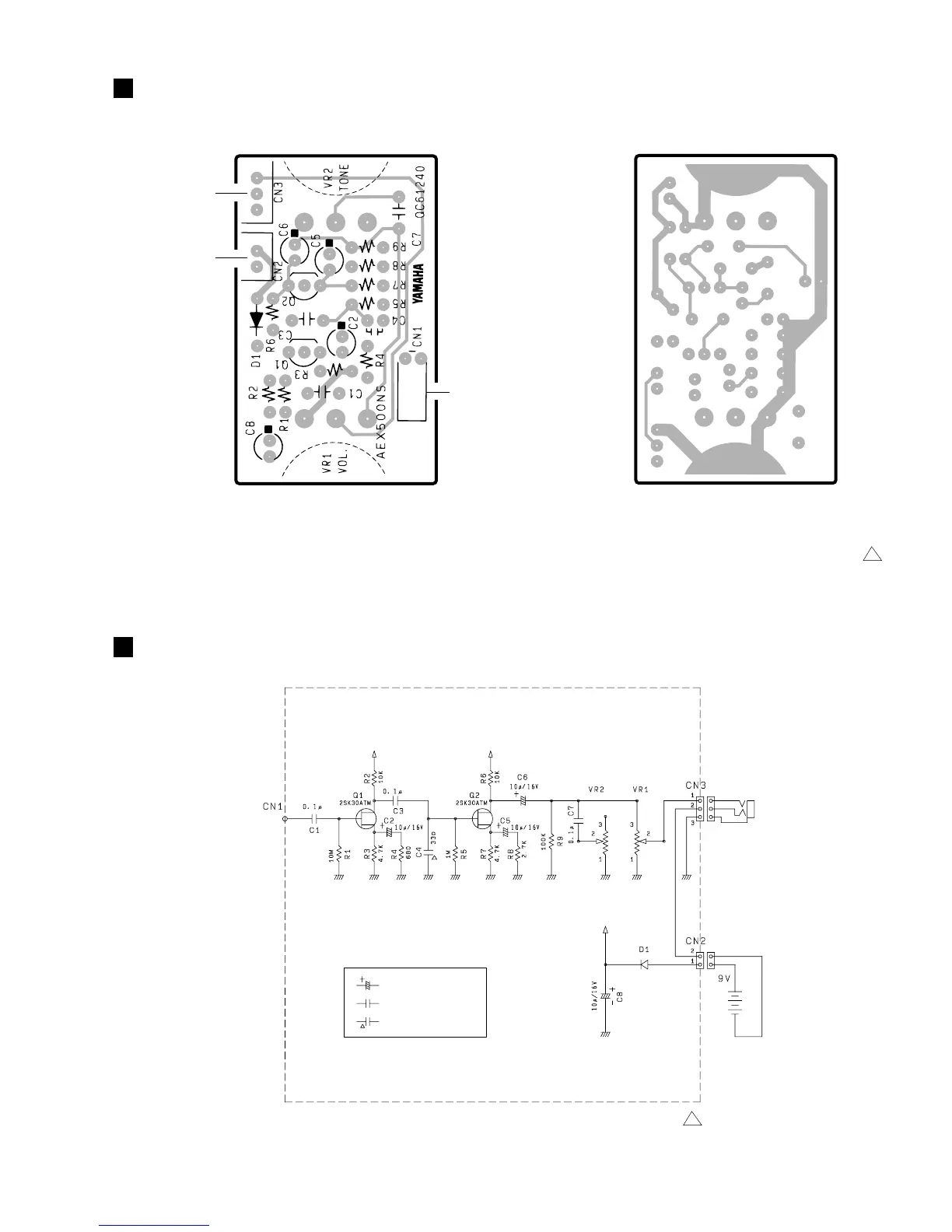

CIRCUIT DIAGRAM
Electrolytic Capacitor
Mylar Capacitor
Ceramic Capacitor
PICKUP
TONE
15A 25K ohm
VOLUME
15A 25K ohm
OUTPUT JACK
BATTERY
CIRCUIT BOARD
to PICKUP
to Battery
VOLUME
TONE
to OUTPUT JACK
Component side Pattern side
Note: See parts list for details of circuit board component parts.
EPA-QC59580 0
STE-GA00P-03 0
