Yamaha AEX500 - Wiring and Specifications; Wiring Diagram; Standard Specifications

AEX-500NS
6

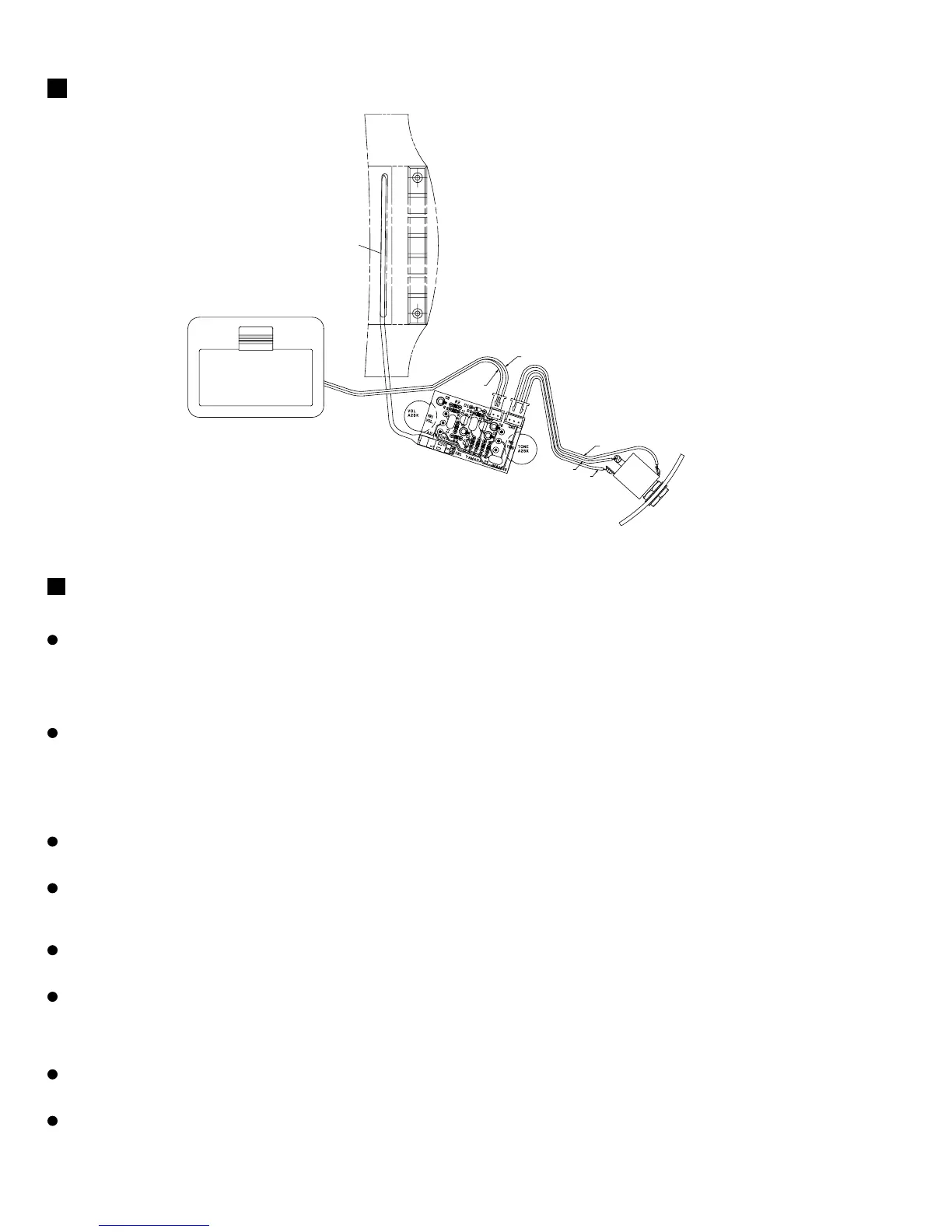

WIRING
SPECIFICATIONS
STANDARD SPECIFICA TIONS
Scale Length..............................648mm
Body-Neck Construction .........Bolt On
Length........................................ 1011mm
Width ......................................... 365mm
Net Weight ................................3.0kg
COLOR
Body
BL .............................................Black
NT ............................................Natural
AMT ......................................... Amber Burst
Neck
NS............................................. Natural Satin
BODY
Material...................................... Spruce, Alder, Maple
Body Depth ...............................43.9mm
FINGERBOARD
Material...................................... Rose
Fingerboard Width ................... 0-F 45.0 mm, 12-F 54.5 mm
No. of Frets................................20
NECK
Material...................................... Maple
Neck Thickness ........................ 1-F 20.9 mm, 12-F 23.1 mm
PARTS
Hardware ...................................Gold Plated
Nut.............................................. Bone
Bridge ........................................Indian Rosewood
Strings........................................ S11-S16
CONTROLS
Volume .......................................15A 25KΩ x 1
Tone ........................................... 15A 25KΩ x 1
PICKUPS
Pickup ........................................ B-band 29S
Box for Dry Cell
PICKUP
OUTPUT JACK
VOLUME
15A 25K ohm
TONE
15A 25K ohm
WH
RE
RE
BL
BL
