Yamaha AVENTAGE RX-A740 User Manual

APPENDIX ➤ Ideal speaker layout En 123
Use this diagram as a guide. You do not need to adjust the speaker layout to the following diagram exactly.

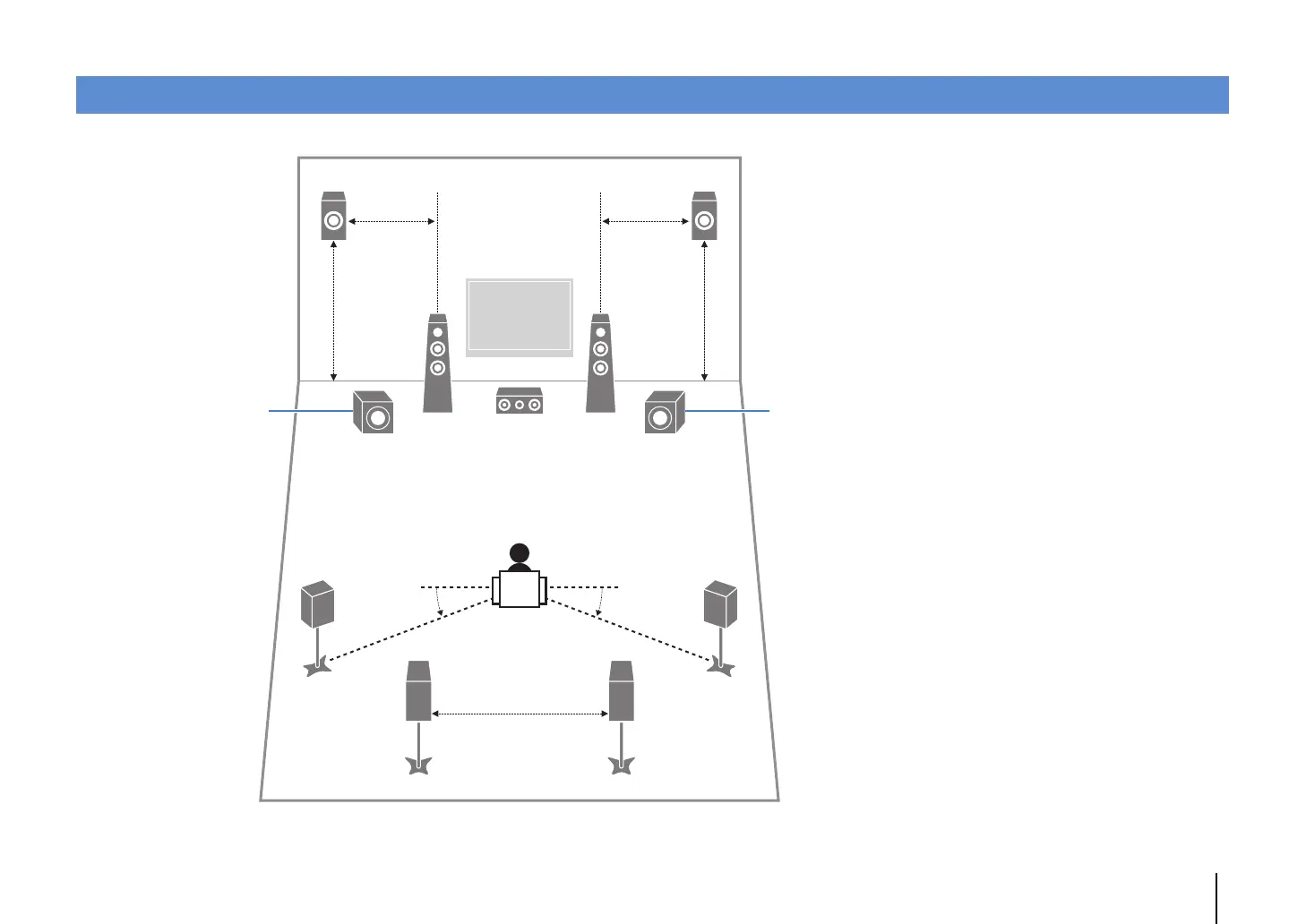

Ideal speaker layout
12
3
45
6 7
99
ER
0.3 m (1 ft) or more
0.5 to 1 m
(1.6 to 3.3 ft)
1.8 m
(5.9 ft)
0.5 to 1 m
(1.6 to 3.3 ft)
1.8 m
(5.9 ft)
Turn it slightly inward to
reduce wall reflections.
Turn it slightly inward to
reduce wall reflections.
1 Front speaker (L)
2 Front speaker (R)
3 Center speaker
4 Surround speaker (L)
5 Surround speaker (R)
6 Surround back speaker (L)
7 Surround back speaker (R)
E Presence speaker (L)
R Presence speaker (R)
9 Subwoofer
10° to 30°10° to 30°

Yamaha AVENTAGE RX-A740 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Total Harmonic Distortion (THD)	0.09 %
Dynamic power per channel (4 Ohm)	190 W
Dynamic power per channel (8 Ohm)	125 W
Power output per channel (1KHz@8 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	FLAC, M4A, WAV
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W

Weight and Dimensions

Depth	367 mm
Width	435 mm
Height	171 mm
Weight	10500 g
