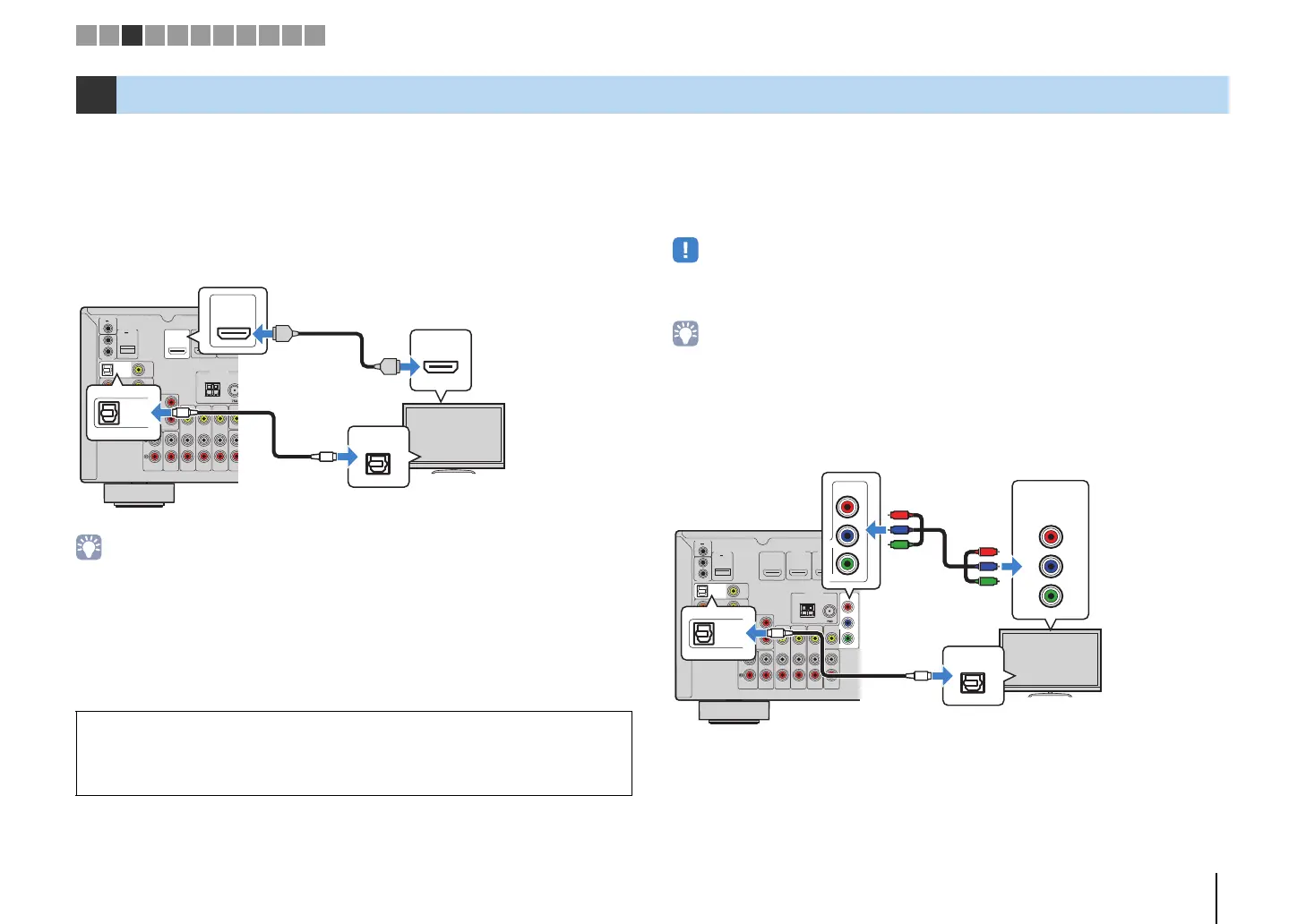

PREPARATIONS Connecting a TV En 21
Connect a TV to the unit so that video input to the unit can be output to the TV.
You can also enjoy playback of TV audio on the unit.
To maximize the performance of the unit, we recommend connecting a TV with an HDMI
cable.
HDMI connection
Connect the TV to the unit with an HDMI cable and a digital optical cable.
You do not make a digital optical cable connection between the TV and the unit in the following cases:
If your TV supports Audio Return Channel (ARC)
If you will receive TV broadcasts only from the set-top box
If you connect a TV that supports HDMI Control to the unit with an HDMI cable, you can control the unit’s
power and volume with the TV’s remote control.
To use HDMI Control and ARC, you need to configure the HDMI settings on the unit. For
details on the settings, see “Information on HDMI” (p.129).
Component/composite video connection
When connecting any video device with a component video cable, connect the TV to
the MONITOR OUT (COMPONENT VIDEO) jacks.
When connecting any video device with a video pin cable, connect the TV to the
MONITOR OUT (VIDEO) jack.
If you connect your TV to the unit with a cable other than HDMI, video input to the unit via HDMI cannot be
output to the TV.
Operations with TV screen are available only when your TV is connected to the unit via HDMI.
If you will receive TV broadcasts only from the set-top box, you do not need to make an audio cable
connection between the TV and the unit.
COMPONENT VIDEO connection (with a component video cable)
3 Connecting a TV
About Audio Return Channel (ARC)
ARC allows audio signals to travel both ways. If you connect a TV that supports ARC to the unit with a
single HDMI cable, you can output video/audio to the TV or input TV audio to the unit.
When using ARC, connect a TV with an HDMI cable that supports ARC.
AUDIO 1
AUDIO 2
OPTICAL
OPTICAL
COAXIAL
VIDEO
AV4
AV3
AV2
AV 1
(TV)
P
B
Y
P
R
VIDE
MO
HDMI
OUT
ARC
ANTENNA
(
RADIO
)
FM
AM
AV 5 AV 6
AV O UT
ZONE O
ZONE
DC OUT
TRIGGER OUT
REMOTE
5V
0.5A
12V
IN
OUT
0.1A
COMPONENT VIDEO
HDMI 1 HDMI 2
(
BD/DVD
)
VIDEO
HDMI
OUT
ARC
OPTICAL
O
O
HDMI
HDMI
HDMI
OPTICAL
AV4
(TV)
The unit (rear)
HDMI OUT jack
AV 4 (OPTICAL) jack
Audio output
(digital optical)
TV
HDMI input
AUDIO 1
AUDIO 2
OPTICAL
OPTICAL
COAXIAL
VIDEO
AV4
AV3
AV2
AV 1
(TV)
P
B
Y
P
R
COMPONENT
VIDEO
VIDEO
MONITOR OUT
P
B
Y
P
R
HDMI
OUT
ARC
ANTENNA
(
RADIO
)
FM
AM
AV 5 AV 6
AV OUT
ZONE OUT
ZONE 2
DC OUT
TRIGGER OUT
REMOTE
5V
0.5A
12V
IN
OUT
0.1A
COMPONENT VIDEO
HDMI 1 HDMI 2 HDMI 3
(
BD/DVD
)
VIDEO
P
R
P
B
Y
COMPONENT
VIDEO
P
R
P
B
Y
P
R
P
B
Y
COMPONENT
VIDEO
TOR OUT
P
B
Y
P
R
OPTICAL
O
O
OPTICAL
AV4
(TV)
The unit (rear)
MONITOR OUT
(COMPONENT VIDEO)
jacks
Video input
(component video)
AV 4 (OPTICAL) jack
Audio output
(digital optical)
TV
