Yamaha BANSHEE - Carburetor Setting Chart

8-20

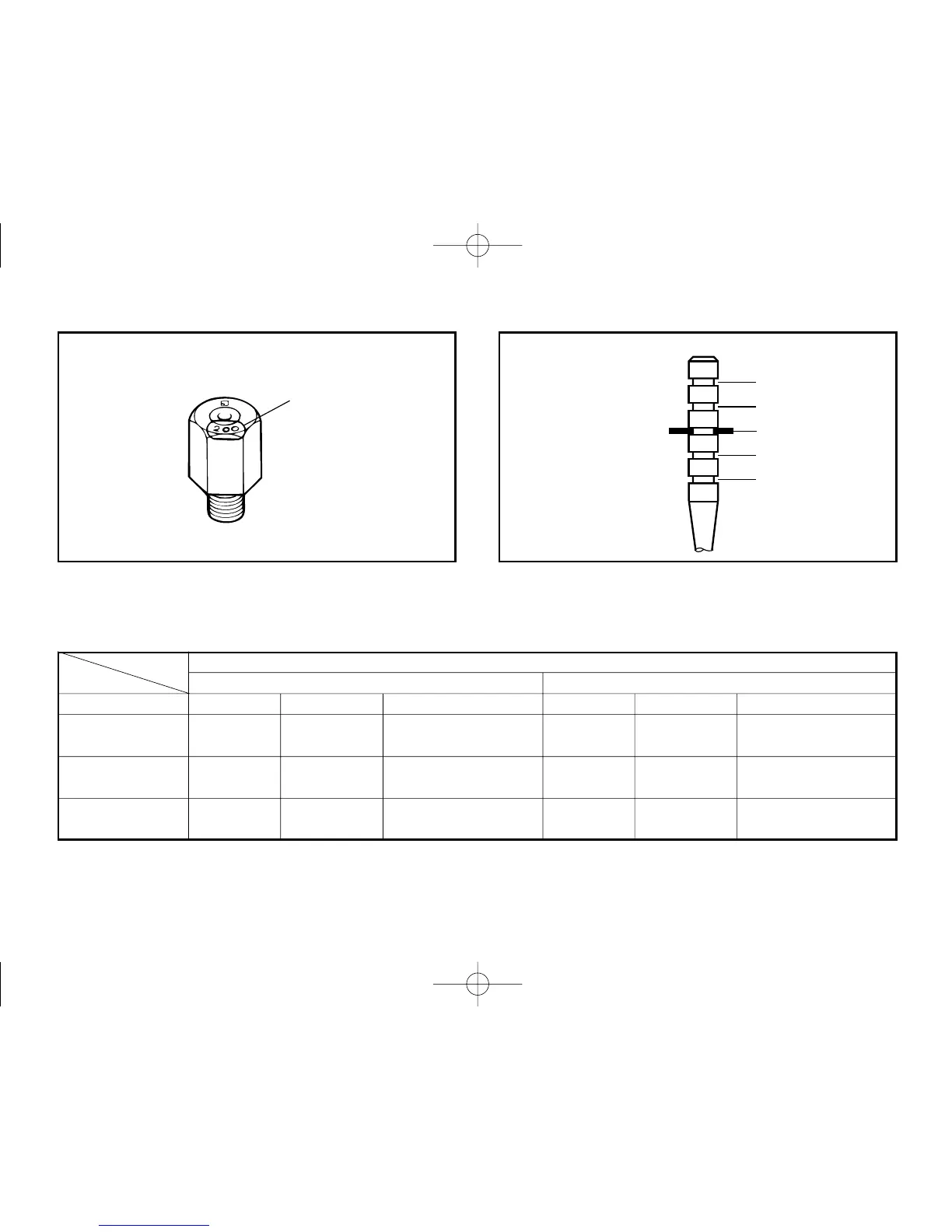

Carburetor setting chart
q
1st groove
2nd
3rd
(
Standard
)
4th
5th
Jet needle clip position
1. Main jet number
Altitude
0–1,500 m (5,000 ft) Above 1,500 m (5,000 ft)
Temperature Main jet Jet needle Pilot air screw Main jet Jet needle Pilot air screw
Above 0°C
#200 3rd groove 2.0 turns out #190 3rd groove 2 1/2 turns out
(32°F)
+5°C
–
–15°C
#220 3rd groove 1 1/2 turns out #200 3rd groove 2.0 turns out
(41°F) (5°F)
–10°C
–
–30°C
#240 4th groove 1 1/2 turns out #220 3rd groove 1 1/2 turns out
(14°F) (–22°F)
