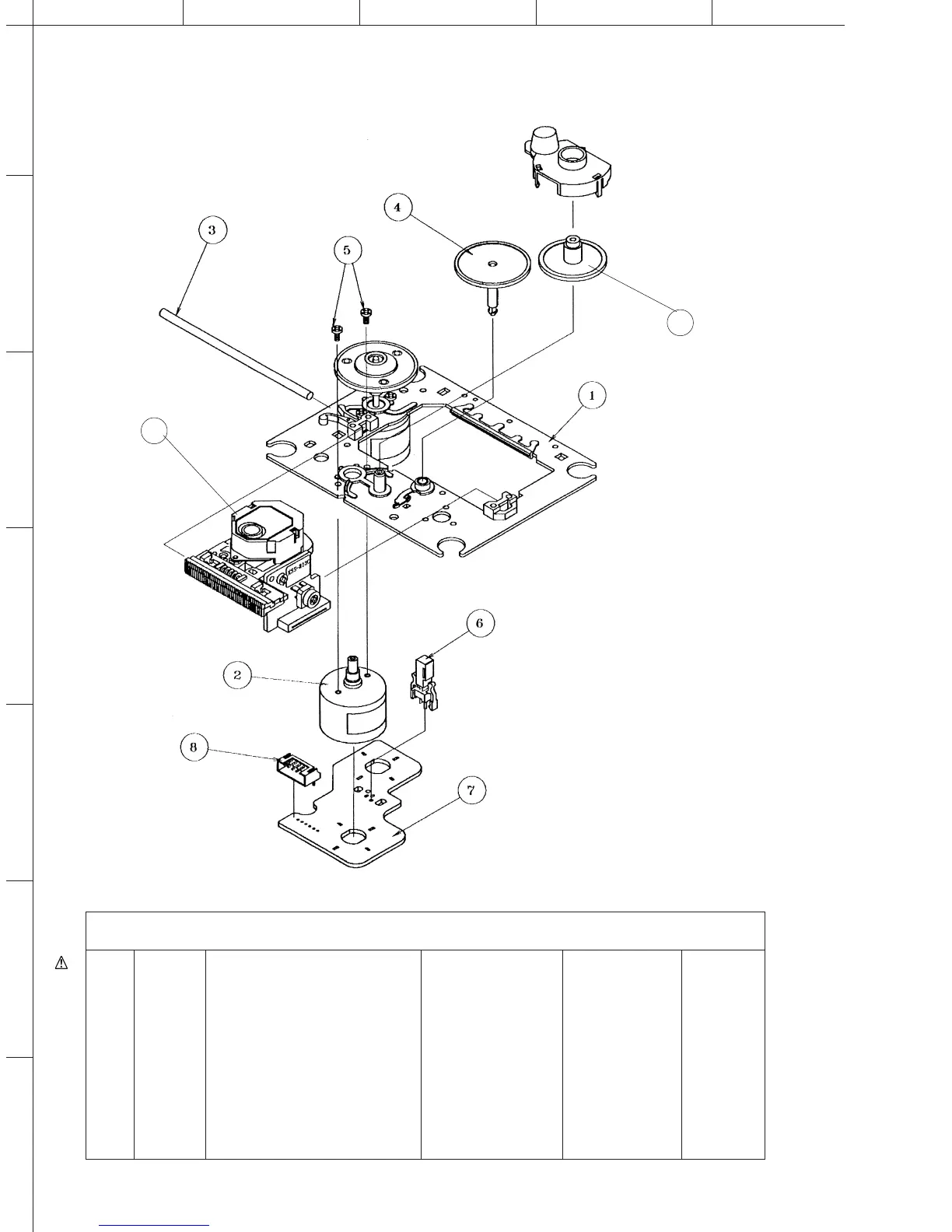

EXPLODED VIEW
(Drive Unit)
1
2
3
4
5
6
7
33
9
Ref.
No. PART NO. Description Remarks Markets
New Parts
*
1 NX635420 MOTOR CHASSIS ASS'Y (MB) X26258771
2 CX679710 MOTOR GEAR ASS'Y X26257691
3 AX623980 SLED SHAFT 262690801
4 CX679720 GEAR, A (S) 262690701
5 EA020036 PAN HEAD SCREW 2x3 ZMC2-Y 762125515
6 KX604660 LEAF SWITCH 157208511
7 NX613040 PWB, MOTOR MOTOR 6P 163967812
8 LX610120 CONNECTOR PIN 6P 156472211
9 CX680030 GEAR 262700301
10 NX636020 OPTICAL HEAD KSS213C
CDX-596
ABCDE
10
