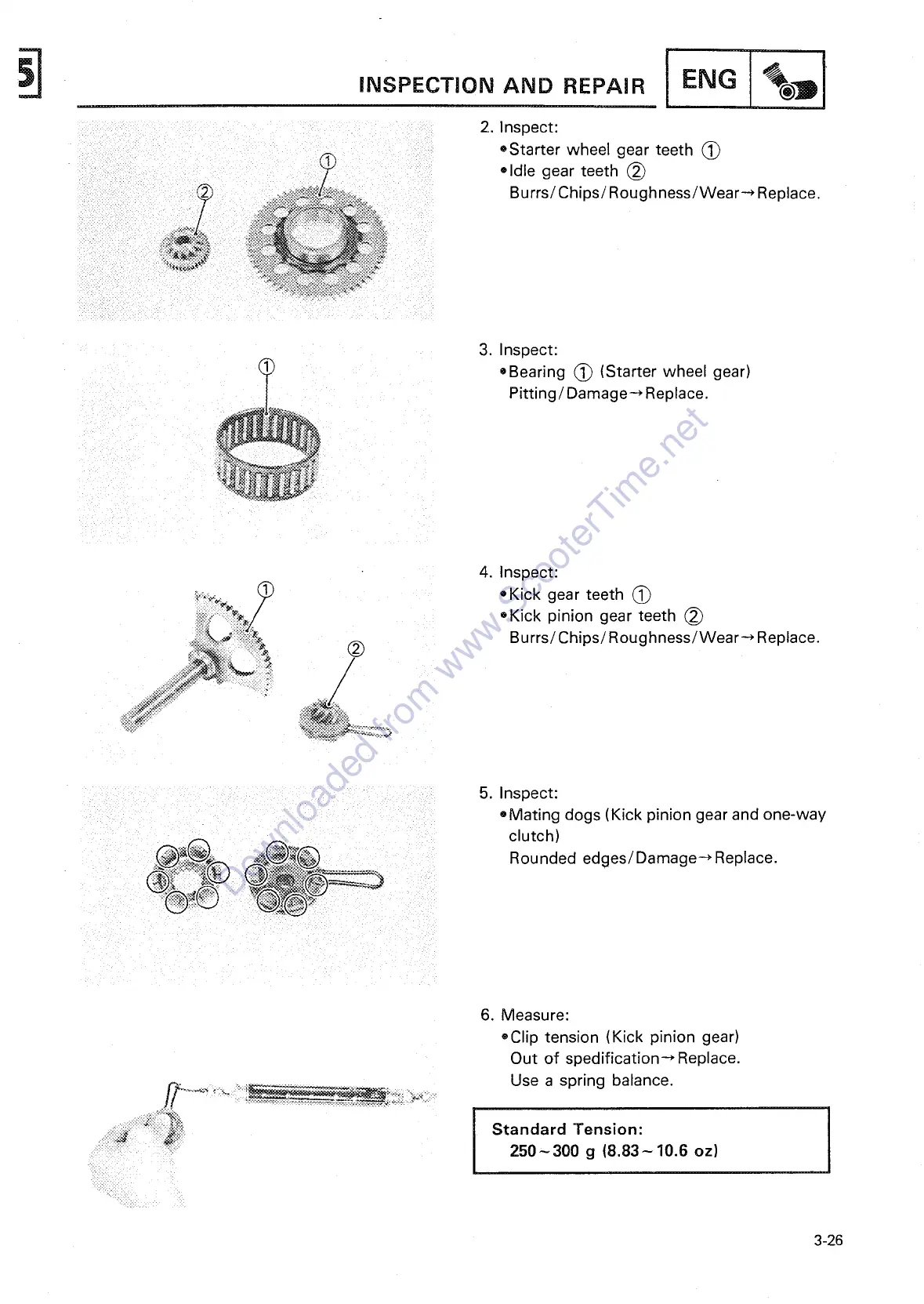

,osooAoo.EPA,.!ENOI I
2. Inspect:
oStarter wheel gear teeth (_
oldie gear teeth (_)
Burrs/Chips/Roughness/Wear-* Replace.
3. Inspect:
_Z(_ oBearing (_) (Starter wheel gear)
Pitting/Damage--* Replace.
4. Inspect:
_ ®Kick gear teeth (_
oKick pinion gear teeth (_)
(_ Burrs/Chips/Roughness/Wear-* Replace.
/
; /
5. Inspect:
oMating dogs (Kick pinion gear and one-way
clutch)
Rounded edges/Damage_ Replace.
6. Measure:
eClip tension (Kick pinion gear)
Out of spedification-*Replace.
f,]_ _ :_ Use a spring balance.
Standard Tension:
250- 300 g (8.83- 10.6 oz)
3-26
