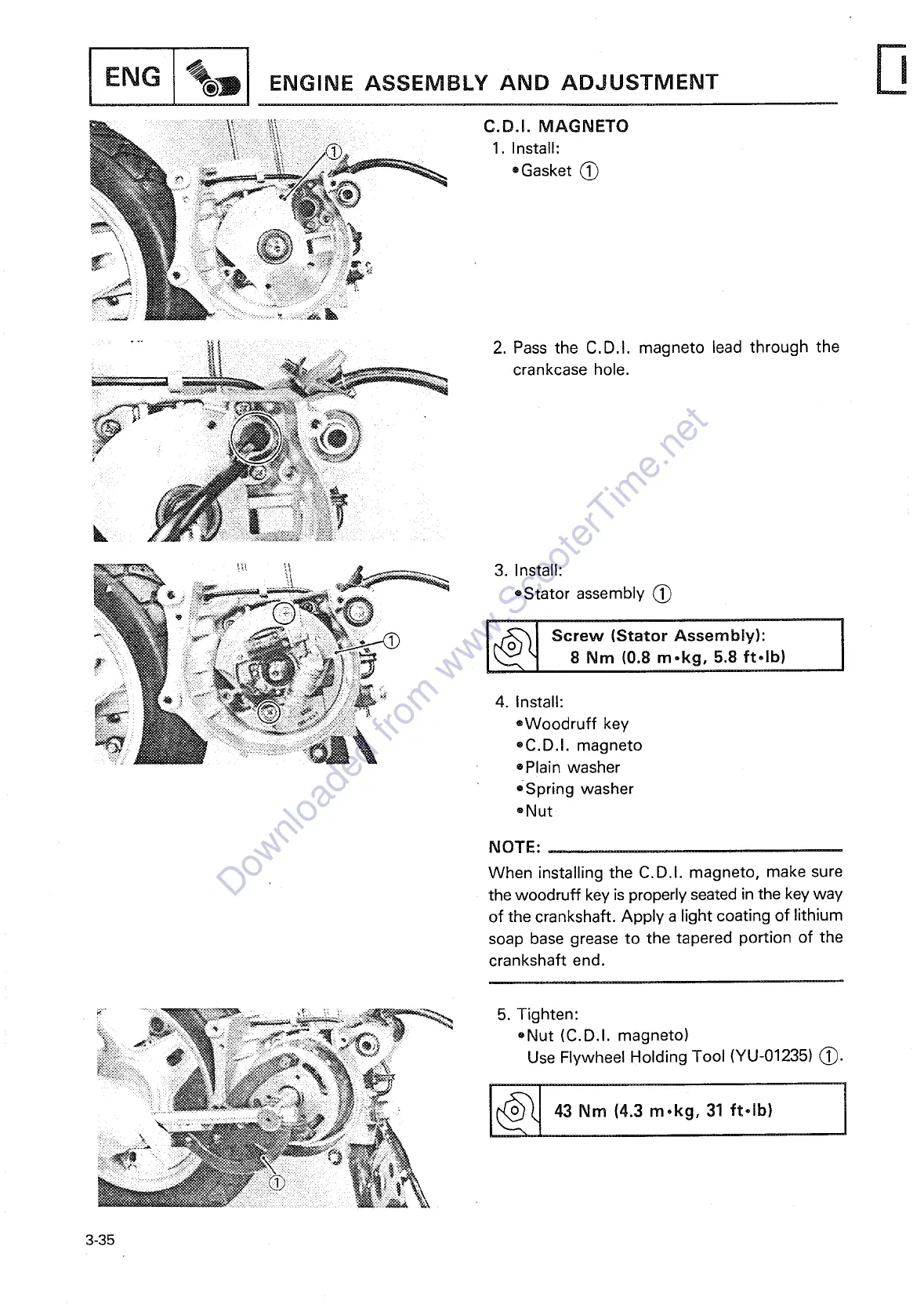

[ ENG '_®_D] ENGINE ASSEMBLY AND ADJUSTMENT h
C.D.I. MAGNETO
1. Install:
eGasket (_
• ,.,_*'_
, .:.:z,.:.,
2. Pass the C.D.I. magneto lead through the
crankcase hole.
'"_ 3. Install:
eStator assembly (_)
!_ Screw (Stat°r Assemb'y): I
_ 8 Nm (0.8 m,kg, 5.8 ftolb)
_ 4. Install:
_.......... ®Woodruff key
_, *C.D.I. magneto
• Plain washer
,_Spring washer
_Nut
NOTE:
When installing the C.D.I. magneto, make sure
the woodruff key is properly seated in the key way
of the crankshaft. Apply a light coating of lithium
soap base grease to the tapered portion of the
crankshaft end.
_" _:_._, 5. Tighten:
,i:_ ®Nut (C.D.I. magneto)
Use Flywheel Holding Tool (YU-01235) (_.
...... 141 I
43 Nm 14.3 m°kg, 31 ft°lb)
3-35
