Getting Started
Content and Component Overview
Depending on the system you have purchased, you will find the following
content in the box:
CS-700AV, CS-700SP
CS-700 Sound/Camera Unit
Wall Mounting Bracket
Region Specific Power Cord
Power Supply
Ethernet Cable
USB Cable
Instructions
CS-700 Unit

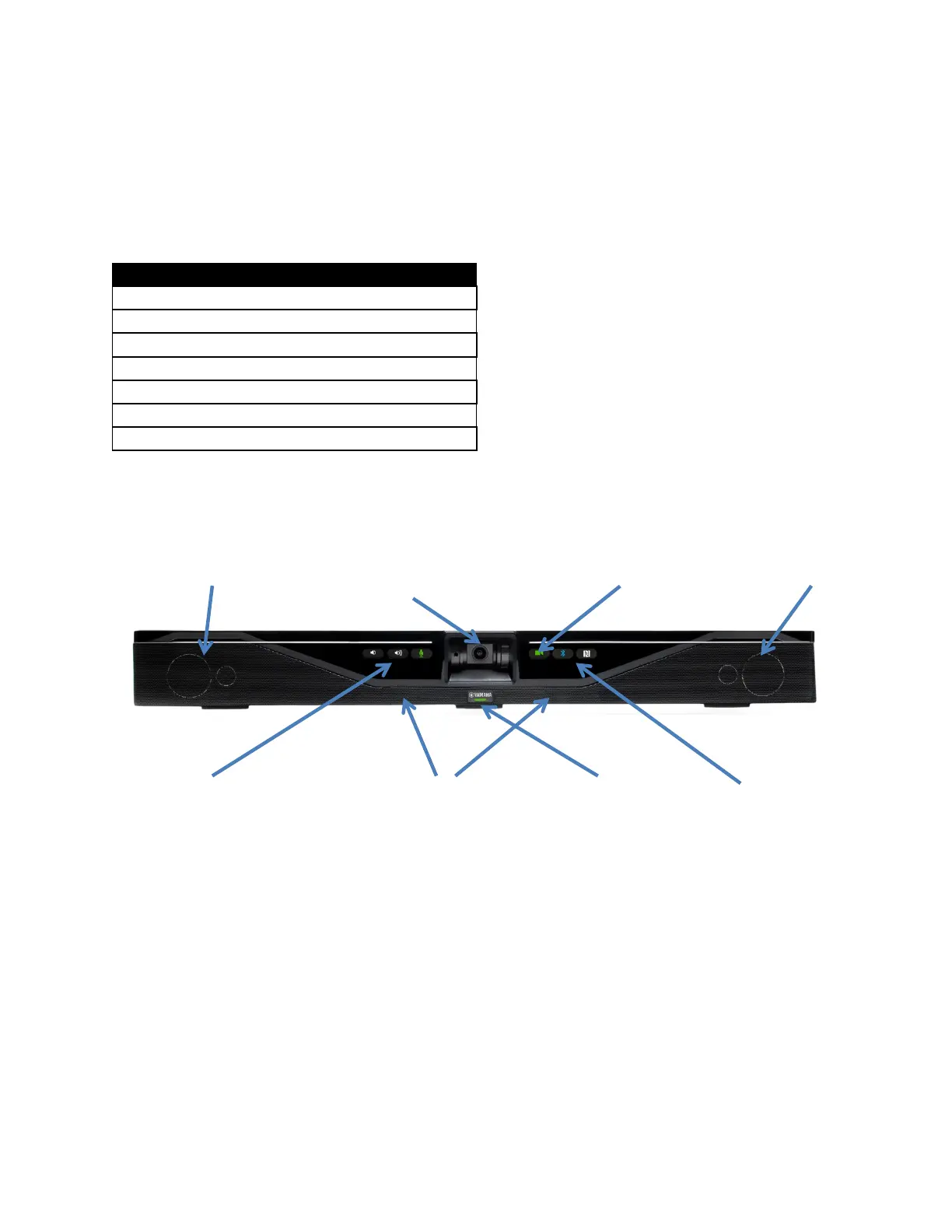

The main CS-700 Unit contains all the major components of the CS-700
System, including 4 Speaker Elements, 4 beam forming microphones, the
optimized 120° FoV HD camera, and front-panel control buttons for: volume
up/down, MIC mute, Camera mute, Bluetooth pairing, NFC Bluetooth pairing.
A system status indicator shows state of the system.
Volume Control & Mute
The speaker volume can be increased or decreased using the volume up and
volume down buttons. The microphones are muted using the mute button.
The mute/unmute button is only functional when microphones are activated.
120° FoV
Camera
Speaker Elements
Beam-Forming
Microphones
Volume & Mute
Controls
Speaker Elements
Camera Mute
Bluetooth Pairing &
Status + NFC Pairing
System
Call Status
