32

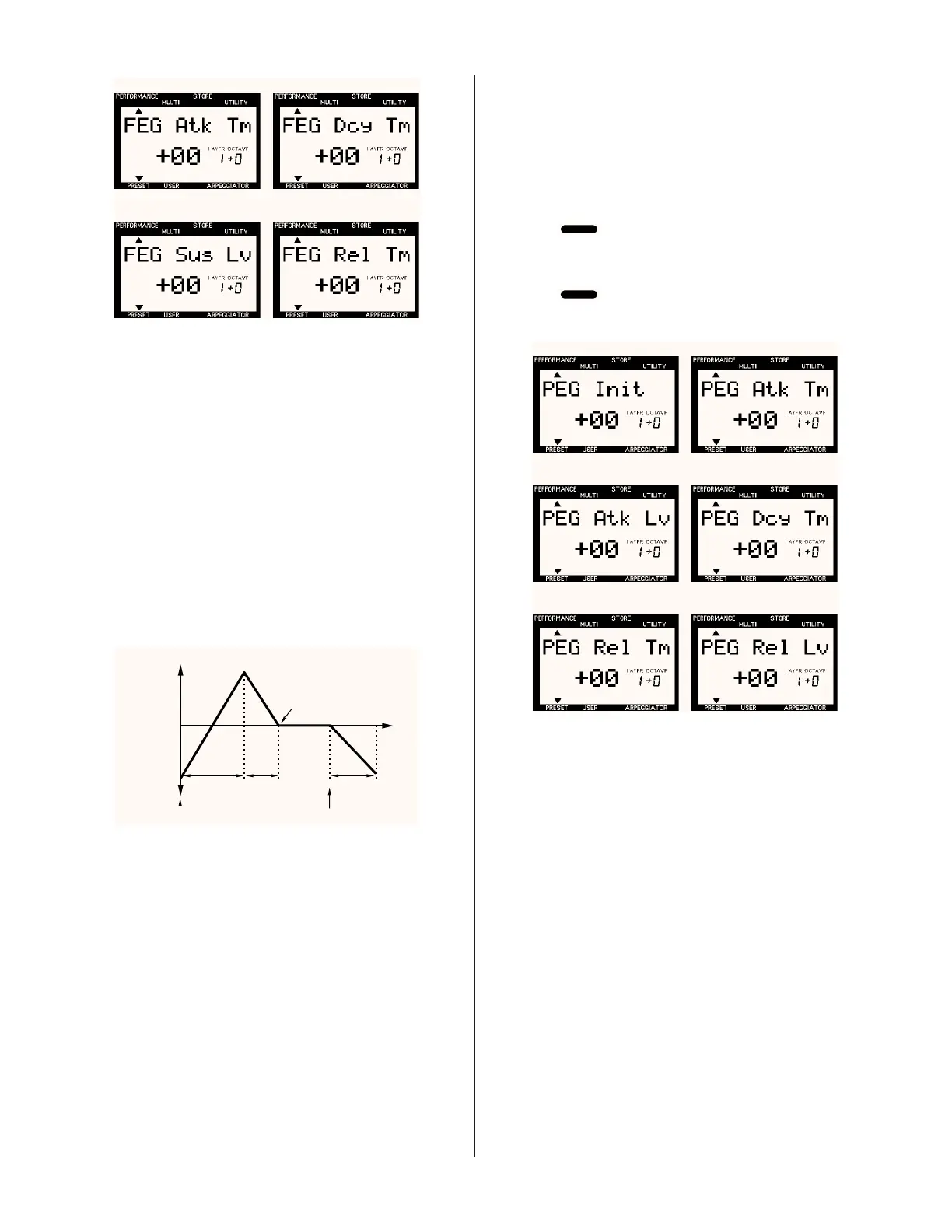

PEG (Pitch Envelope Generator)
This sets the PEG (Pitch Envelope Generator). The PEG lets you
shape how the pitch of the voice changes over time, from when
a key is hit, then released, and how the sound decays. There are
six parameters: INIT LEVEL (Initial Level), ATK TIME (Attack Time),
ATK LEVEL (Attack Level), DCY TIME (Decay Time), REL TIME
(Release Time) and REL LEVEL (Release Level).
Since the PEG simulates the change of the pitch envelope
curve over time, you can create an SFX type effect and the slight pitch
change of a wind instrument.
Depending on the voice selected, changing certain
parameters may not produce a noticeable effect.
INIT LEVEL (Initial Level): Sets the initial pitch level when a key is
played.
ATK TIME (Attack Time): Determines the time required for a
sound to reach its Attack Level after a note is played.
ATK LEVEL (Attack Level): Sets the initially targeted level after a
note is played.
DCY TIME (Decay Time): Determines the time required for a sound to
reach its basic pitch from Attack Level while the key is held.
REL TIME (Release Time): Determines the time it takes for the basic
pitch to reach the Release Level after the key has been released.
REL LEVEL (Release Level): Sets the last targeted level after the
key is released.
Initial Level Attack Time
Attack Level Decay Time
Release Time Release Level
NOTE
NOTE
ATK TIME (Attack Time): Determines the time required for a
sound to reach its maximum cutoff frequency level when a note
is played.
DCY TIME (Decay Time): Determines the time required for a
sound to reach its Sustain Level from a maximum level while the
key is held.
SUS LEVEL (Sustain Level): Sets the Sustain Level. The cutoff
frequency will be maintained at this level for as long as the key
is held.
REL TIME (Release Time): Determines the time it takes for the
cutoff frequency to reach the level preset for each voice after the
key has been released.
Settings:
ATK TIME (Attack Time): -63 ~ +63
DCY TIME (Decay Time): -63 ~ +63
SUS LEVEL (Sustain Level): -64 ~ +63
REL TIME (Release Time): -63 ~ +63
Key On
CUTOFF
FREQUENCY
Key Off
ATK TIME REL TIME
DCY TIME
TIME
LEVEL
SUS
LEVEL
Attack Time Decay Time
Sustain Level Release Time
