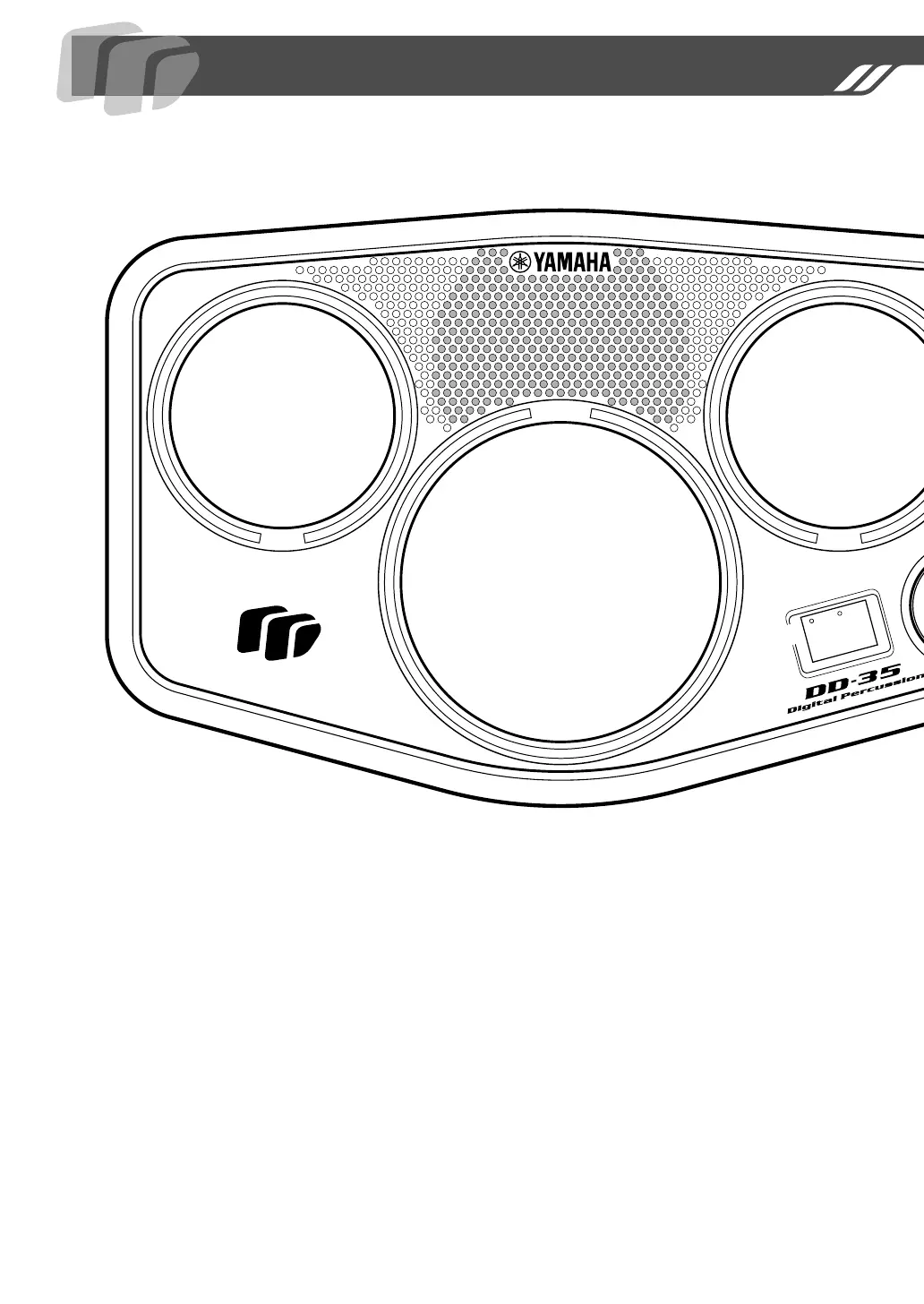

Front Panel
Front Panel
q
DISPLAY ........................................................ 10
w
DIAL ................................................................. 8
e
PAD button .................................................... 11
r
KIT button ..................................................... 10
t
SONG button..................................... 12, 14, 15
y
TEMPO/TAP button................................. 13, 14
u
DRUM GAME button..................................... 15
i LIGHT ON/OFF button.................................. 14
o
HAND PERC button...................................... 10
!0
START/STOP button ..................... 8, 12, 13, 15
!1
DEMO button .................................................. 8
!2
VOLUME [ ▲ ], [ ▼ ] buttons.............................. 8
!3
STANDBY/ON Switch ..................................... 8
!4
Drum Pads (x4) ............................................... 9
Side Panel (Right)
!5
PHONES/OUTPUT Jack..................................7
!6
DC IN 12V (AC Adaptor) Jack ........................5
88
