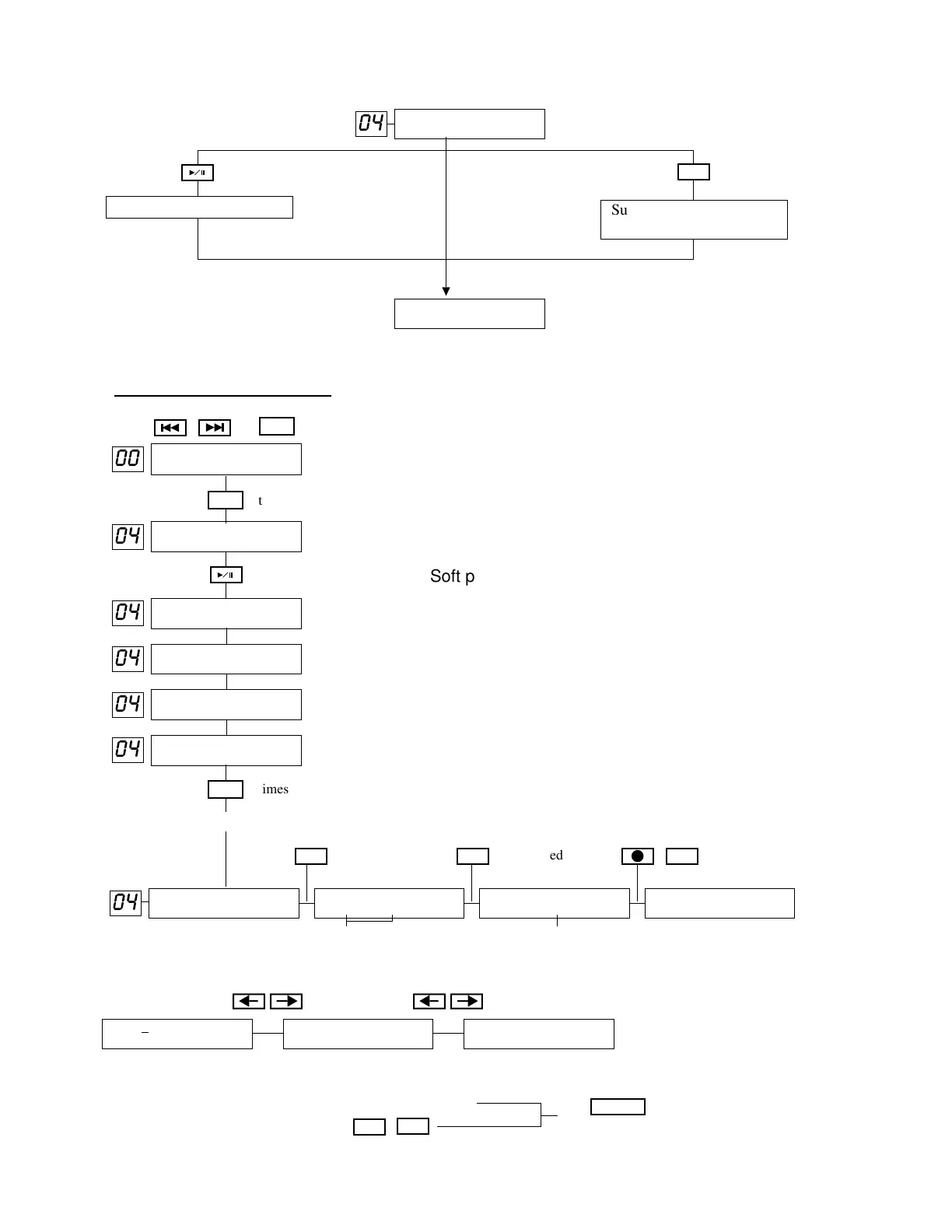

Maintenance mode 04 Flow chart
** SOFT PEDAL **
** MEASUREMENT *
04
Sustain pedal stroke end
compensation [MIDI 7Fh]
END!
Play
Soft pedal measurement
FUNC
4. Soft pedal measurement
* MAINTENANCE *
*** MODE GP **
** SOFT PEDAL **
** MEASUREMENT *
SOFT MEASURE
Pow=XXX Pos=XXX
SOFT MUTE=XXX
XXX XXX XXX XXX
END!
* MAINTENANCE *
*** MODE GP ***
+
Power
00
R
4 times
04
04
04
04
04
R
4 times
Soft pedal measurement
Pow: Drive power applied to solenoid
Pos: Current position of the pedal
Soft pedal range display
PASS number display
Take appropriate action corresponding to the PASS number, if it is
displayed after measurement.
See page 28
Playback stroke end value [MIDI 7Fh] compensation
Parameter value manual compensation (soft pedal)
** SOFT PEDAL **
** MEASUREMENT *
SOFT MIDI 7Fh
XXX -> XXX (PED)
SOFT MIDI 7Fh
XXX -> YYY (PED)
END!
04
FUNC
P
Depress pedal fully
Playback Models
Measured data A New data B
DRIVE
Restore the data
XXX Original (measured) parameter value Restore the data : Press REC button
YYY New value
ZZZ Operation mode (PED) :by depressing the pedal
(DIAL) :by ,
SOFT MIDI 7Fh
XXX -> YYY (ZZZ)
SOFT MIDI 00h
XXX -> YYY (ZZZ)
SOFT TIMING
XXX -> YYY (ZZZ)
–/NO
+
/YES
Parameter value switch button
ENTER
Use to toggle between
these two modes.
To Next Page
