Step 3. The screws on each shank stopper
section give the fine hammer stop
positioning and eliminate uneven-
ness in the same section.
Step 4. Normally the shank stopper position is set correctly in the factory.

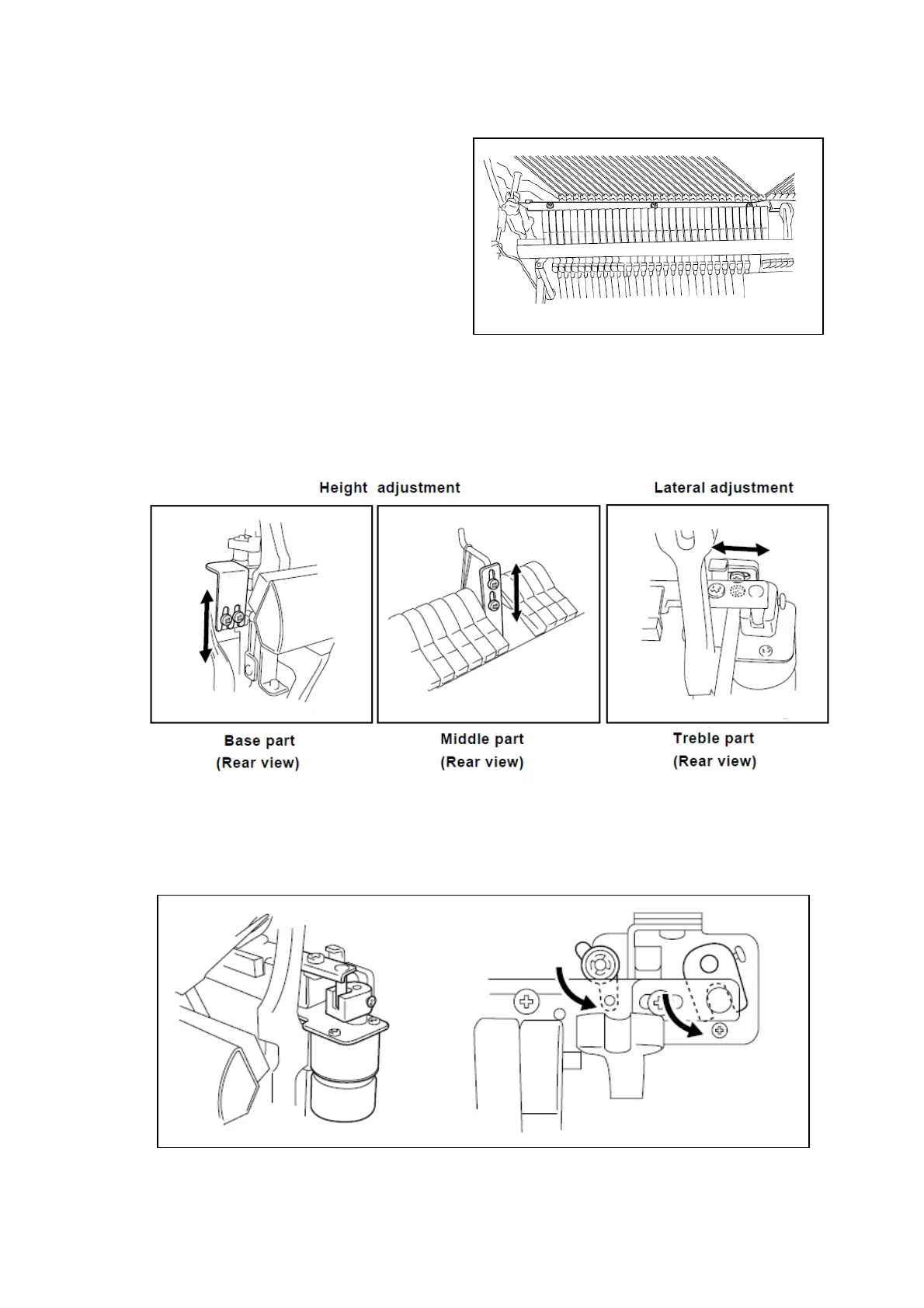

The height adjustment and lateral adjustment can be done as following drawings.
OK Step 2.
Step 5. Motor drive (MD) unit for the quiet function is located on the right action bracket.
