Yamaha DM2000 Supplementary Guide

3

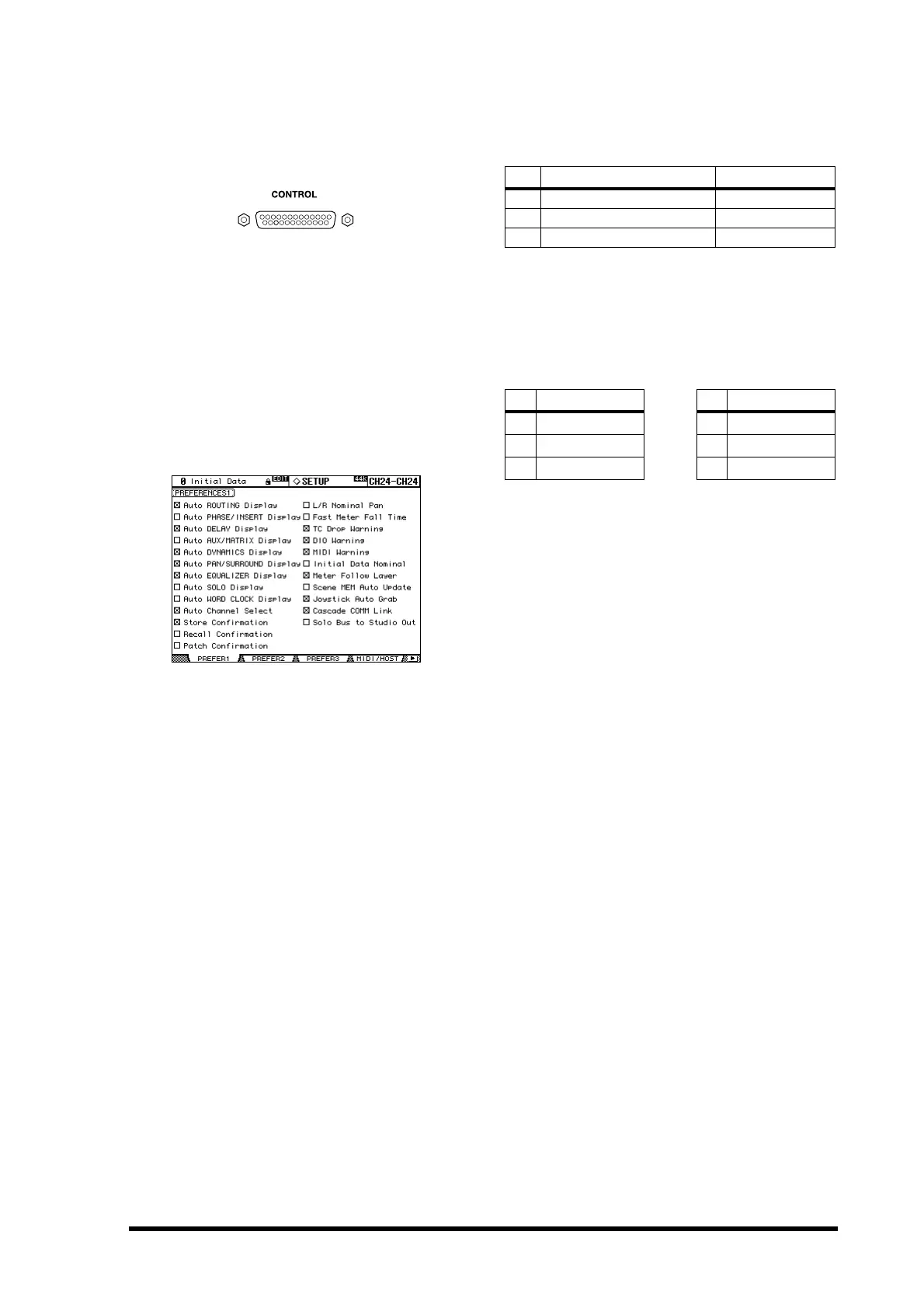

Dimmer & Talkback Control via the
CONTROL Port
The Control Room and Surround Monitor Dim-
mers, and the Talkback function can now be con-
trolled remotely via the CONTROL port.
Each time the GPI0 input (pin 22) goes Low
(ground), Talkback is turned on or off. Each time the
GPI1 input (pin 10) goes Low (ground), the Dim-
mer is turned on or off.
Solo to Studio Out
With the new Solo Bus to Studio Out preference on
the Preferences 1 page, which can be selected by
using the DISPLAY ACCESS [SETUP] button,
soloed channels can now be monitored through the
STUDIO MONITOR OUT.
When the Solo Bus to Studio Out preference is on,
and all the STUDIO signal source buttons in the
MONITOR section are off (i.e., [CONTROL
ROOM], [STEREO], [AUX 11], and [AUX 12]), the
Solo signal is output by the STUDIO MONITOR
OUT when channels are soloed.
User Defined Keys
The following items have been added to the list of
functions that can be assigned to the USER
DEFINED KEYS.
Functions are assigned to the USER DEFINED KEYS
on the USER DEFINED KEY ASSIGN page, which is
selected by using the USER DEFINED KEYS [DIS-
PLAY] button.
In addition, the following initial assignments of
USER DEFINED KEYS Bank A have changed.
# Function Display
161 Surr Lib. Recall +1 Surr Lib+1 RCL
162 Surr Lib. Recall –1 Surr Lib–1 RCL
163 Surr Lib. Recall No. XX Surr LibXX RCL
# Bank A # Bank A
1
SOLO ON —>
1
Surr Lib 0 RCL
2
No Assign —>
2
Surr Lib –1 RCL
3
No Assign —>
3
Surr Lib +1 RCL

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
