Chapter 4 Designer

DME Designer Owner’s Manual

277

Conﬁguration Window

The Conﬁguration window is used for arranging components on the sheet and making logical

connections. It is displayed when you double-click on a DME or SP2060.

■ Title Bar

Displays “Device Name (Zone Name).” The conﬁguration window for a DME64N placed in [Zone1]

will be “DME64N (Zone1).” The device name is set in the properties for the device placed in the

Zone window.

■ Objects

Objects such components, user modules, and shapes are arranged in the Conﬁguration window.

When you double-click a component placed in the window, the editor set in “Double Click Action”

in “User Module Properties” will open.

■ I/O Component

Depending on the settings for the DME placed in the Zone window, I/O components will be

automatically placed or added.

• I/O components can be arranged in the DME24N/DME8i-C/DME8o-C/DME4io-C and SP2060

conﬁguration window.

• When “Show Cascade Port” is ON in the DME64N “DME Device Properties” dialog, Cascade I/O

is added automatically.

• When you set a slot in the properties for a DME placed in the Zone window, Slot I/O will be

automatically added.

You cannot apply edit operations like cut/copy/paste/duplicate to I/O components, Slot I/O, and

Cascade I/O.

NOTE

SP2060 conﬁgurations cannot be edited.

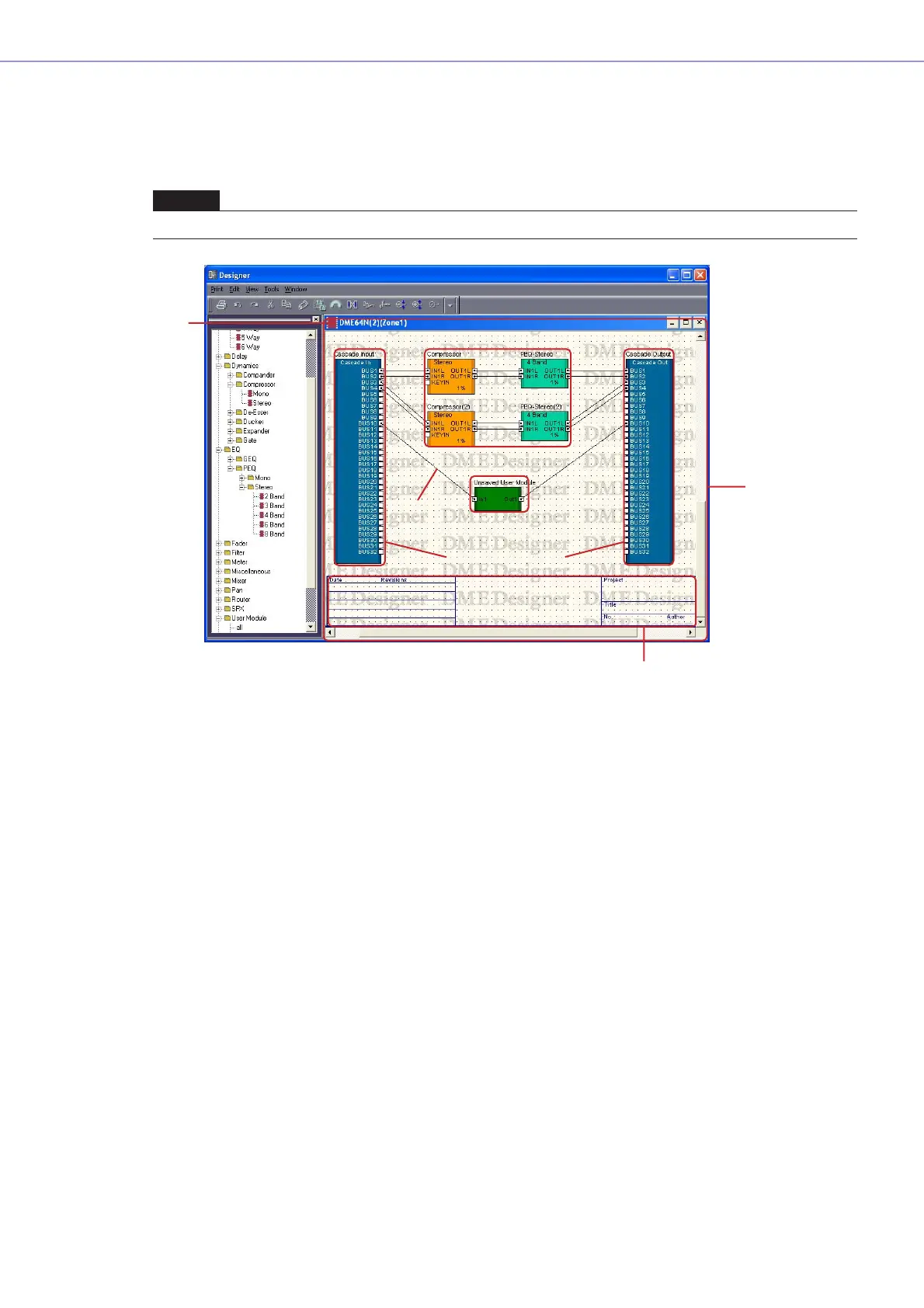

Tool Bar

Sheet

Legend

User Module

Component

Wire

I/O Component
