DIGITAL REVERB
Dr IOO

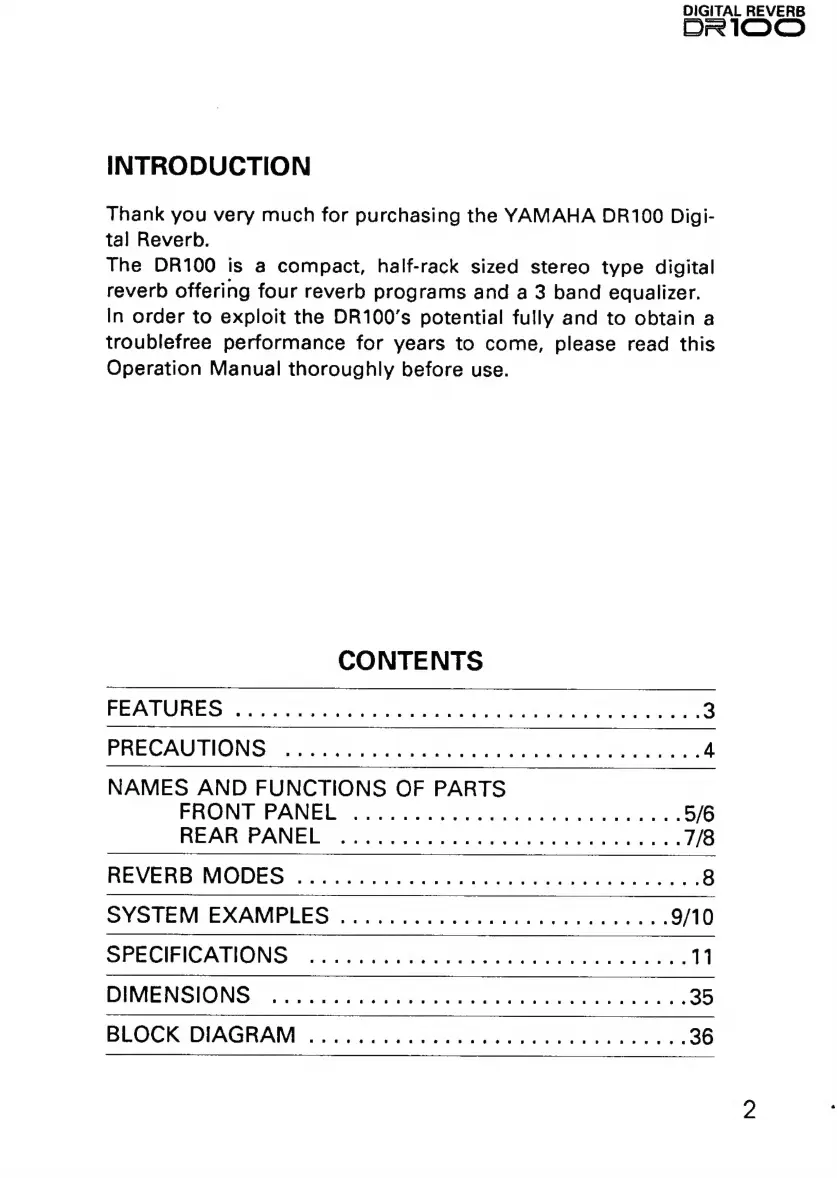

INTRODUCTION
Thank you very much for purchasing the YAMAHA DR100 Digi-
tal Reverb.
The DR100 is a compact, half-rack sized stereo type digital
reverb offering four reverb programs and a 3 band equalizer.
In order to exploit the DR100's potential fully and to obtain a
troublefree performance for years to come, please read this
Operation Manual thoroughly before use.
CONTENTS
FEATURES, we ee nacio US NALE RR LR c ab os 3
PRECAUTIONS: 22 inco vol rb den жуйеа какты 4
NAMES AND FUNCTIONS OF PARTS
FRONT PANEL. аа eaters awe 5/6
REAR PANEL. айшык раа t tios 7/8
REVERB MODES |. noses 99 а AC vb и ла E e 8
SYSTEM EXAMPLES 574i ens dicio ra E 9/10
SPECIFICATIONS: зана ааваас а 11
DIMENSIONS: оаа ea e eme e cé e 35
BLOCK DIAGRAM. и 3o a d AER Re n 36
