RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
23
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
No DIAG menu sub-menu
11. BSI (YSS) 3 (5 Byte)
12. BSI (YSS) 4 (4 Byte)
13. BSI (CS) 1 (5 Byte)
14. BSI (CS) 2 (5 Byte)
15. BSI (CS) 3 (5 Byte)
16. BSI (CS) 4 (5 Byte)
17. BSI (CS) 5 (1 Byte)
18. YSS938-1 (5 Byte)
19. YSS938-2 (5 Byte)
20. YSS938-3 (4 Byte)
21. CS49329 (3 Byte)
22. Mute Trigger (5 Byte)
12 DSP RAM CHECK 1. YSS938 BUS CHECK
2. PLD/CS BUS CHECK
13 SOFT SWITCH 1. SW MODE
2. MODEL SETTING
3. TUNER DESTINATION
4. TUNER EXIST
6. RDS EXIST
7. VIDEO FORMAT
14 ROM VERSION/CHECK SUM/ 1. VERSION
PORT 2. CHECK SUM ALL/PROGRAM
3. PORT
4. AAC PORT

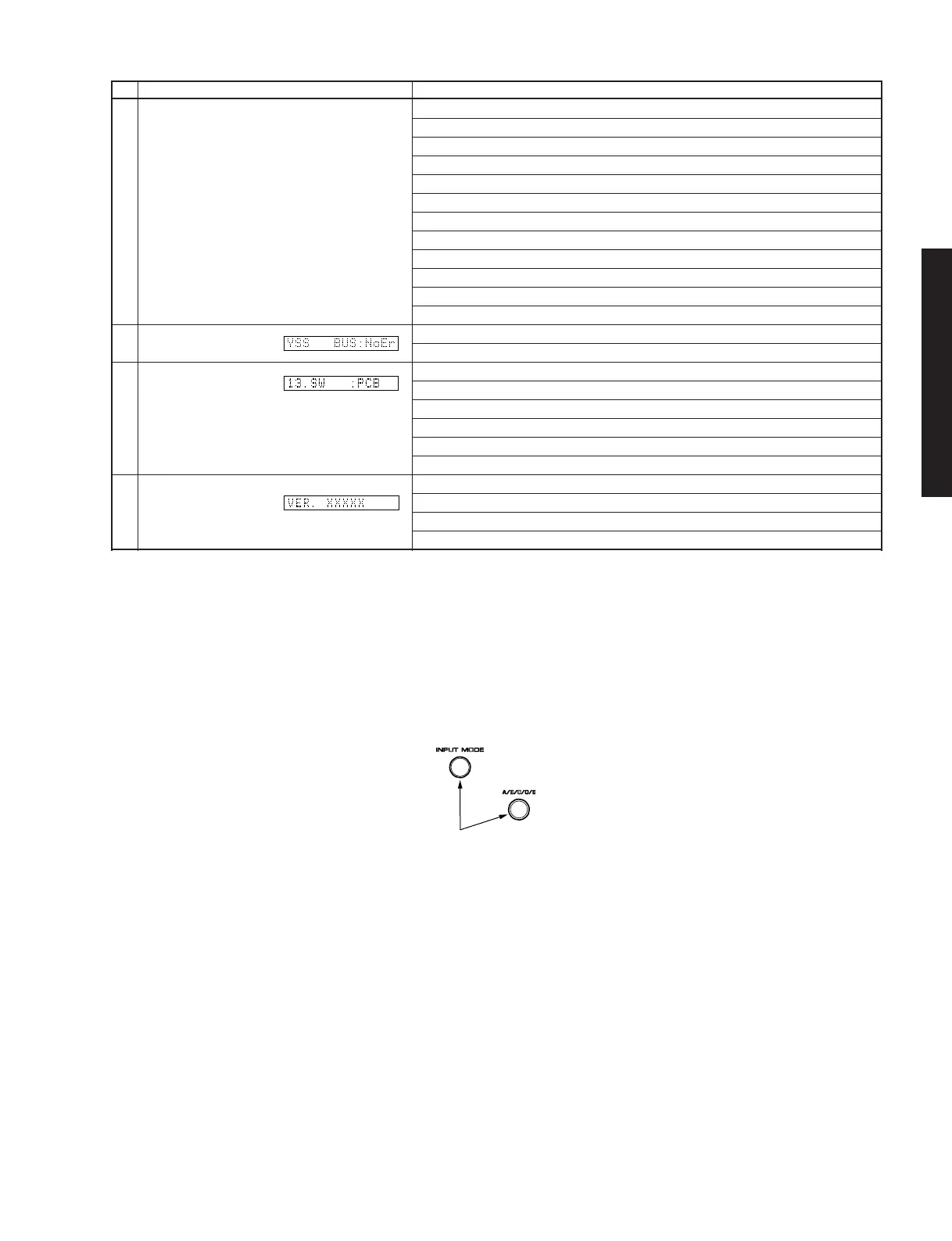

• Starting DIAG
Press the “STANDBY/ON” key while simultaneously
pressing those two keys of the main unit as indicated in the
figure below.
●ダイアグの起動
Keys of main unit
Turn on the power while pressing these keys.
• Starting DIAG in the protection cancel
mode
If the protection function works and causes hindrance to
trouble diagnosis, cancel the protection function as
described below, and it will be possible to enter the DIAG
mode. (The protection functions other than the excess
current detect function will be disabled.)
Press the “STANDBY/ON” key while simultaneously
pressing those two keys indicated in the figure above. At
this time, keep pressing those two keys for 3 seconds or
longer.
In this mode, the “SLEEP” segment of the FL display of the
main unit flashes to indicate that the mode is DIAG mode
with the protection functions disabled.
●プロテクション解除モードでの起動
To Next Page
