REMOTE CONTROL APPLICATIONS

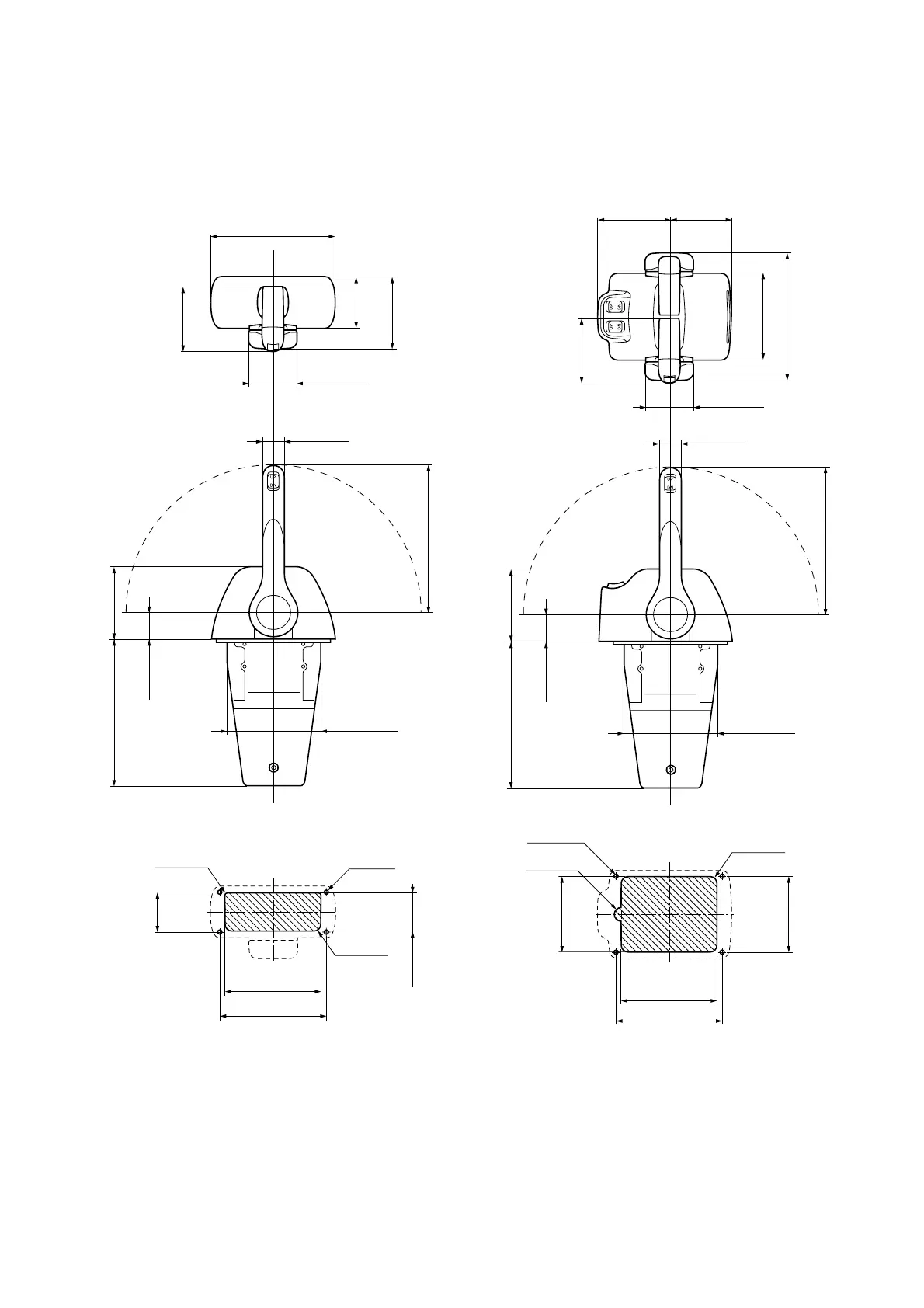

704 REMOTE CONTROL DIMENSIONS
Single lever Twin lever
212 (8.35) 106 (4.17)
33 (1.30)
70 (2.76)
94.5 (3.72)
74 (2.91)
105 (4.13)
179.5 (7.07)
55 (2.16)
153 (6.02)
138 (5.43)
6 (0.23)
8 (0.31)
10 (0.39)
57 (2.24)
135.2 (5.32)
39 (1.54)
213 (8.39)
mm (in.)
212 (8.35) 106 (4.17)
33 (1.30)
70 (2.76)
94.5 (3.72)
126 (4.96)
187.5 (7.38)
103.5 (4.07) 90 (3.54)
109.2 (4.29)
108 (4.25)
153 (6.02)
138 (5.43)
135.2 (5.32)
39 (1.54)
213 (8.39)
6 (0.23)
10 (0.39)
10 (0.39)
mm (in.)
