AC SWITCH (N.F.B.)
(for EF4600A/EF6600A)

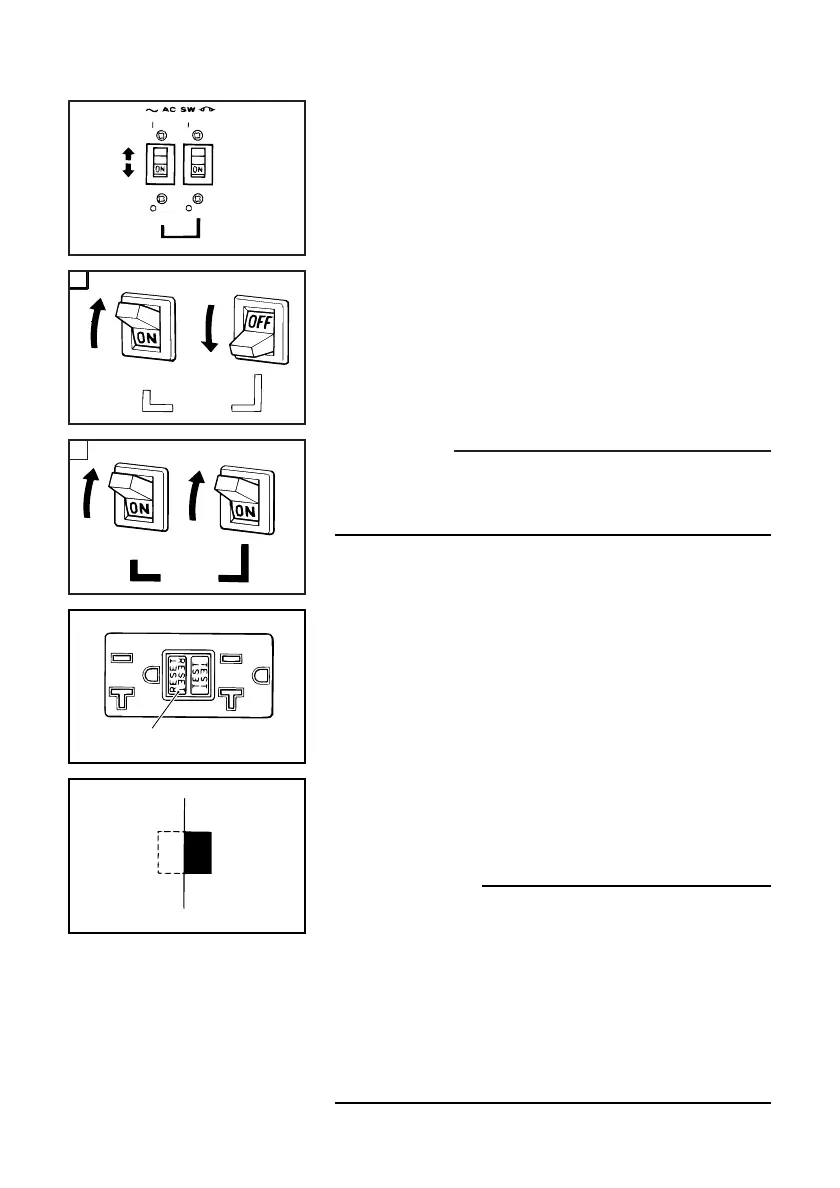

The AC switch (Non-Fuse Breaker) turns off auto-
matically when the load exceeds the generator
rated output.
1 I “ON”
2 1 “OFF”
A Supplies AC 120V
B Supplies AC120V and 240V
cC
Reduce the load to within specified generator
rated output if the AC switch (N.F.B.) turns off. If it
turns off again, consult a Yamaha dealer.
G-19302
G.F.C.I. SOCKET
(for EF4600A/EF6600A)
The G.F.C.I. (Ground Fault Circuit Interrupter) 1
shuts off power to the protected sockets if a
ground fault (electrical leak) is defected.
If the reset button 2 pops out 3, the equipment
plugged into the socket may be faulty. If this hap-
pens, check the equipment carefully. If the equip-
ment appears to be in good condition, press the
reset button firmly until a click is heard. This will
restore power. If the reset button pops out again,
unplug the equipment immediately. Have the
equipment inspected and repaired by a qualified
repairperson before attempting to use it again.
w
TO REDUCE THE CHANCE OF ELECTRICAL SHOCK:
9 Do not attempt to operate equipment if the
ground fault circuit interrupter reset button
pops out repeatedly during use.
9 Test the ground fault circuit interrupter during
the pre-operation checks according to the
maintenance instructions on page 24.
9 Remember that only sockets labeled “GFCI”
have ground fault circuit interrupter protec-
tion.
