Yamaha EF2600A - G.f.C.I. Socket Test

711-0***
q
w
w
q

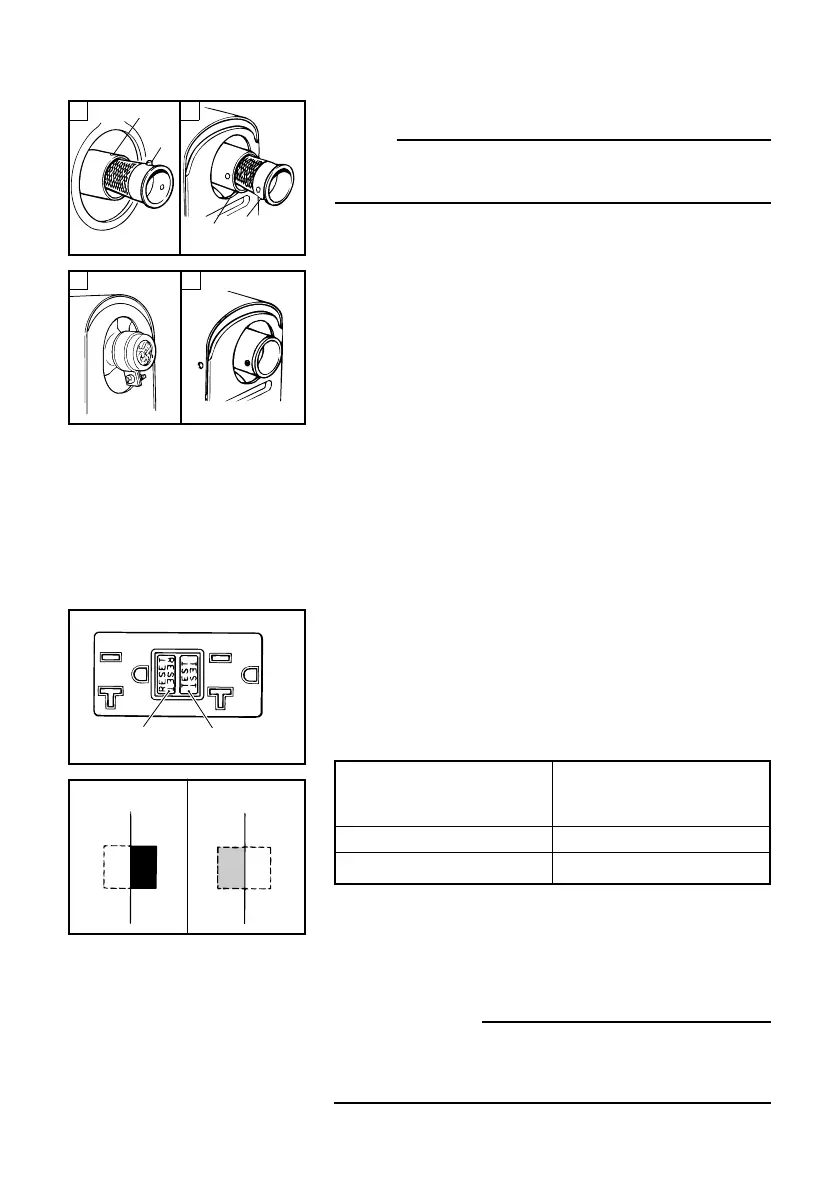

6. Install the spark arrester.
NOTE:
Align the spark arrester projection with the hole in
the muffler pipe.
1 Projection
2 Hole
A for EF2600A
B for EF4600A/EF6600A
7. Install the muffler screen. (only for EF2600A)
– 24 –
711-020a**
e r
763-059
763-083a
w
q
G-69601
G.F.C.I. SOCKET TEST
(for EF4600A/EF6600A)
1. Start the engine.
2. Turn the AC switch (N.F.B.) to the “ON” posi-
tion.
3. Press the test button 1, then check the posi-
tion of the reset button 2.
4. If G.F.C.I. operation is correct, push in the reset
button.
If the G.F.C.I. operates incorrectly, consult a
Yamaha dealer.
w
Do not operate the generator with a faulty G.F.C.I.
circuit. Electric shock could occur. Have the gener-
ator repaired by a qualified mechanic.
G.F.C.I. Reset
Button Position
after Test
G.F.C.I. Socket
Operation
Pop Out 3 Correct
Stay In 4 Incorrect
A B
A B
