– 26 –

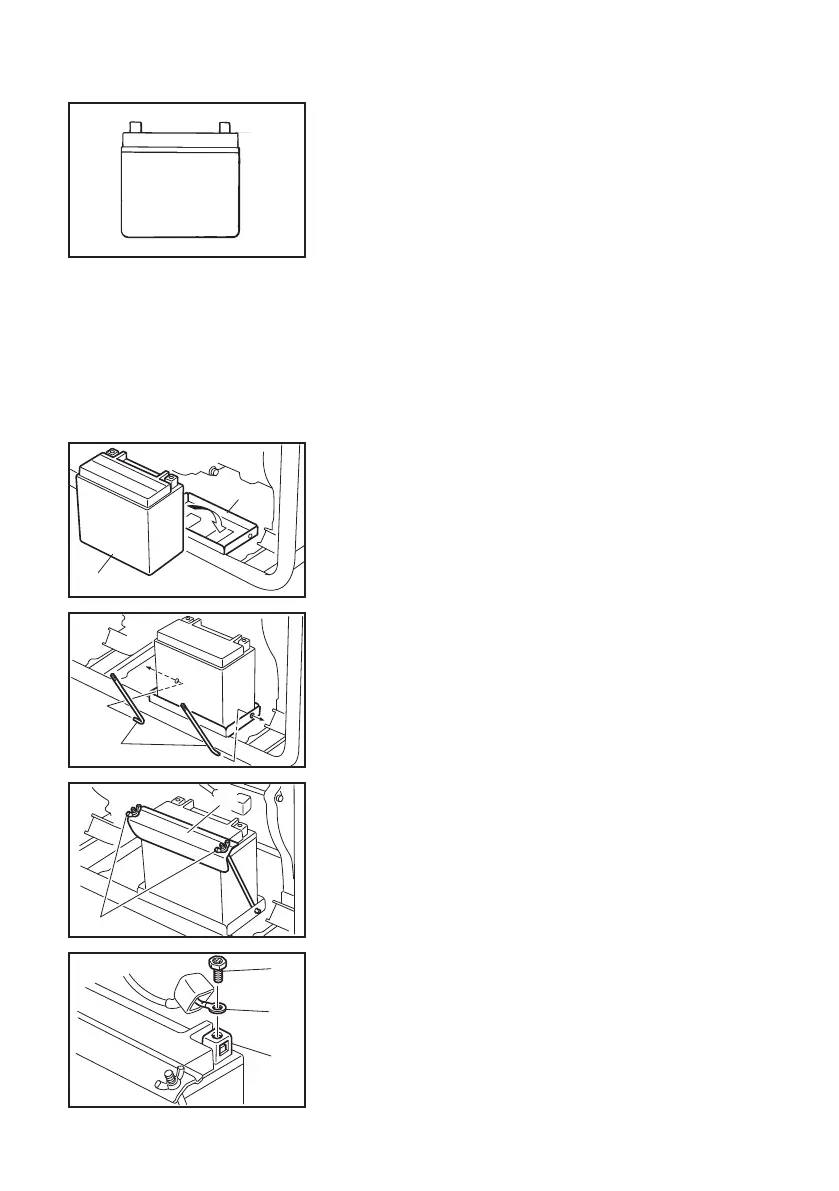

Installation
1. Turn the engine switch to “5” (STOP) to prevent
accidental short circuiting.
Battery (For EF5500DE)
(See page 48 for more details)
This generator is designed to be equipped with a
VRLA (Valve Regulated Lead Acid) battery. There is
no need to check the electrolyte or to add distilled
water.
1
2
3
4
5
2. Place the battery on the battery mount tray.
1 Battery
2 Battery mount tray
3. Install the battery mounting rods and battery
mounting plate, and then install and tighten the
wing nuts.
3 Battery mounting rod
4 Wing nut
5 Battery mounting plate
8
6
7
4. Connect the positive lead (Red) to the positive (+)
battery terminal.
6 Screw
7 Positive lead (Red)
8 Positive battery terminal
7P5-F8199-14.indd 26 2021/06/23 11:22:16
