FUEL MANAGEMENT GAUGE

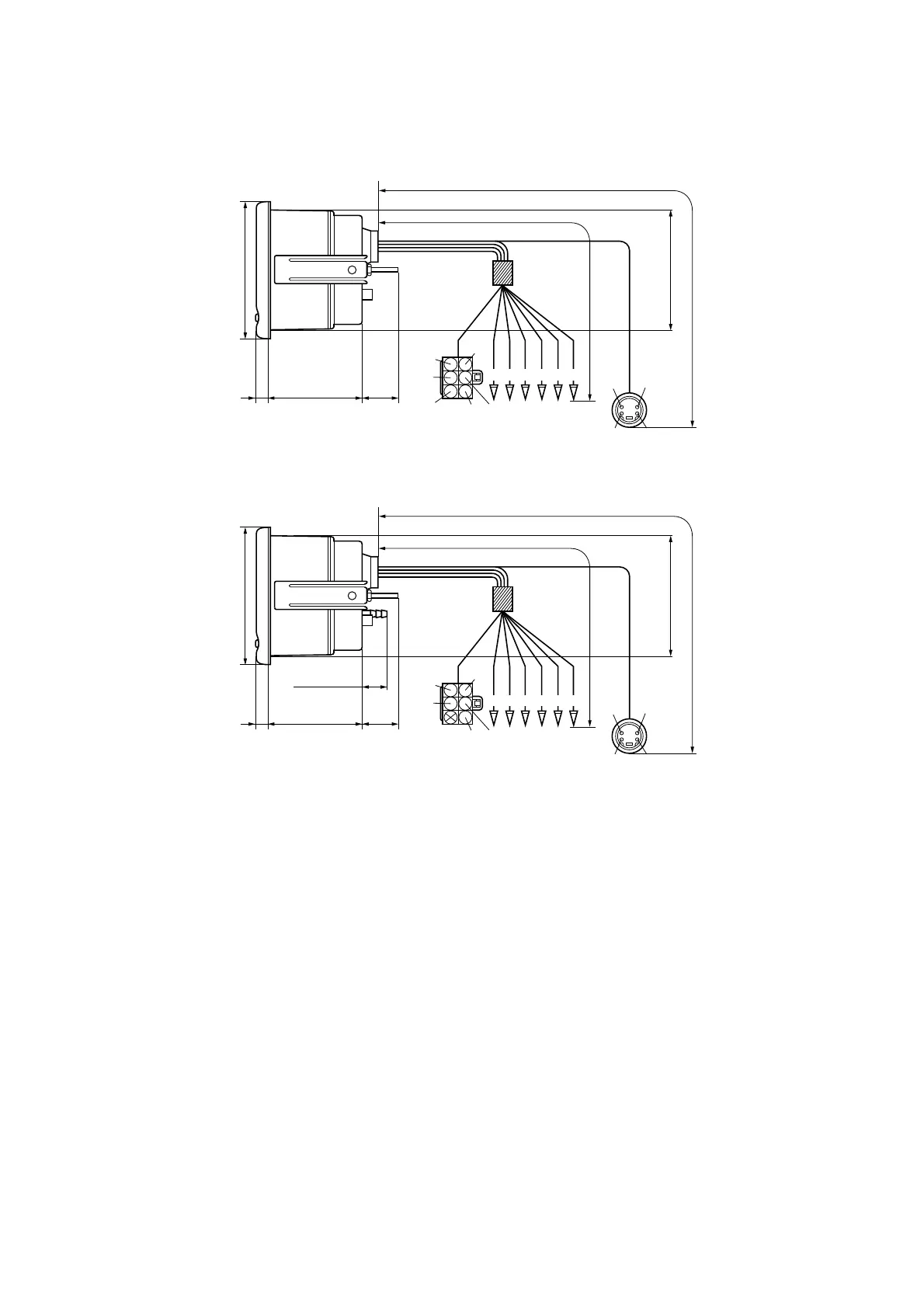

FUEL MANAGEMENT GAUGE DIMENSIONS
Fuel management gauge (Ref.
No. 1)
Fuel mgt gauge with speedometer (Ref. No. 2)
97 (3.82)
8.5 (0.33)
25 (0.98)
65.5 (2.58)
84.5 (3.33)
310 (12.2)
210 (8.27)
Pu
Or
Or
Pu/W
W/R
B
R
Y
B
L
G
G/W
X
R
W
B
mm (in.)
97 (3.82)
8.5 (0.33)
25 (0.98)
65.5 (2.58)
16.9 (0.66)
84.5 (3.33)
310 (12.2)
210 (8.27)
Pu
Or
Or
Pu/W
B
R
Y
B
L
W
X
X
W
X
B
mm (in.)
176
178
