Yamaha F115B Rigging Guide

5-32

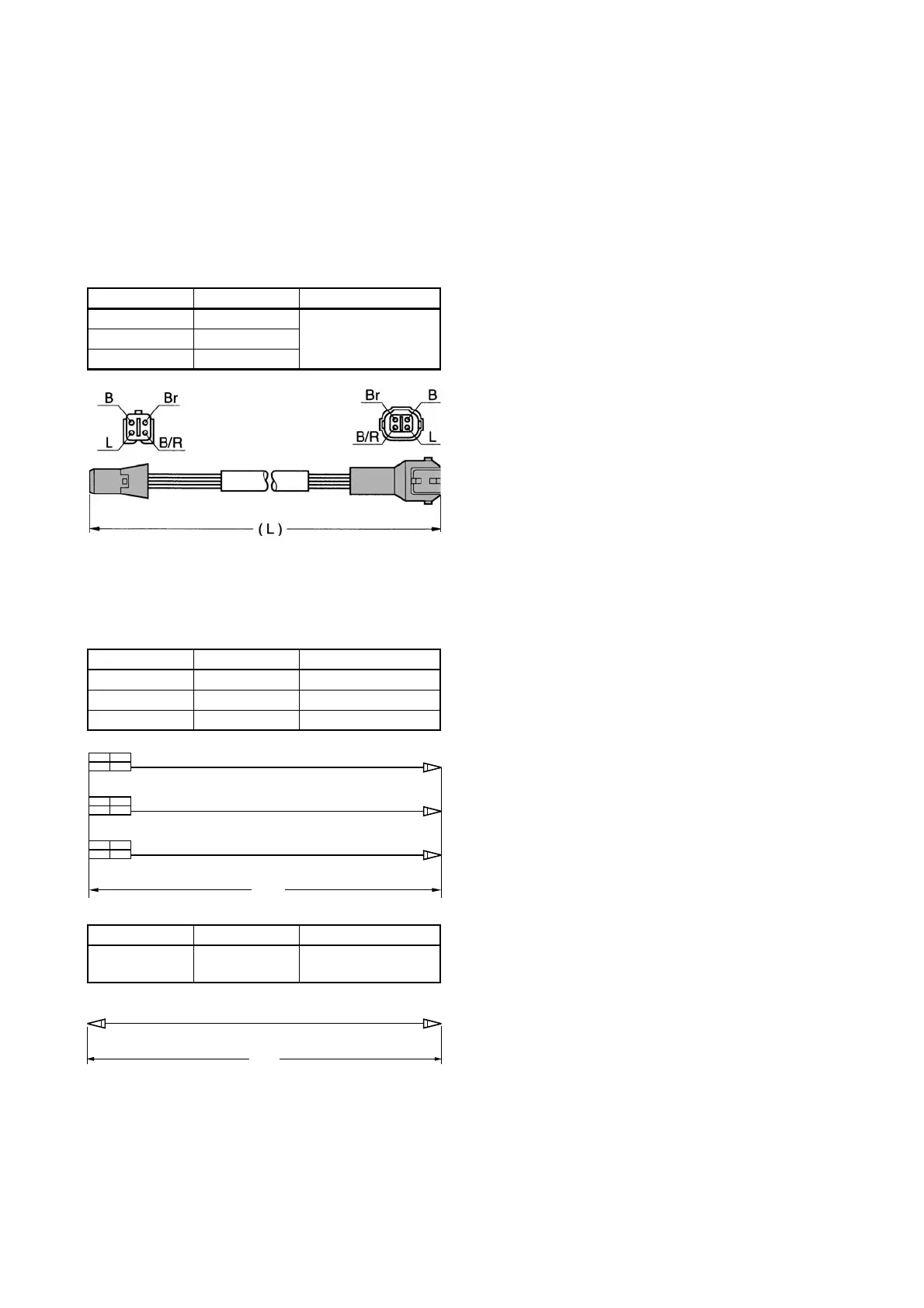

WIRE HARNESSES
An optional wire harness for the instruments is
available. This harness will help set up any
boats instruments. Choose a suitable wire-har-
ness if necessary.
For the wire color description, see the table
on page 5-36.
REMOTE-OIL TANK HARNESS
* Depending on the model, an 8 m (26 ft) wire har-
ness is accompanied in the engine crate.
ADDITIONAL ACCESSORY LEAD
Part No. Length (L) Remarks
6R3-85721-30 3 m (10 ft)
For V4, V6 oil injec-
tion model.
6R3-85721-50 5 m (16 ft)
6R3-85721-80 8 m (26 ft)
Part No. Length (L) Remarks
6Y5-82149-00 30 cm (1 ft) Blue
6Y5-82117-00 30 cm (1 ft) Black
6Y5-82521-00 30 cm (1 ft) Yellow
Part No. Length (L) Remarks
703-82531-00 0.7 m (28 in)
L/H model GND for
gauges
(BLU)
(BLU)
( L )
Y
B
L
( L )
( L )
B
( L )

Yamaha F115B Specifications

General

Compression Ratio	10.0:1
Alternator Output	35 Amp
Starting System	Electric
Lubrication System	Wet Sump
Exhaust	Through Propeller
Trim & Tilt	Power Trim & Tilt
Recommended Fuel	Regular Unleaded
Steering	Remote
Cooling System	Water Cooled
Engine Type	4-stroke
Displacement	1832 cc
Maximum Output	115 hp
Fuel Induction System	Electronic Fuel Injection
Gear Ratio	2.15:1
Shaft Length	20 in / 25 in
Ignition System	TCI (Transistor Controlled Ignition)
