Yamaha F200CET User Manual

5-43
Fuse
Trim meter
6Y7-83670-40 (BLK)
-50 (WHT)
Lamp switch
SpeedometerCharge
warning unit
Water pressure
meterVoltage meterDigital hour meter
Mechanical
hour meterFuel meter
Thermo sensor Fuel sensor
Engine is
running
Main switch is
“ON”
Water temperature
meter
Charge lamp
Tachometer
6Y7-83540-80 (BLK)
-90 (WHT)
Y
A
MA
H
A
6Y5-83553-00 : 2.5 m (8 ft)
6Y5-83653-00 : 5 m (16 ft)
-10 : 6 m (19 ft) -20 : 7 m (23 ft) -30 : 8 m (26 ft) -40 : 9 m (29 ft) -50 : 10.5 m (34 ft)
6Y5-82521-00 6Y5-82149-00 6Y5-82117-00
688-82520-00

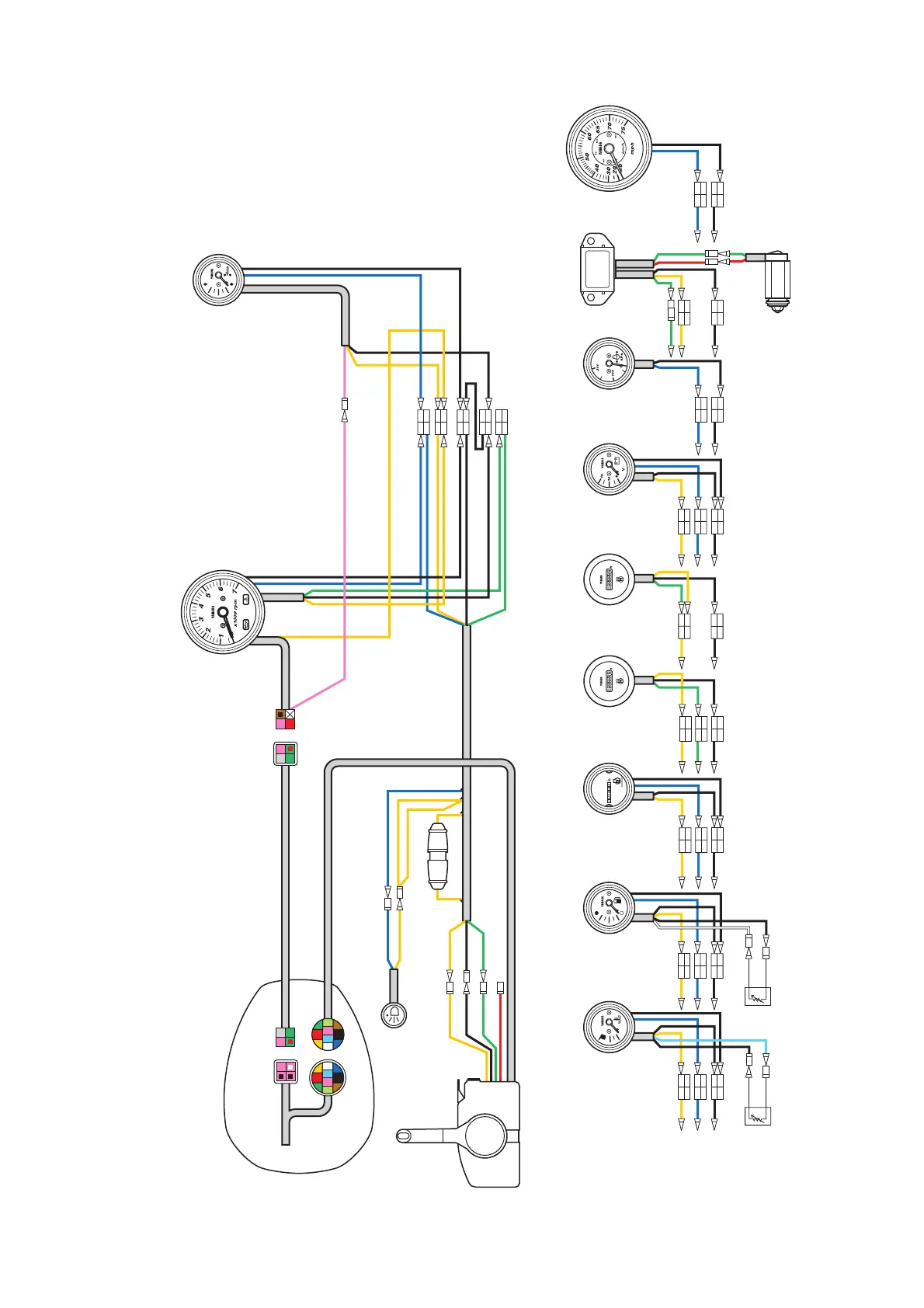

WIRING DIAGRAMS
ANALOG METER (6Y7)
2- AND 4-STROKE ENGINES
Above 40 [3-cyl.] w/ oil injection (except L/250G),
Above F30 (Mechanical RC)

Yamaha F200CET Specifications
