Yamaha F30AET Rigging Guide

6-5
OPTIONAL EQUIPMENTS

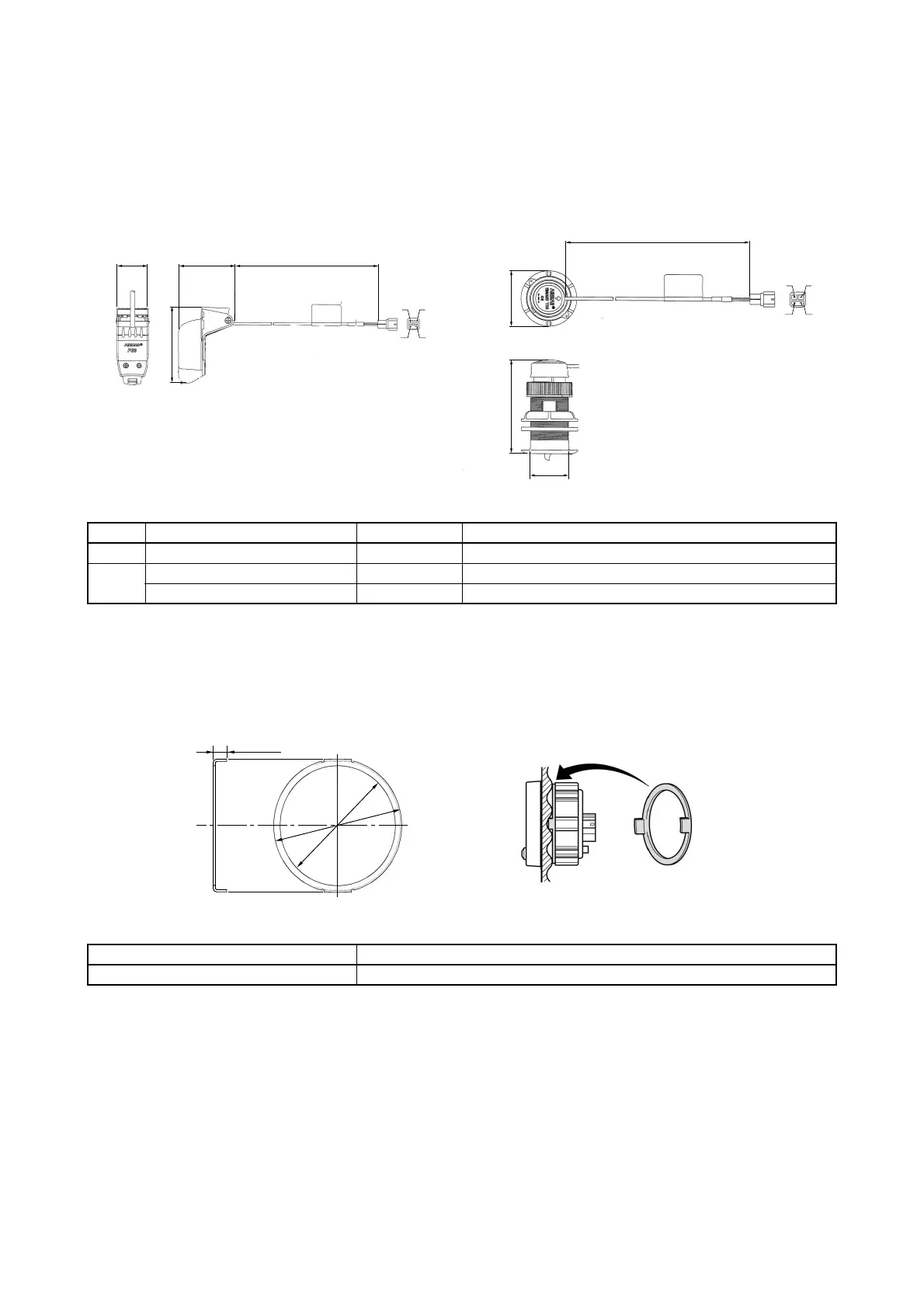

MULTI-SENSOR APPLICATION
Boat speed, water depth and water surface temperature can be obtained.
For installation, see the instruction which is accompanied with the sensor.
FITTING PLATE
If the fitting surface is rough, insert the plate between a board and the ring nut of gauge.
Ref. No. Part name Part No. Remarks
1 Transom multi-sensor 6Y8-83688-01
2
Thru-hull multi-sensor 1 6Y8-83688-11 Plastic body
Thru-hull multi-sensor 2 6Y8-83688-20 Bronze body
Part No. Remarks
6Y8-83514-00
96 (3.78)
130 (5.12)
4900 (16 ft)
52 (2.05)
B
R
L
W
50.8 (2)
125 (4.92)
3050 (10 ft)
B
R
L
W
75 (2.95)
12
mm (in.)mm (in.)
95 (3.74)
t = 1.5 (0.06)
85.5 (3.37)
20 (0.79)
mm (in.)

Yamaha F30AET Specifications

General

Engine Type	4-stroke
Displacement	747 cc
Max Output	30 hp
Starting System	Electric
SOHC	Yes
Cylinder	3
Full Throttle RPM Range	5000-6000 RPM
Ignition System	TCI
Lubrication	Wet Sump
Gear Shift	F-N-R
Fuel System	Electronic Fuel Injection (EFI)
Steering	Remote
Shaft Length	20 inches
Fuel Tank Capacity	N/A (External fuel tank)
Bore x Stroke	65.0 mm x 75.0 mm
