Yamaha F30B 2018 - Friction Plate (Tiller Handle Model)

9-1

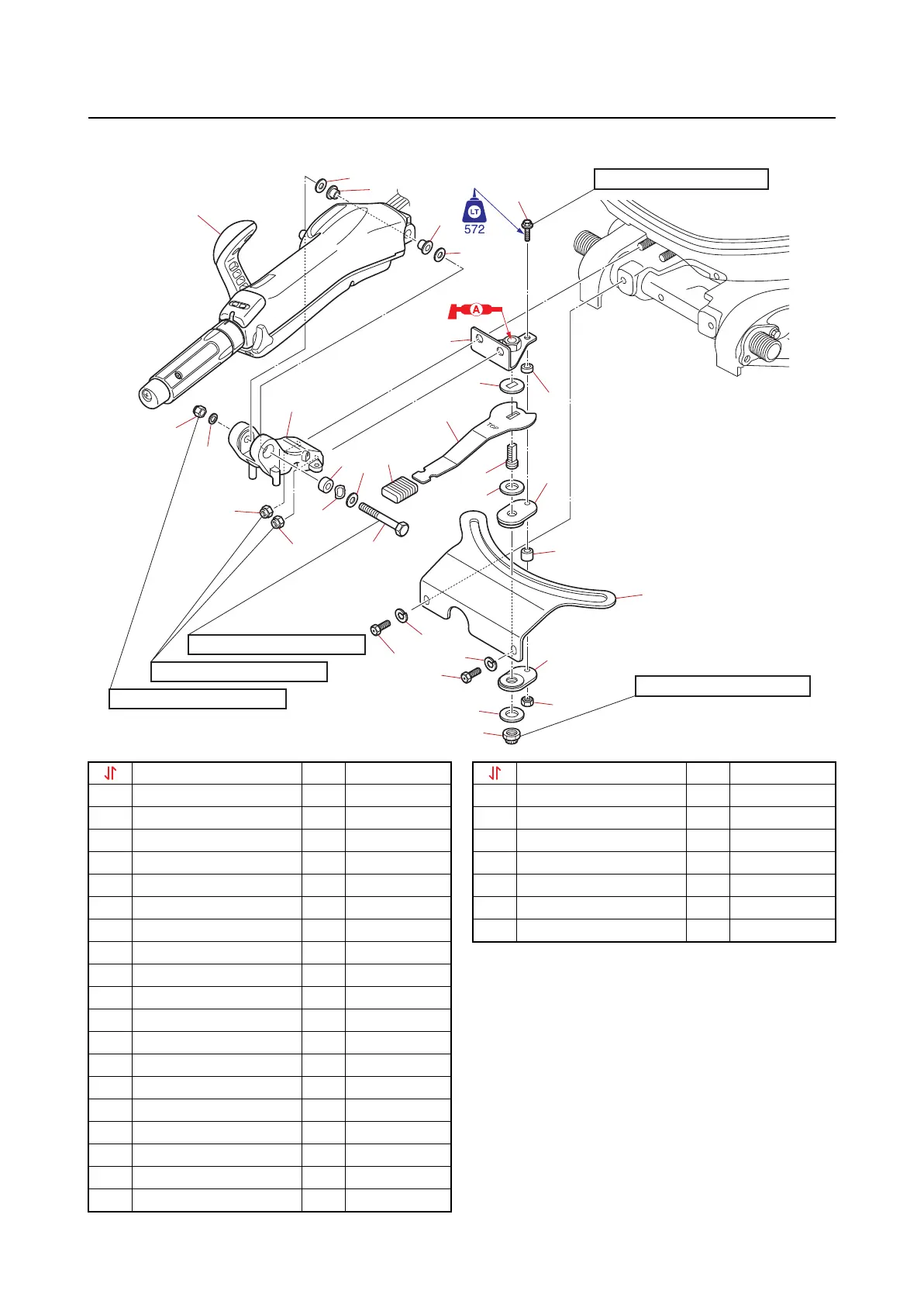

Friction plate (tiller handle model)
Friction plate (tiller handle model)
20
17
9
7
8
8
7
26
21
18
20
23
22
19
14
13
12
10
10
13
12
18
15
16
3
6
11
2
1
5
4
25
24
32 N·m (3.2 kgf·m, 24 lb·ft)
40 N·m (4.0 kgf·m, 30 lb·ft)
32 N·m (3.2 kgf·m, 24 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
Part name Q’ty Remarks
1 Self-locking nut 1
2 Washer 1
3Bolt M12  80 mm 1
4 Collar 1
5 Wave washer 1
6 Washer 1
7 Washer 2
8 Bushing 2
9 Tiller handle assembly 1
10 Self-locking nut 2
11 Tiller handle bracket 1
12 Bolt M6  12 mm 2
13 Spring washer 2
14 Friction plate 1
15 Nut 1
16 Nut 1
17 Steering lock washer 1
18 Friction piece 2
19 Collar 1
20 Washer 2
21 Collar 1 Black
22 Steering lock lever 1
23 Cap 1
24 Steering lock shaft 1
25 Bolt M5  20 mm 1
26 Bracket 1
Part name Q’ty Remarks
