Yamaha F40GET - Analog Meter (6 Y7)

5-42
Relay ASSY
6Y5-81950-02
Lamp switch
Fuse
For pre-mixed models
Tachometer
with oil indicator
Trim
meter
SpeedometerCharge
warning unit
Water pressure
meter
Voltage meterDigital hour meter
Mechanical
hour meter
Fuel meter
Thermo sensor Fuel sensor
Engine is
running
Main switch is
“ON”
Water temperature
meter
Charge lamp
Y
A
MA
H
A
6Y5-83553-00 : 2.5 m (8 ft)
688-82520-00
6Y5-83553-10
64D-82553-50 : 5 m (16 ft)
-70 : 7 m (23 ft) -80 : 8 m (26 ft) -90 : 9 m (29 ft)
6Y5-82521-00 6Y5-82149-00 6Y5-82117-00
Tachometer
without oil indicator

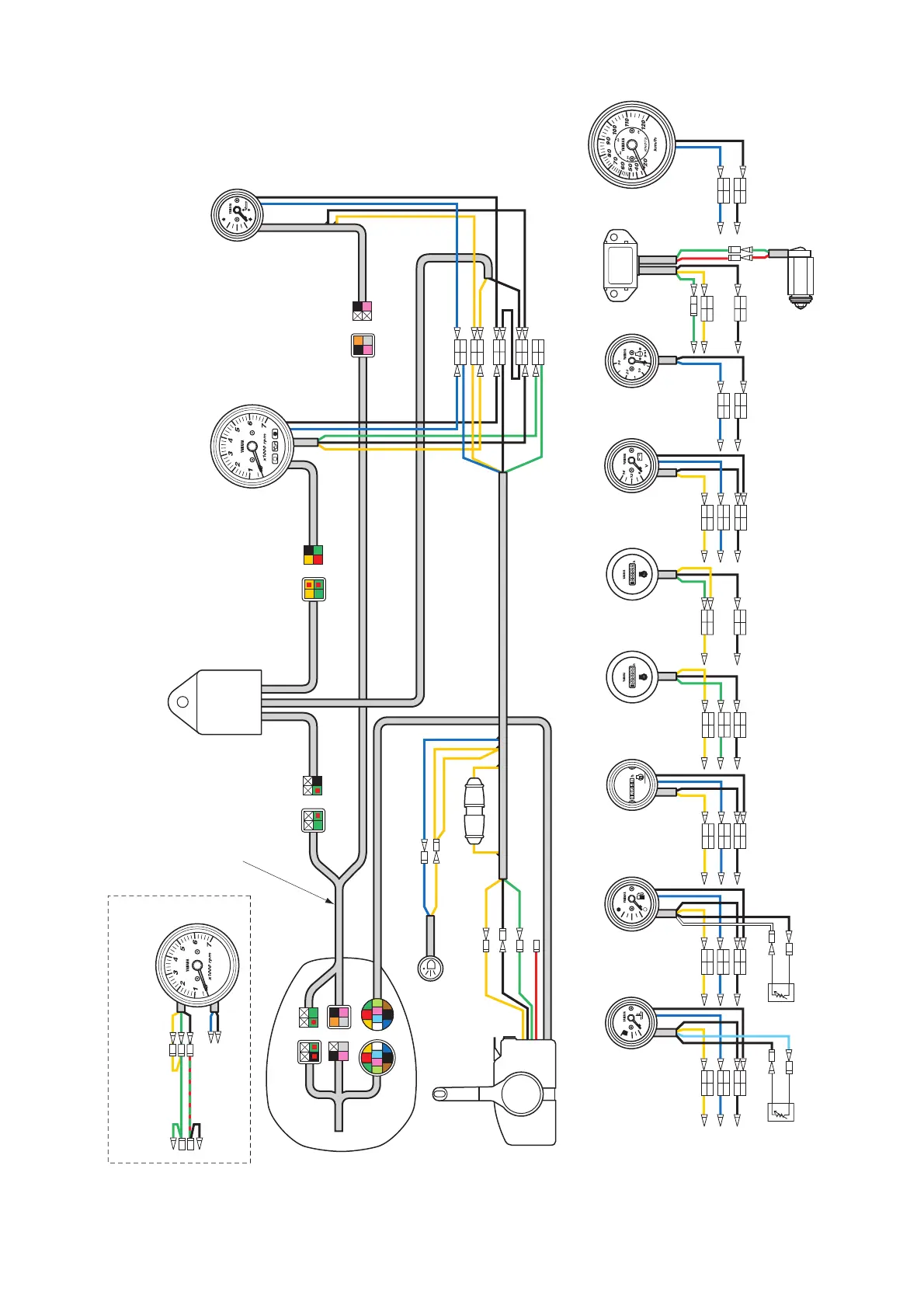

WIRING DIAGRAMS
ANALOG METER (6Y7)
2-STROKE ENGINES
250G/L250G &
Premixed
engines
