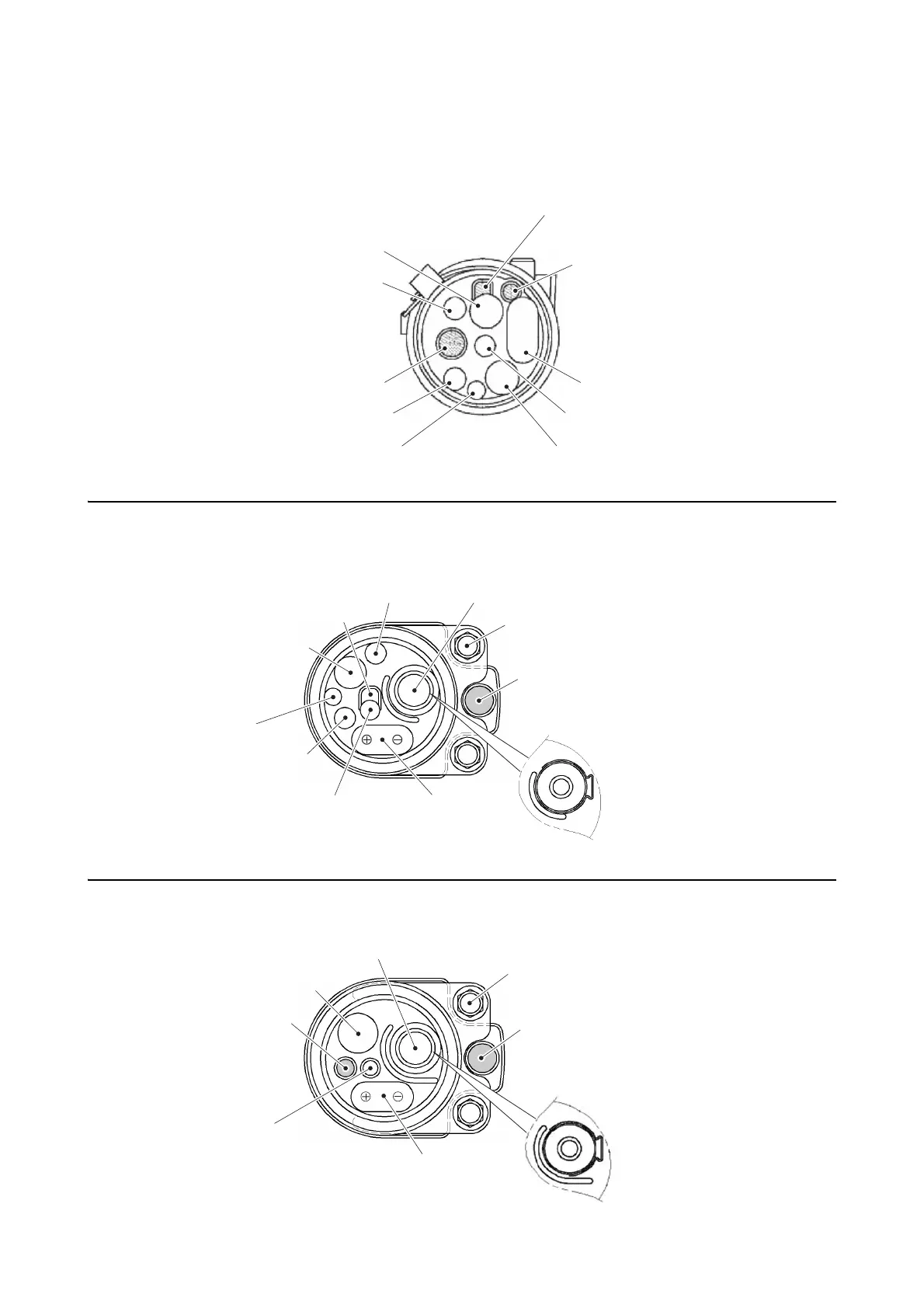

RIGGING GROMMET DESCRIPTION
F200, F225, F250 (V6-3.3L) w/ Variable Camshaft Timing
[Mechanical RC]
F200, F225, F250, F275 VMAX (SHO) and F150, F165, F175, F200(L4-2.8L)
F200 (L4-2.8L), F225, F250, F300 (V6-4.2L) [DEC]
Fuel hose
Gauge harness
Battery cable
Isolator cable (OP)
Throttle cable
Flushing hose (
Market
OP)
Shift cable
Speed hose
10-pin main harness
Coolant temp. lead and/or
Coolant press. tube (OP)
Flushing hose (market OP)
Position the hose clip
end as shown
M6 bolt: 8 Nm, 0.8 kgf·m, 13 ft·lb
Fuel hoseThrottle cable
10-pin main wire-harness
Coolant temp. wire/
pressure tube (OP)
(for conventional gauge)
Shift cable
Speed hose
Gauge wire-harness
or Pigtail bus wire
Battery cable
Flushing hose (market OP)
Position the hose clip
end as shown
M6 bolt: 8 Nm, 0.8 kgf·m, 13 ft·lb
Fuel hose
16-pin main wire-harness
Isolator cable (OP)
Speed hose
Battery cable
