1-34

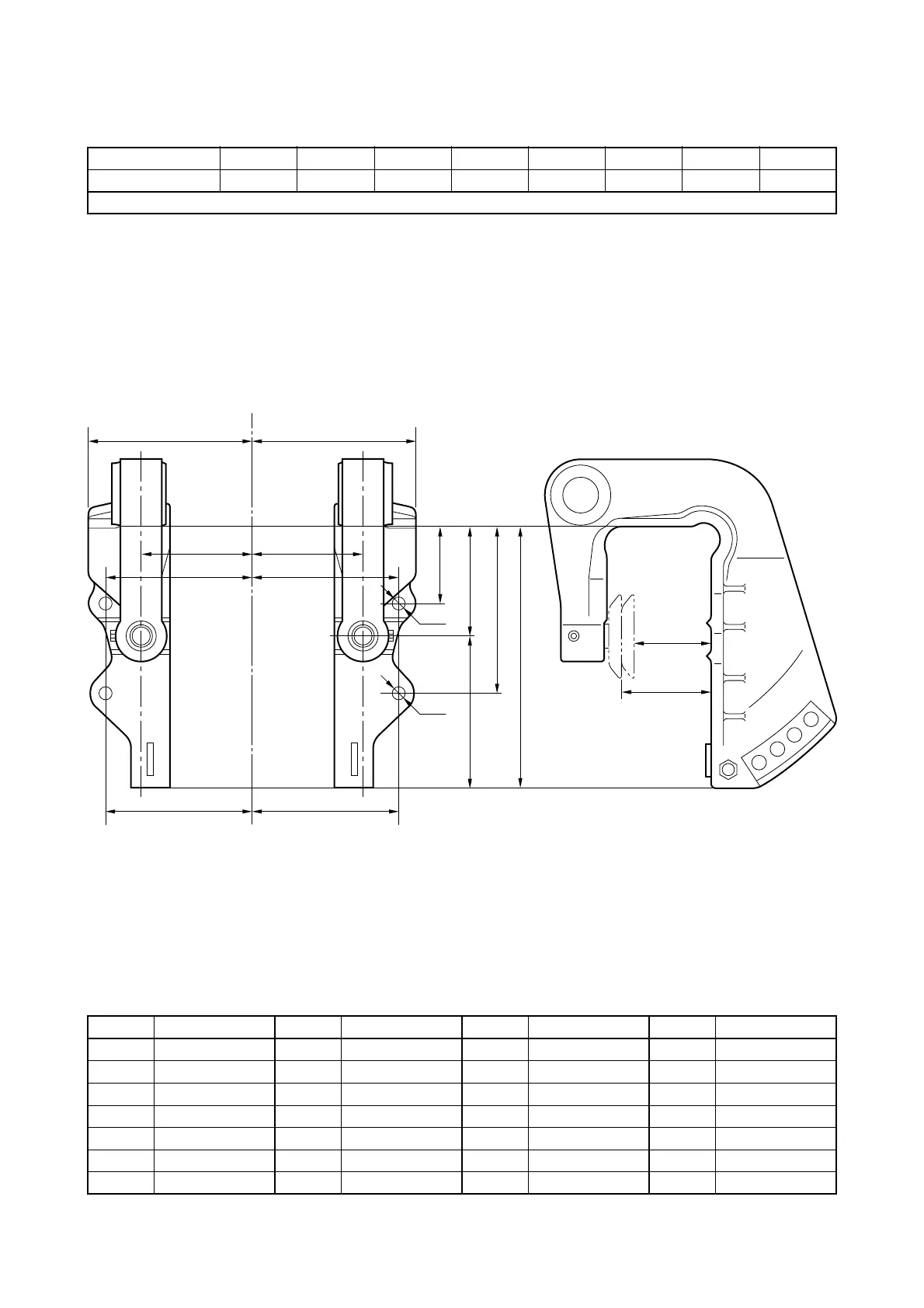

OUTBOARD MOTOR DIMENSIONS
CLAMP BRACKET DIMENSIONS
Global model 9.9F 15F
US/CA model
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 92.5 (3.6) B8 — C1 30 (1.2) D1 8.3 (0.3)
B2 103.5 (4.1) B9 54.5 (2.1) C2 56 (2.2) D2 8.3 (0.3)
B3 92.5 (3.6) B10 — C3 — D3 —
B4 49 (1.9) B11 70.5 (2.8) D4 —
B5 102.5 (4.0) B12 69 (2.7)
B6 176 (6.9)
B7 —
B6
B2
B9
B12
B1
B1
1
B3
B5
B1
B1
1
B3
B5
B4
C1
C2
D2
D1
C/L
