OUTBOARD MOTOR DIMENSIONS

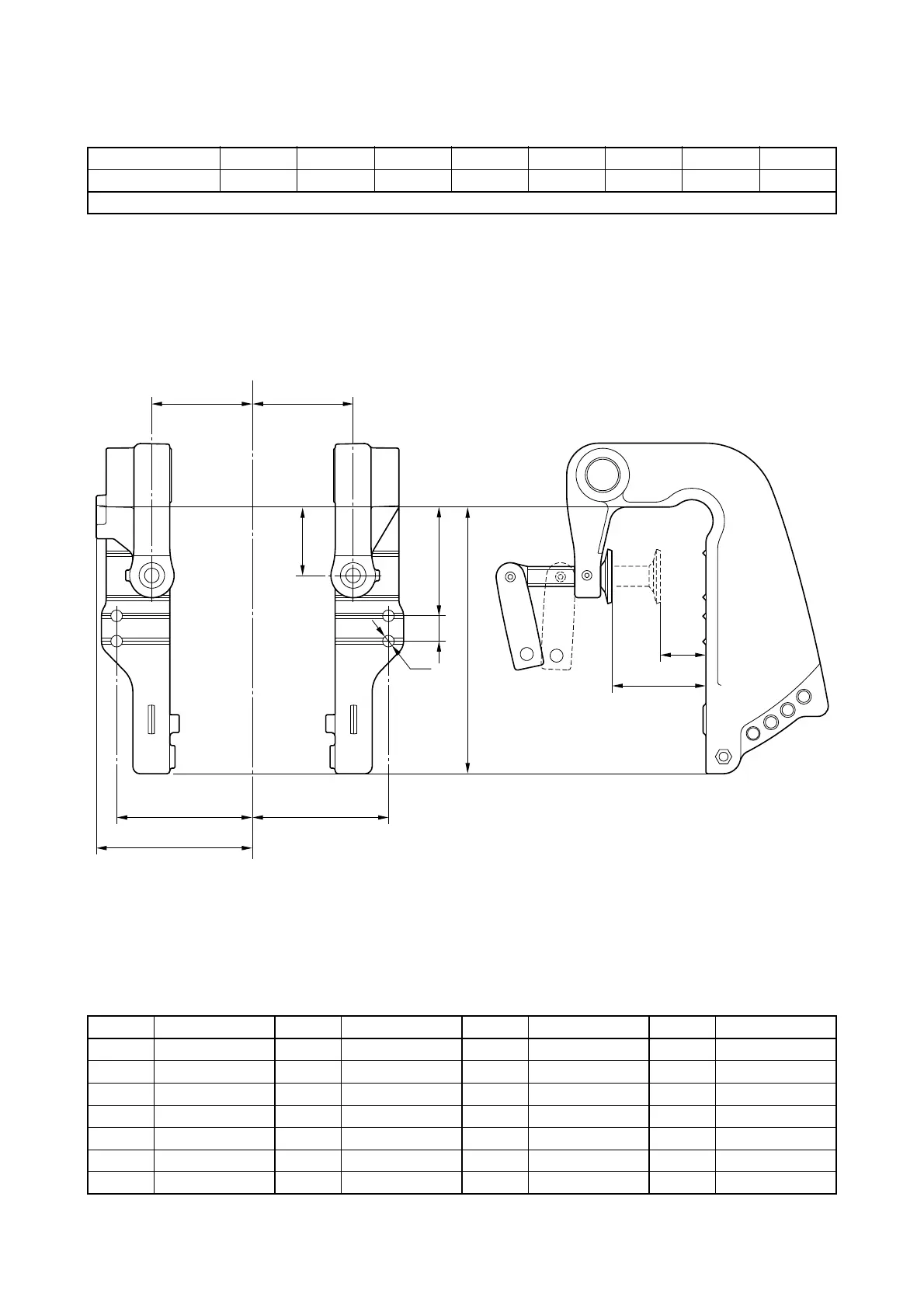

CLAMP BRACKET DIMENSIONS
Global model F9.9H F15C F20B F20C F9.9J FT9.9L
US/CA model F15A F20A F9.9B T9.9B
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 — B8 — C1 32 (1.3) D1 8.3 (0.33)
B2 — B9 18 (0.71) C2 67 (2.6) D2 —
B3 95.3 (3.8) B10 — C3 — D3 —
B4 76.5 (3.0) B11 70.5 (2.8) D4 —
B5 110 (4.3) B12 48 (1.9)
B6 187.5 (7.4)
B7 —
C/L
B3
B11
B6
B4
B12
B5
B3
B11
B9
C1
C2
D1
