1-43
OUTBOARD MOTOR DIMENSIONS

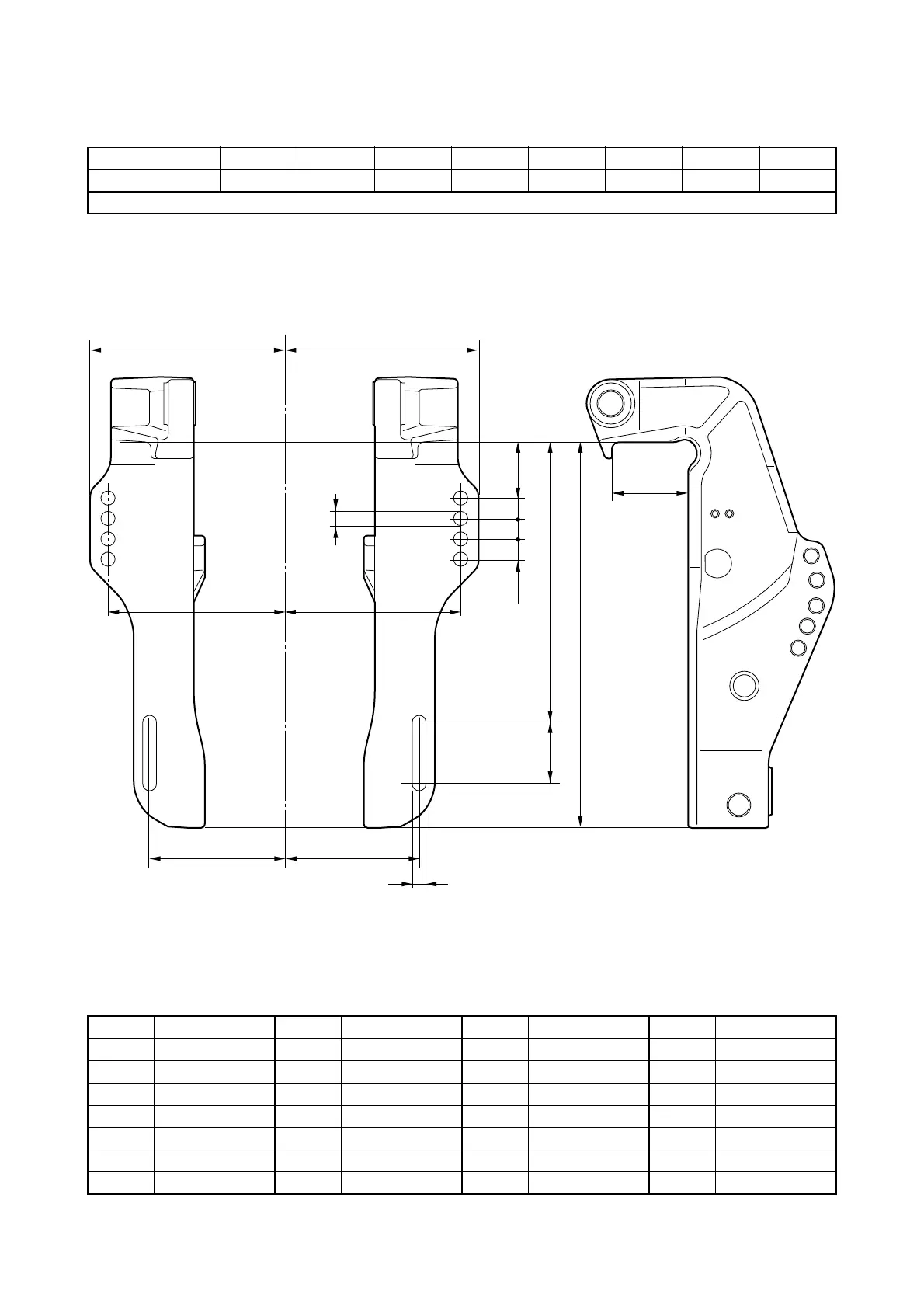

CLAMP BRACKET DIMENSIONS
Global model F40H F50H FT50J F60F FT60G F70A F40G
US/CA model F50B T50B F60B T60B F70A
PTT & Hydro-tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 126 (5.0) B8 — C1 — D1 13 (0.5)
B2 254 (10.0) B9 18.5 (0.7) C2 — D2 55.5 (2.2)
B3 163.5 (6.4) B10 — C3 69 (2.7) D3 —
B4 50.8 (2.0) B11 — D4 —
B5 180 (7.1) B12 —
B6 350 (13.8)
B7 —
C3
B3
B5
C/L
B1
B4
B9
B2D2
B6
B9B9
D1
D1
B3
B5
B1
