Yamaha F4B - Power Unit Assembly

7-11
POWR
Power unit

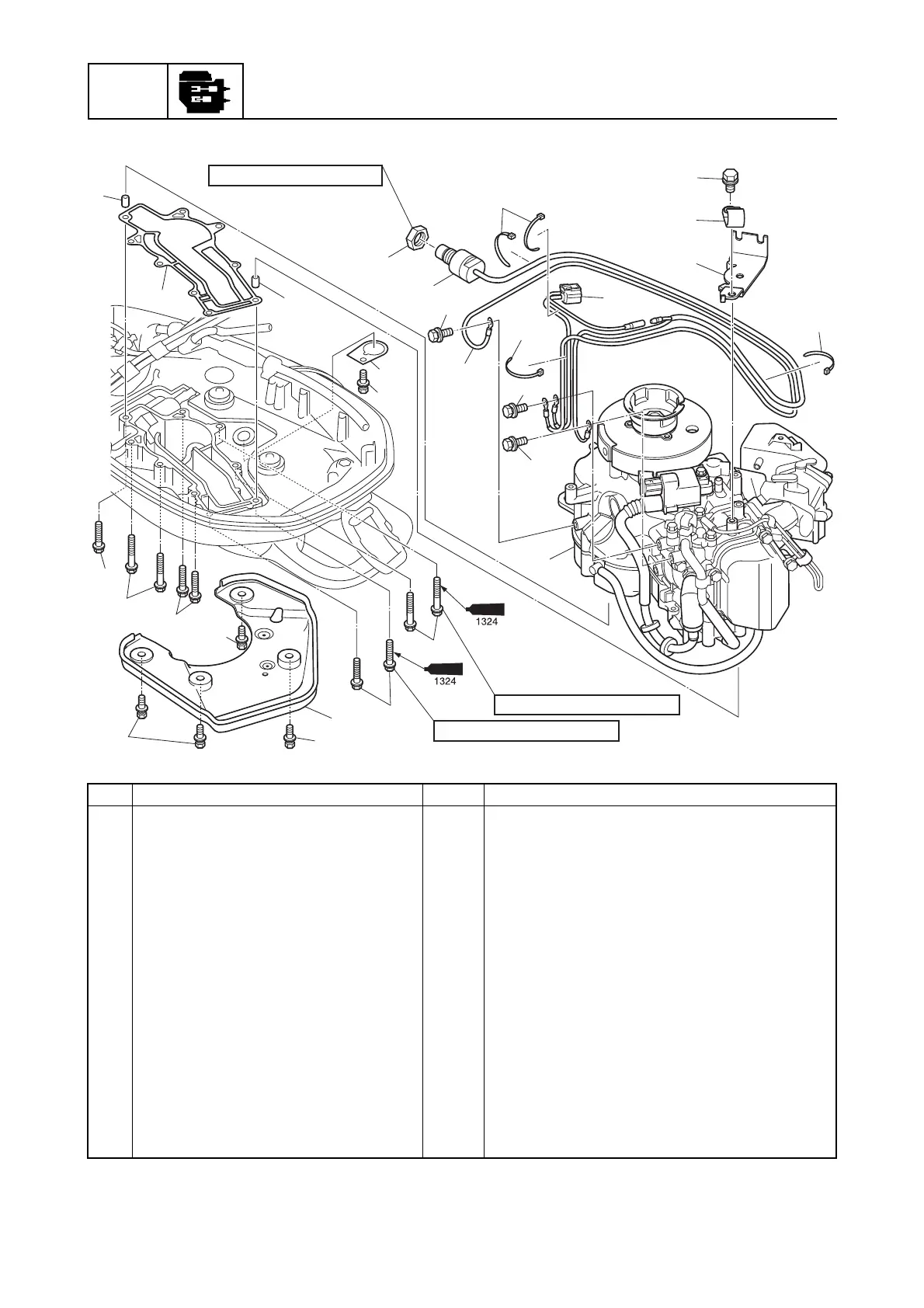

Power unit assembly
No. Part name Q’ty Remarks
1Dowel 2
2Gasket 1 
3 Engine shut-off switch nut 1
4 Engine shut-off switch 1
5 Plastic tie 4 
6Bolt 4 M6  12 mm
7 Holder 1
8 Bracket 1
9 CDI unit coupler 1
10 Ground lead 1
11 Power unit assembly 1
12 Plate 1
13 Bolt 5 M6  15 mm
14 Power unit mounting bolt 4 M6  50 mm
15 Power unit mounting bolt 5 M6  40 mm
16 Cover 1
1
2
1
4
6
6
5
8
7
14
15
16
13
13
13
14
15
15
13
12
5
5
11
6
3
6
9
10
2 N·m (0.2 kgf ·m, 1.5 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
