Yamaha F4B - Wiring Diagram

A-1

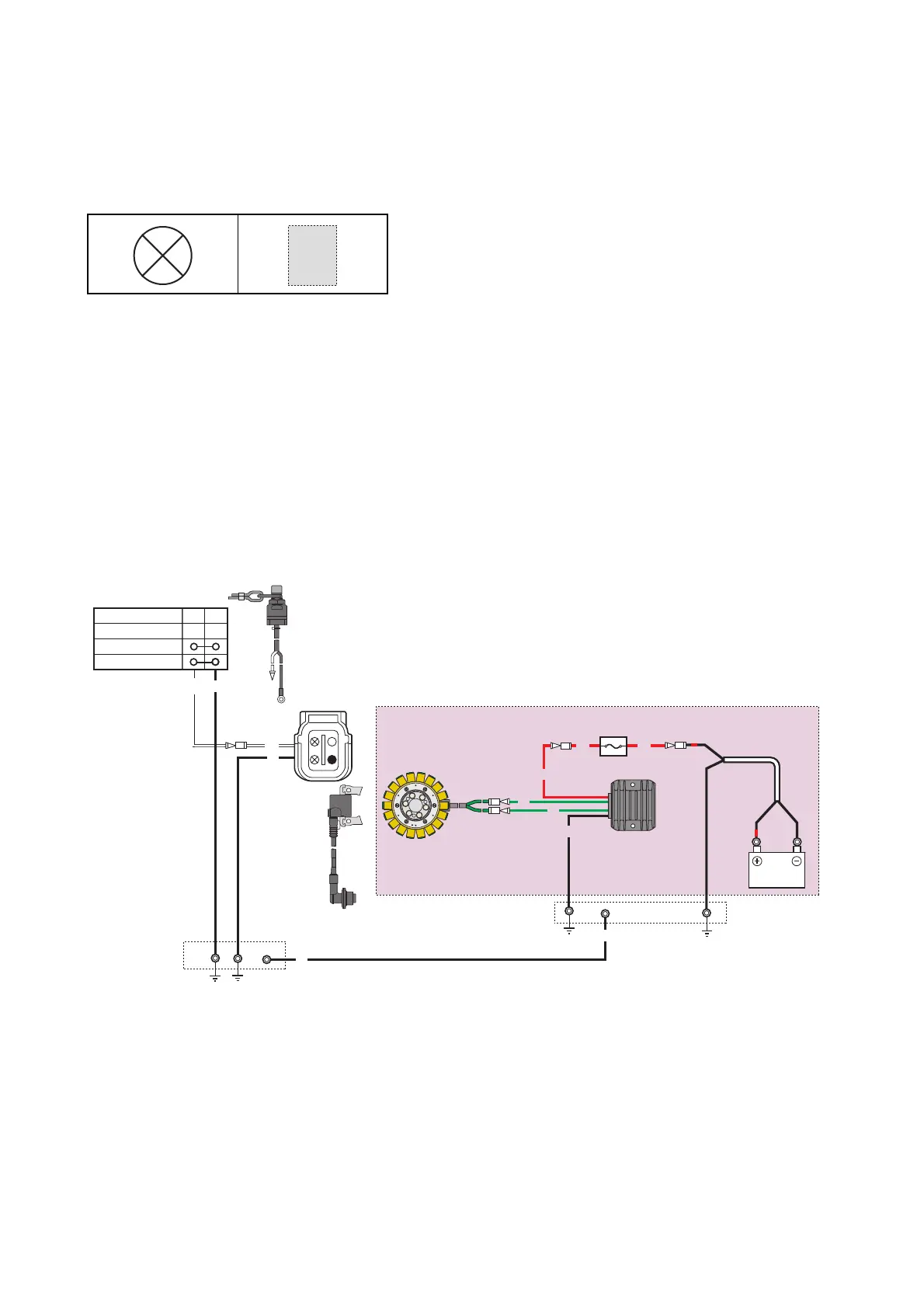

Wiring diagram
How to use the wiring diagram
Legend symbols in the wiring diagrams
a No wire connector
b Optional parts
Color Code
F4B, F5A, F6C
a Fuse (20A) (Battery)
a b
B: Black
G : Green
R: Red
W : White
a
W
G
B
R
W
B
B
R
R
G
B
B
W
B
Engine shut-off
switch
Clip installed
Clip removed
Pushed
Lighting coil Rectifier Regulator
CDI unit
