Fuel system

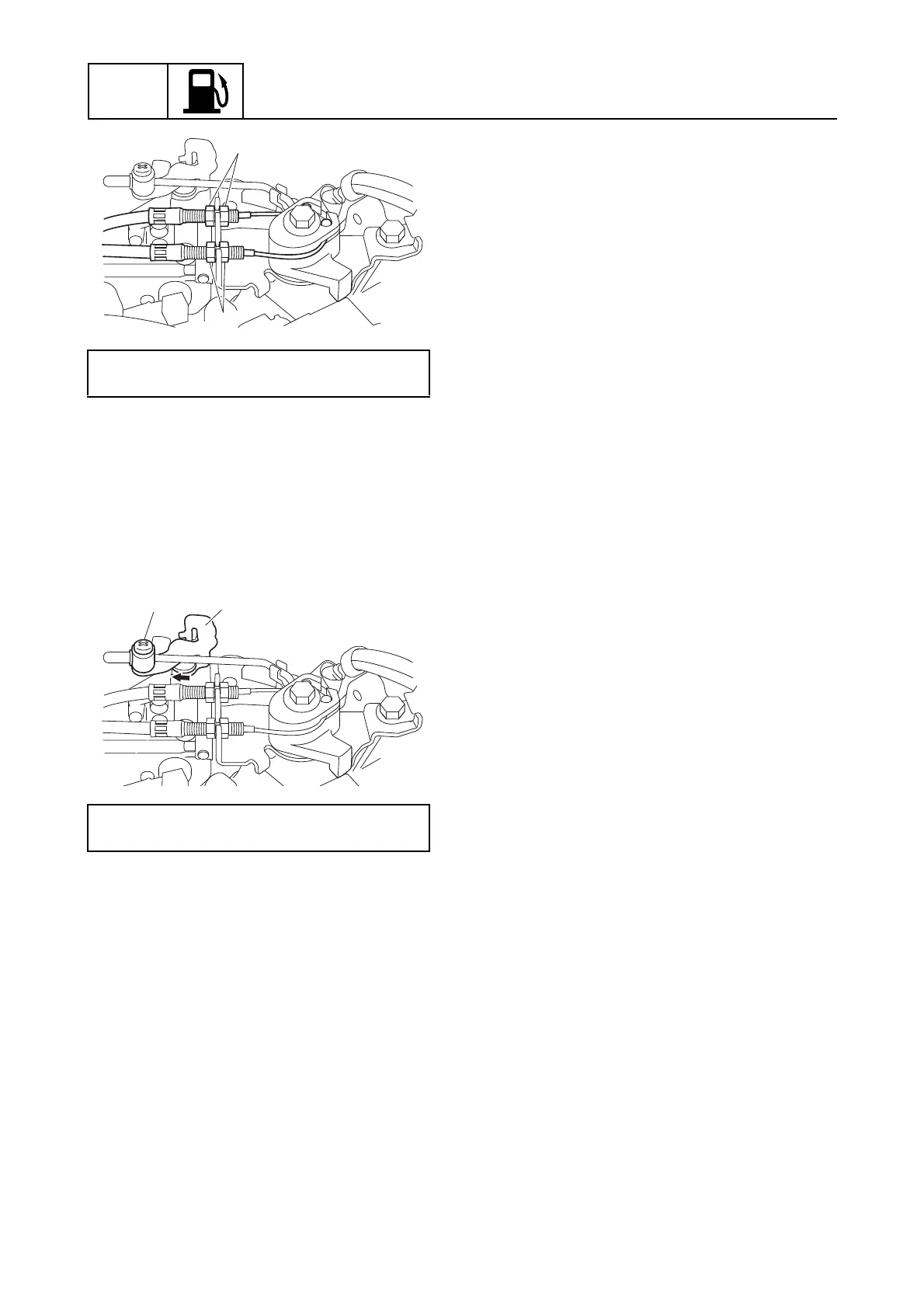

7. Loosen the throttle link screw e.
8. Turn the throttle grip to the fully open
position.
9. While pulling the lever g, tighten the
throttle link screw e to the specified
torque.
10. Check that the throttle link is in the fully
open and fully closed positions when
turning the throttle grip to the fully open
and fully closed positions.
Throttle cable locknut a:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
Throttle link screw e:
1.5 N·m (0.15 kgf·m, 1.11 ft·lb)
a
a
e
g
