Yamaha F6 - Steering Friction Adjuster (F2.5); Trim Rod (Tilt Pin); Steering Friction Adjuster (F4, F6)

Components
36
F2.5
F4, F6
To increase resistance, turn the steering fric-
tion adjuster clockwise.
To decrease resistance, turn the steering fric-
tion adjuster counterclockwise.
EMU40101
Trim rod (tilt pin)
The trim rod (tilt pin) is used to adjust the trim
angle of the outboard motor in relation to the
angle of the boat transom.
F2.5
F4, F6
EMU39363
Tilt lock mechanism (F4, F6)
The tilt lock mechanism is used to prevent the
outboard motor from lifting out of the water
when the gear shift lever is in the reverse po-
sition.
When the gear shift lever is moved to the re-
verse position, the tilt lock mechanism oper-
ates to prevent the outboard motor from being
tilted up.

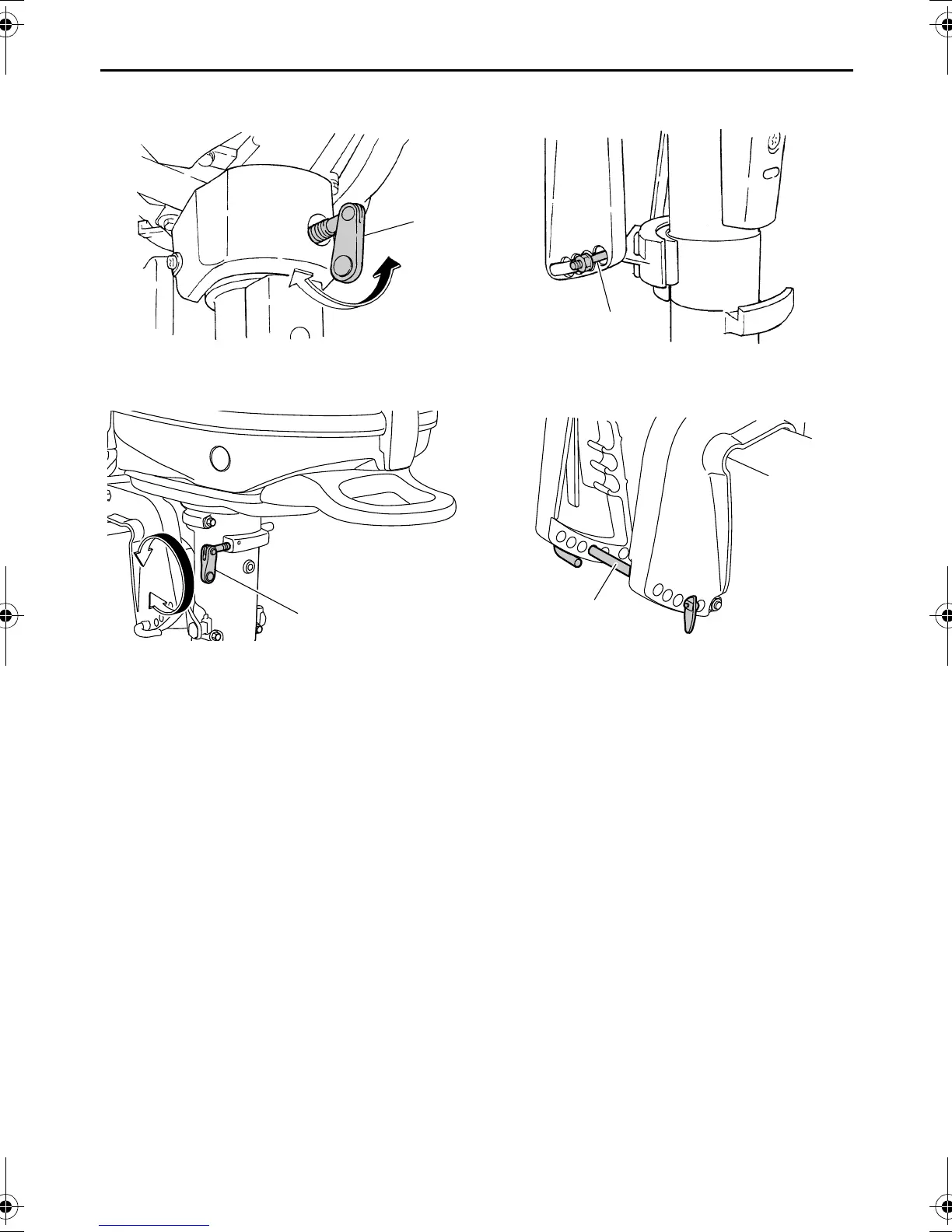

1. Steering friction adjuster
1. Steering friction adjuster
1
ZMU07365
ZMU06729
1
1. Trim rod
1. Trim rod
1
ZMU07366
ZMU06843
1
