Maintenance
72

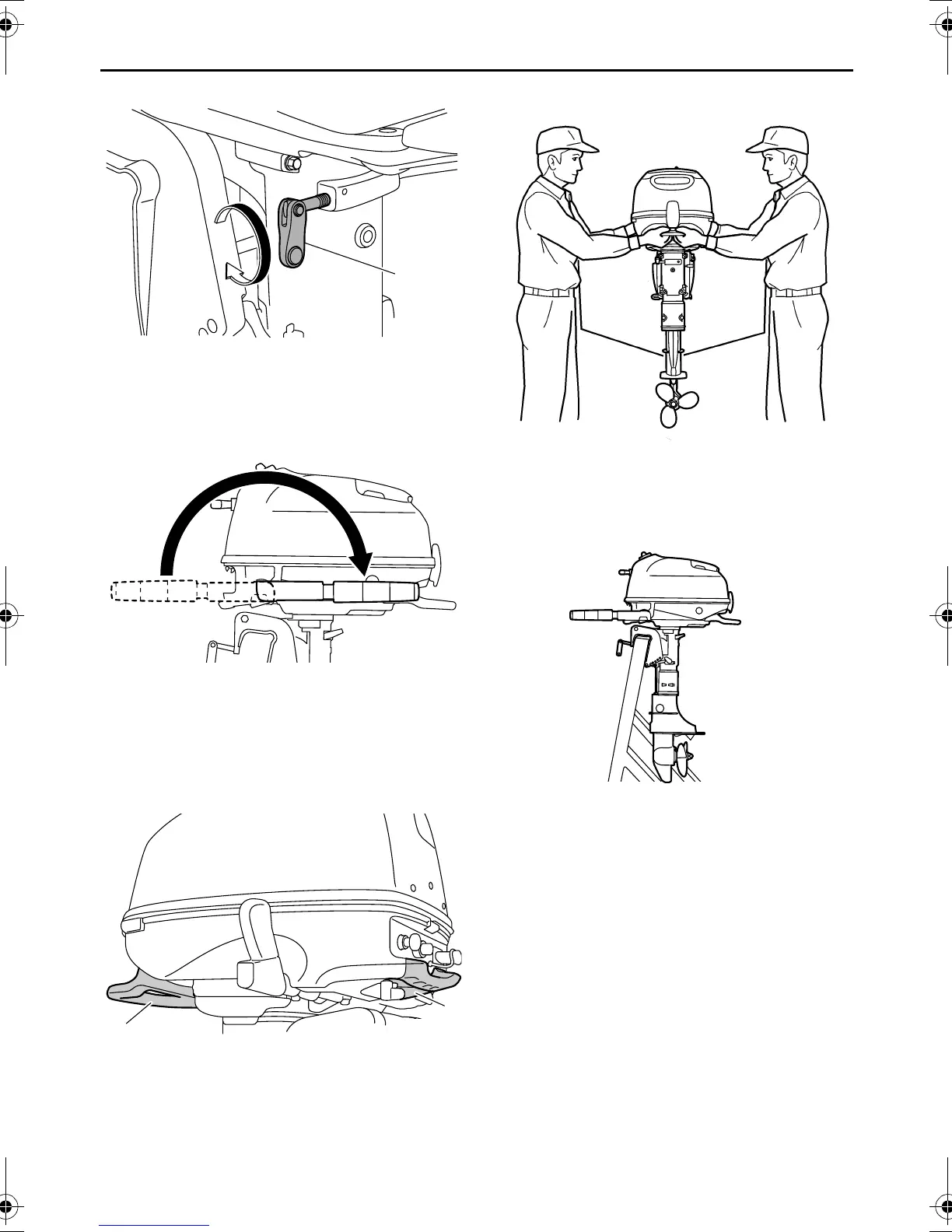

7. Turn the tiller handle 180° so that it is
pointing rearward.
8. Loosen the clamp screws.
9. Hold the carrying handle and the hand-
grip on the front side of the bottom cowl-
ing and lift up the outboard motor using
two people to dismount it from the boat.
10. When transporting or storing the out-
board motor while removed from a boat,
use an outboard motor stand.
11. If transporting or storing the outboard mo-
tor horizontally cannot be avoided, tight-
en the clamp screws completely, place a
towel or something similar under the out-
board motor to protect it from damage,
and then place the outboard motor in the
attitude shown. If the front side of the out-
board motor is facing down, turn the
clamp bracket 90° so that it does not con-
tact the ground, and then turn the steer-
ing friction adjuster clockwise to secure
the bracket.
1. Steering friction adjuster
1. Carrying handle
2. Handgrip
