Basic components
12
EMU25795
Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all models.
EMU26180
Remote control
The remote control lever actuates both the
shifter and the throttle. The electrical switches
are mounted on the remote control box.

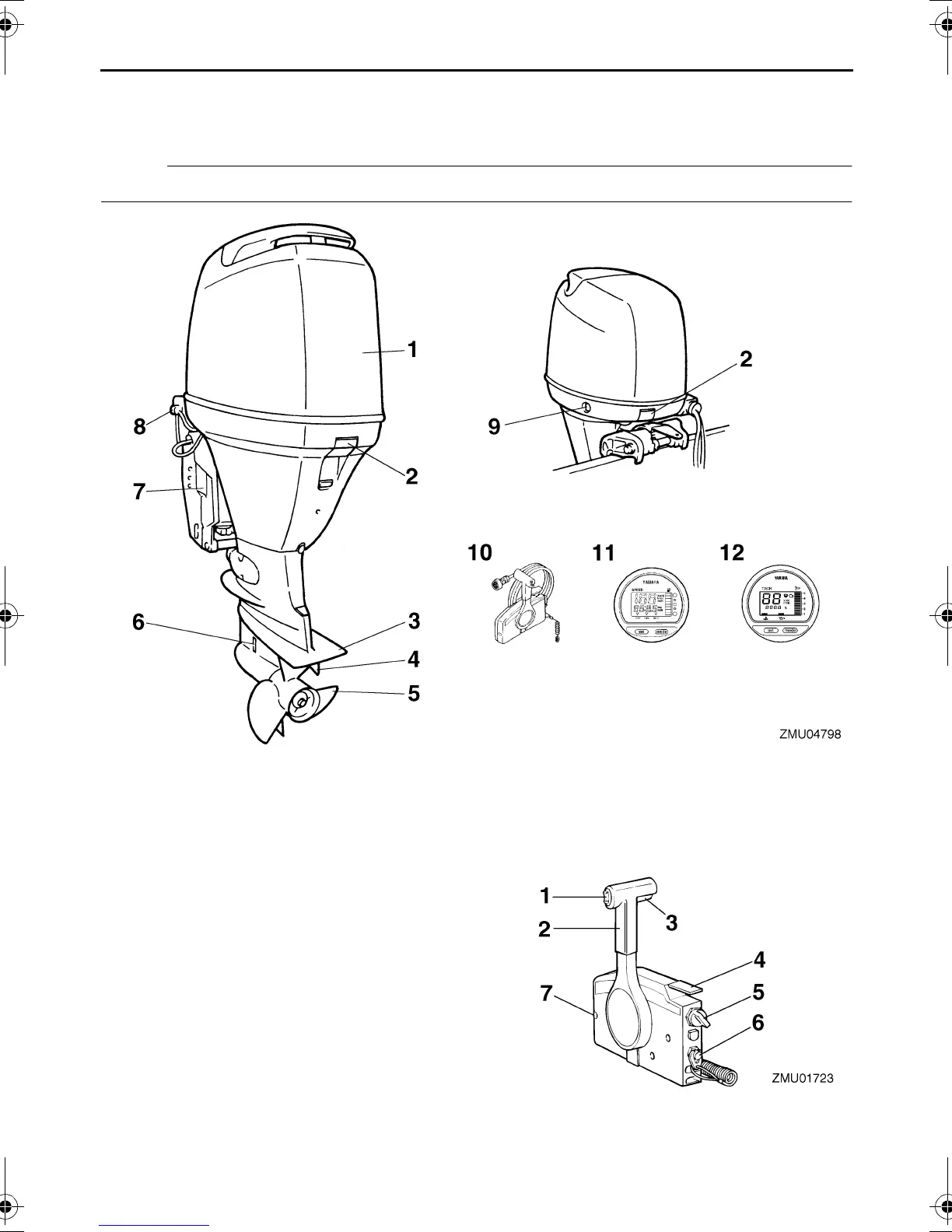

1. Top cowling
2. Top cowling lock lever(s)
3. Anti-cavitation plate
4. Trim tab (anode)
5. Propeller*
6. Cooling water inlet
7. Clamp bracket
8. Flushing device
9. Power trim and tilt switch
10.Remote control box (side mount type)*
11.Digital speedometer*
12.Digital tachometer*
1. Power trim and tilt switch
