Wiring specifications
5-3

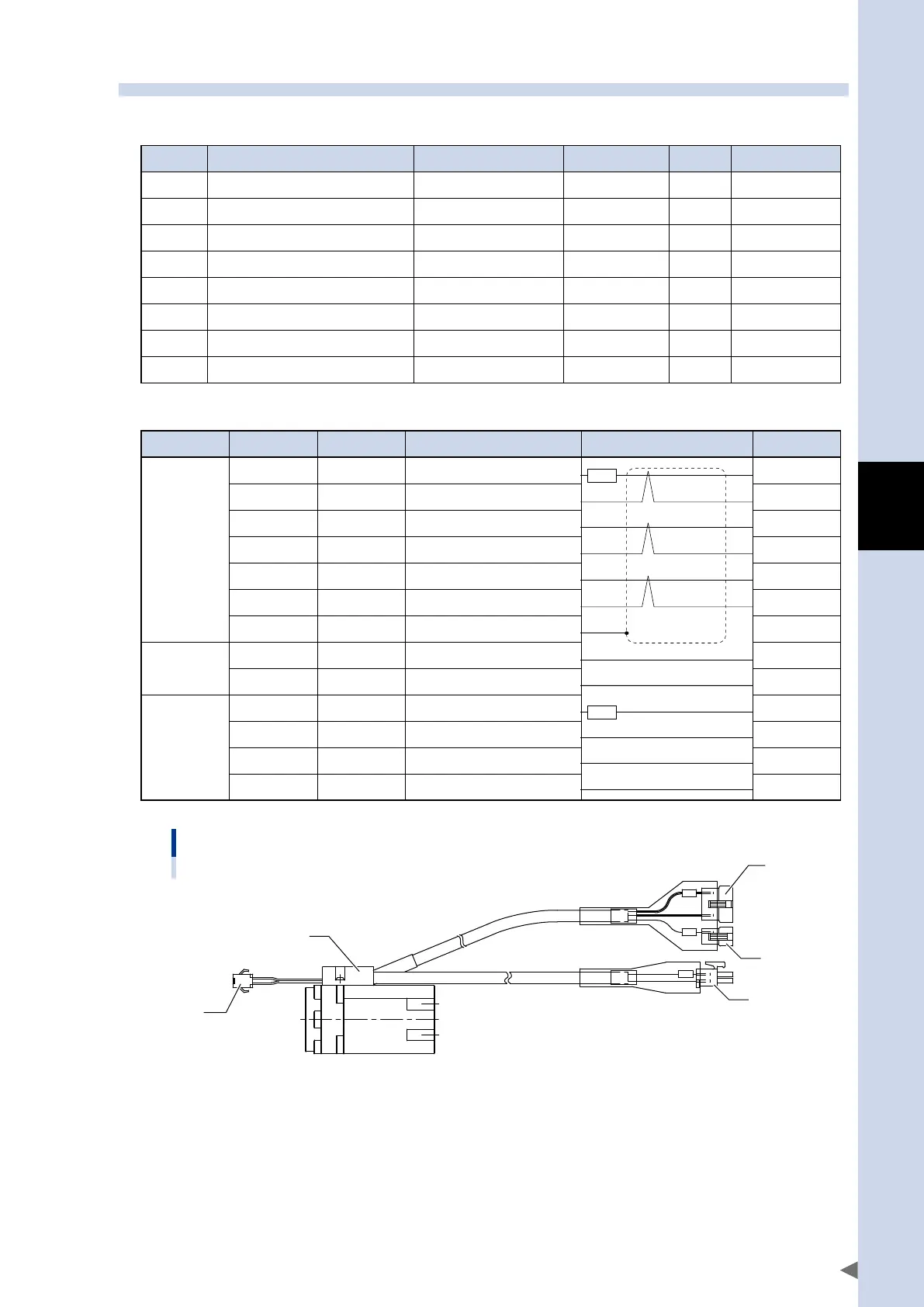

1.3 AC servo motor termination (F8/F8L/F8LH)
■
Connector specifications
No. Parts Type No. Maker Qty Notes
1 Servomotor 1
2 Receptaclehousing SMR-07V-B JST 1 CN1(7polarities)
3 Pincontact SYM-001T-P0.6 JST 9 CN1.CN2
4 Receptaclehousing 176273-1 AMP 1 CN3(4polarities)
5 Receptacle 175156-2 AMP 4 CN3
6 Receptaclehousing SMR-02V-B JST 1 CN2(2polarities)
7 Plughousing SMP-02V-BC JST 1 CN4(2polarities)
8 Socketcontact SHF-001T-0.8BS JST 2 CN4
■
Connector wiring
Connector Pin No. Signal Wire Color Connection
CN1
1 S2 Yellow Motor
2 S4 Blue
3 S1 Red
4 S3 Black
5 R1 White
6 R2 Green
7 Shield Grey(Heatshrinkabletube)
CN2
1 BK Brown CN41
2 BK Grey CN42
CN3
1 U Red Motor
2 V White
3 W Black
4 PE Yellow/Green
PI
BK
MO
F8/F8L/F8LH
CN1
CN2
CN3
CN4
1
7, 8
2, 3
4, 5
6, 3
53502-A5-00
P
M
