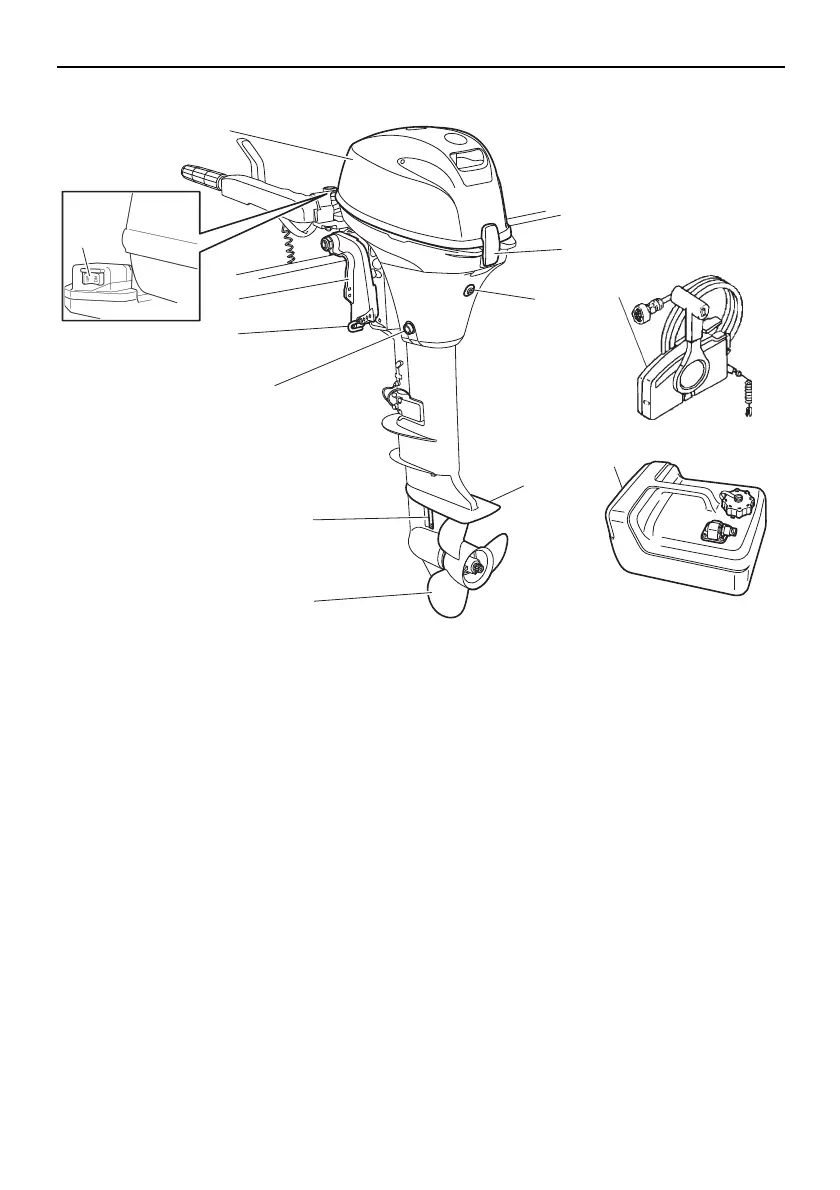

Components
26
T9.9
1
2
8
9
10
3
4
5
6
7
12
11
ZMU07889
1. Top cowling
2. Power tilt switch*
3. Clamp bracket
4. Trim rod*
5. Drain screw
6. Cooling water inlet
7. Propeller
8. Cowling lock lever
9. Idle hole
10.Anti-cavitation plate
11.Remote control box (side mount type)*
12.Fuel tank
