Components
33
EMU26102

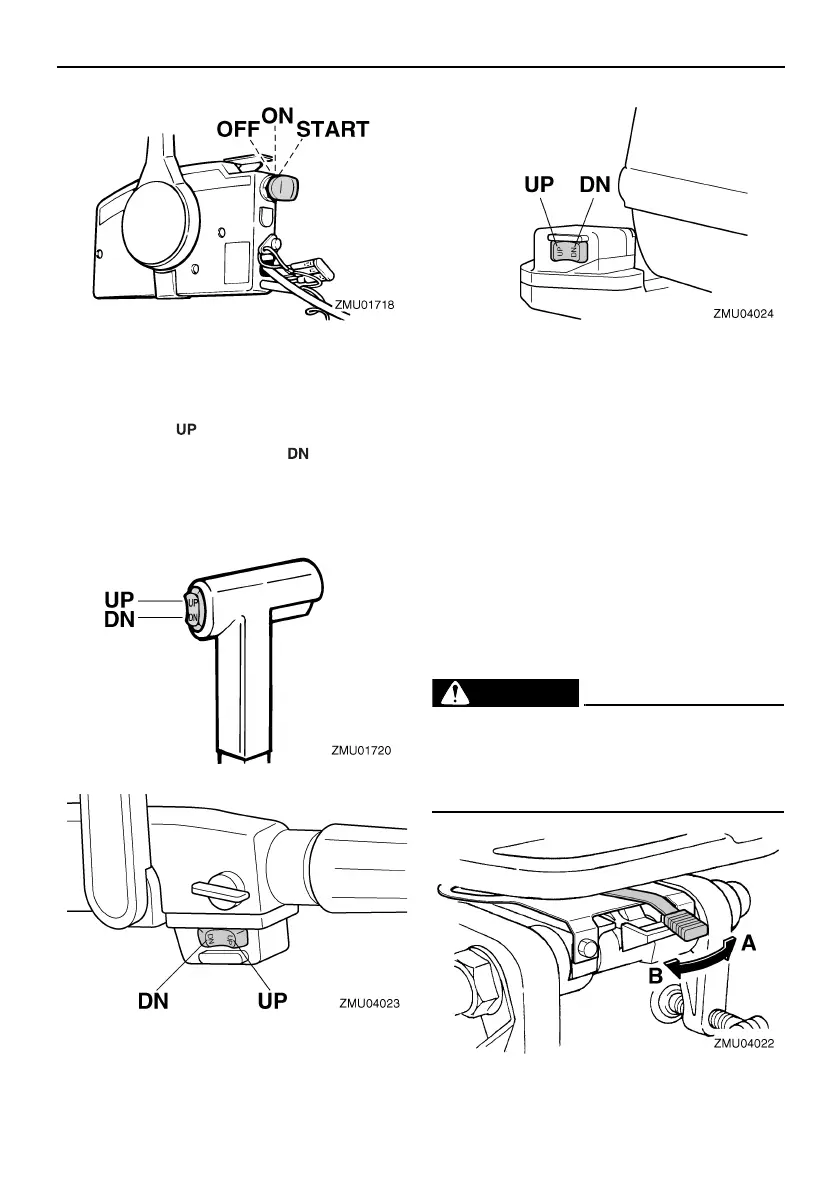

Power tilt switch
The power tilt system adjusts the outboard
motor angle in relation to the transom. Push-
ing the switch “ ” (up) tilts the outboard mo-
tor up. Pressing the switch “ ” (down) tilts
the outboard motor down. When the switch is
released, the outboard motor will stop in its
current position.
For instructions on using the power tilt switch,
see pages 63 and 65.
EMU31432
Steering friction adjuster
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
juster lever is located on the bottom of the
tiller handle bracket.
To increase resistance, turn the lever to the
port side “A”.
To decrease resistance, turn the lever to the
starboard side “B”.
EWM00040
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to steer, which could result in an
accident.
