Operation
49

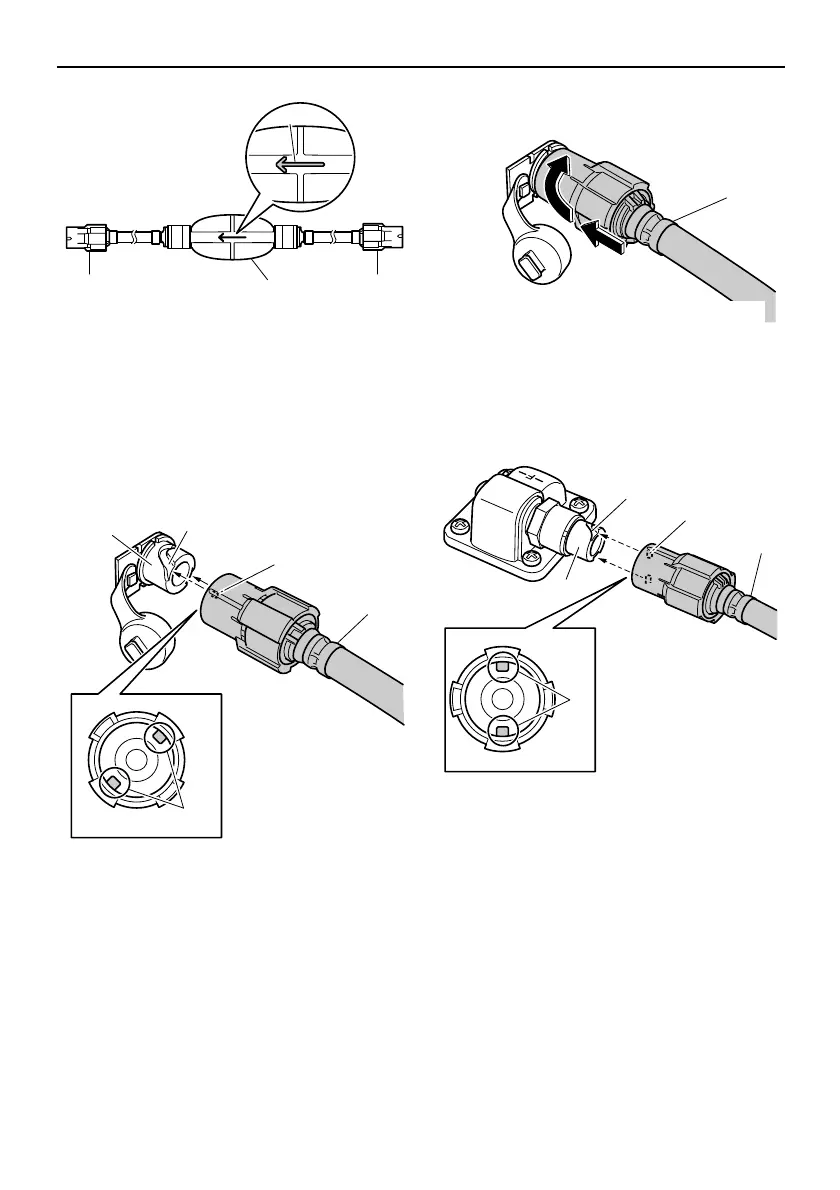

4. Align the groove in the fuel joint on the
outboard motor with the protrusions on
the fuel hose.
5. Push in the fuel hose and turn it clockwise
to connect it securely.
6. Align the groove in the fuel joint on the
fuel tank with the protrusions on the fuel
hose.
7. Push in the fuel hose and turn it clockwise
to connect it securely.
1. Toward the outboard motor
2. Arrow
3. Primer pump
4. Toward the fuel tank
1. Fuel joint
2. Groove
3. Protrusion
4. Fuel hose
143
2
ZMU07452
4
3
2
1
3
ZMU07453
1. Fuel hose
1. Fuel joint
2. Groove
3. Protrusion
4. Fuel hose
1
ZMU07454
4
3
1
2
3
ZMU07455
