PROCEDURE FOR TILTING UP
Manual tilt model

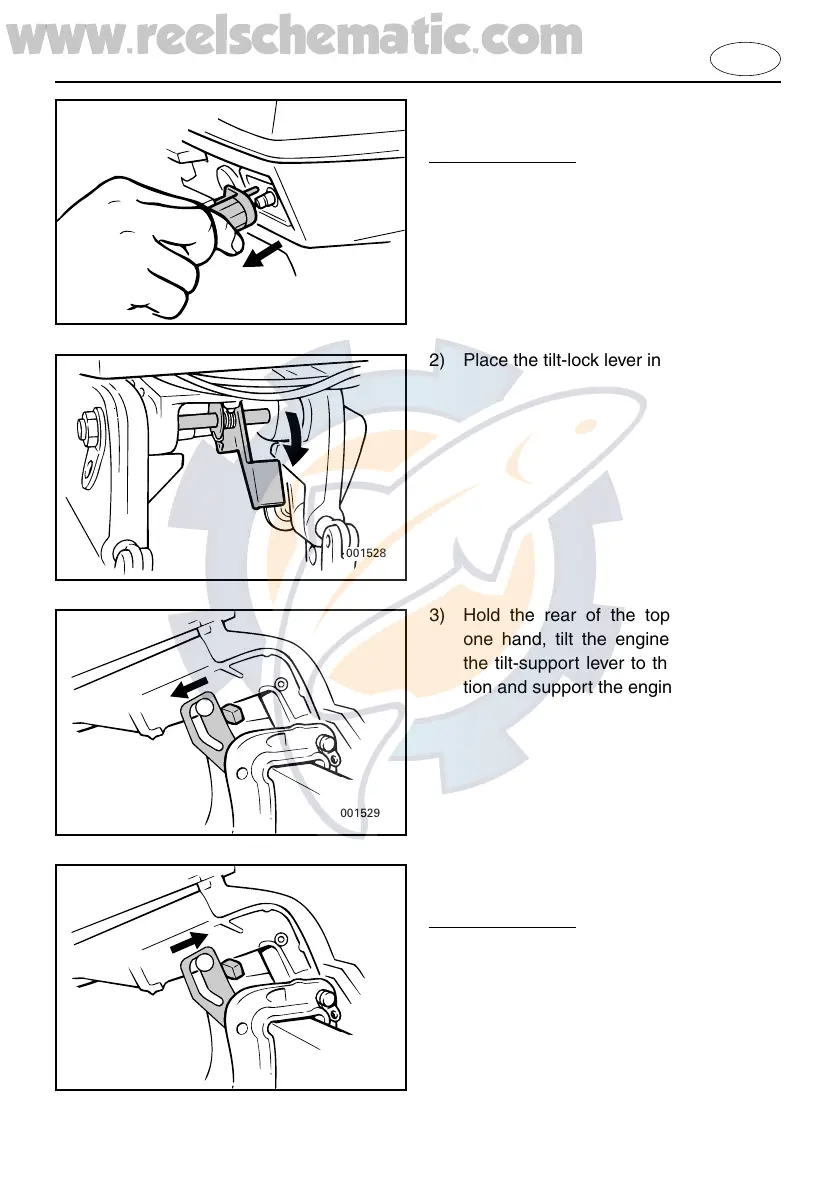

1) Remove the fuel-line connection from
the motor. (If the fuel connector is pro-
vided on the motor.)
2) Place the tilt-lock lever in Release.
3) Hold the rear of the top cowling with
one hand, tilt the engine up, and turn
the tilt-support lever to the locked posi-
tion and support the engine.
EMU00297
PROCEDURE FOR TILTING DOWN
Manual tilt model
1) Return the tilt support lever tilting up
the engine slightly.
2) Tilt down the engine.
