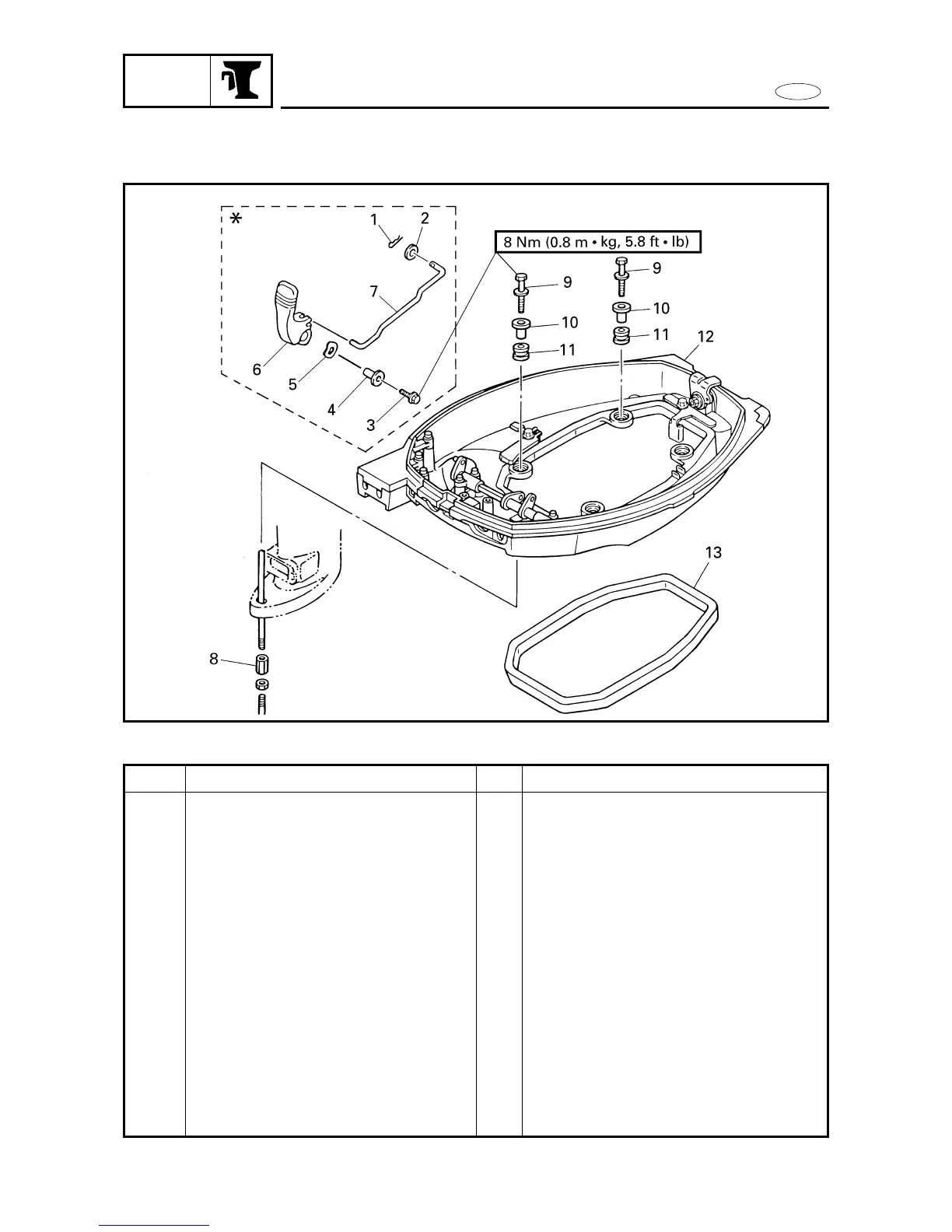

BOTTOM COWLING ASS’Y (F15A/F9.9C)

BRKT

BOTTOM COWLING ASS’Y (F15A/F9.9C)

EXPLODED DIAGRAM

7-11

REMOVAL AND INSTALLATION CHART

Step

Q’ty

Service points

Follow the left ”Step” for removal.

Front: M6

25 mm-2/ Rear: M6

35 mm-2

Reverse the removal steps for installation.

Procedure/Part name

BOTTOM COWLING ASS’Y REMOVAL

Power unit

Clip

Washer

Bolt

Collar

Wave washer

Shift lever (for MH/EH models)

Shift link rod (for MH/EH models)

Shift rod nut

Bolt

Collar

Grommet

Bottom cowling ass’y

Rubber seal

*: F15AMH, F15AEH/F9.9CMH, F9.9CEH
