Yamaha F9.9C Service Manual

E
STARTING SYSTEM
ELEC
R
R
1
2
3
4

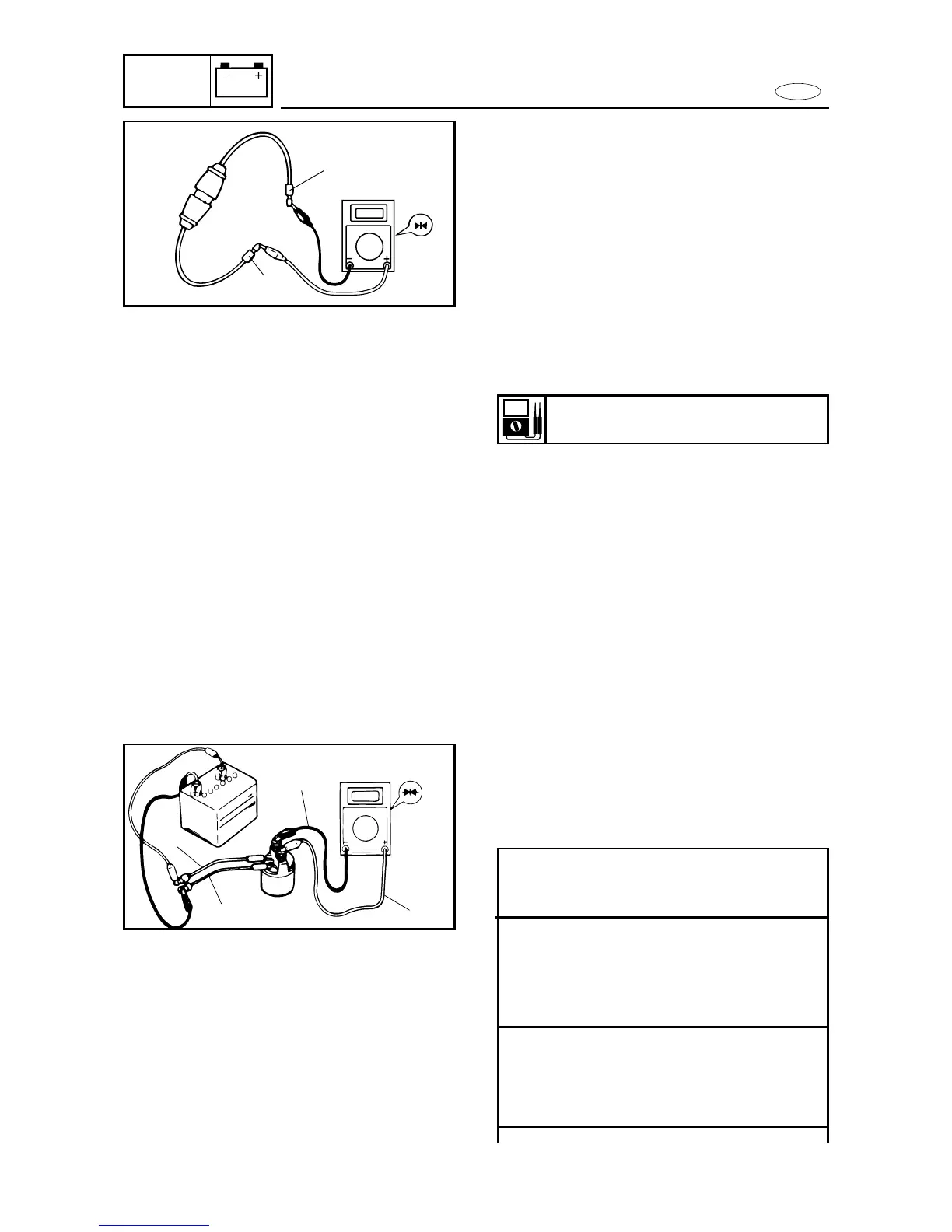

SERVICE POINTS
FUSE (EH/E MODELS)
1. Check:
9 Fuse holder
No continuity → Check the fuse hold-
er leads.
9 Fuse holder leads
No continuity → Replace.
Continuity → Check the fuse.
2. Check:
9 Fuse
No continuity → Replace.
WIRE HARNESS (E MODELS)
1. Check:
9 Continuity
No continuity → Replace.
WIRE CONNECTIONS
1. Check:
9 Wire connections
Poor connections → Properly connect.
STARTER RELAY (EH/E MODELS)
1. Check:
9 Starter relay condition
Out of specification → Replace.
Checking steps:
8 Connect the tester between the
starter relay terminals as shown.
Tester positive lead 1 →
Starter relay terminal
Tester negative lead 2 →
Starter relay terminal
8 Check that there is no continuity
between the starter relay terminals.
8 Connect the tester and battery
between the starter relay terminals.
8-21
Fuse rating:
12 V - 10/20 A
