Yamaha FC900 - Specifications; Error Messages

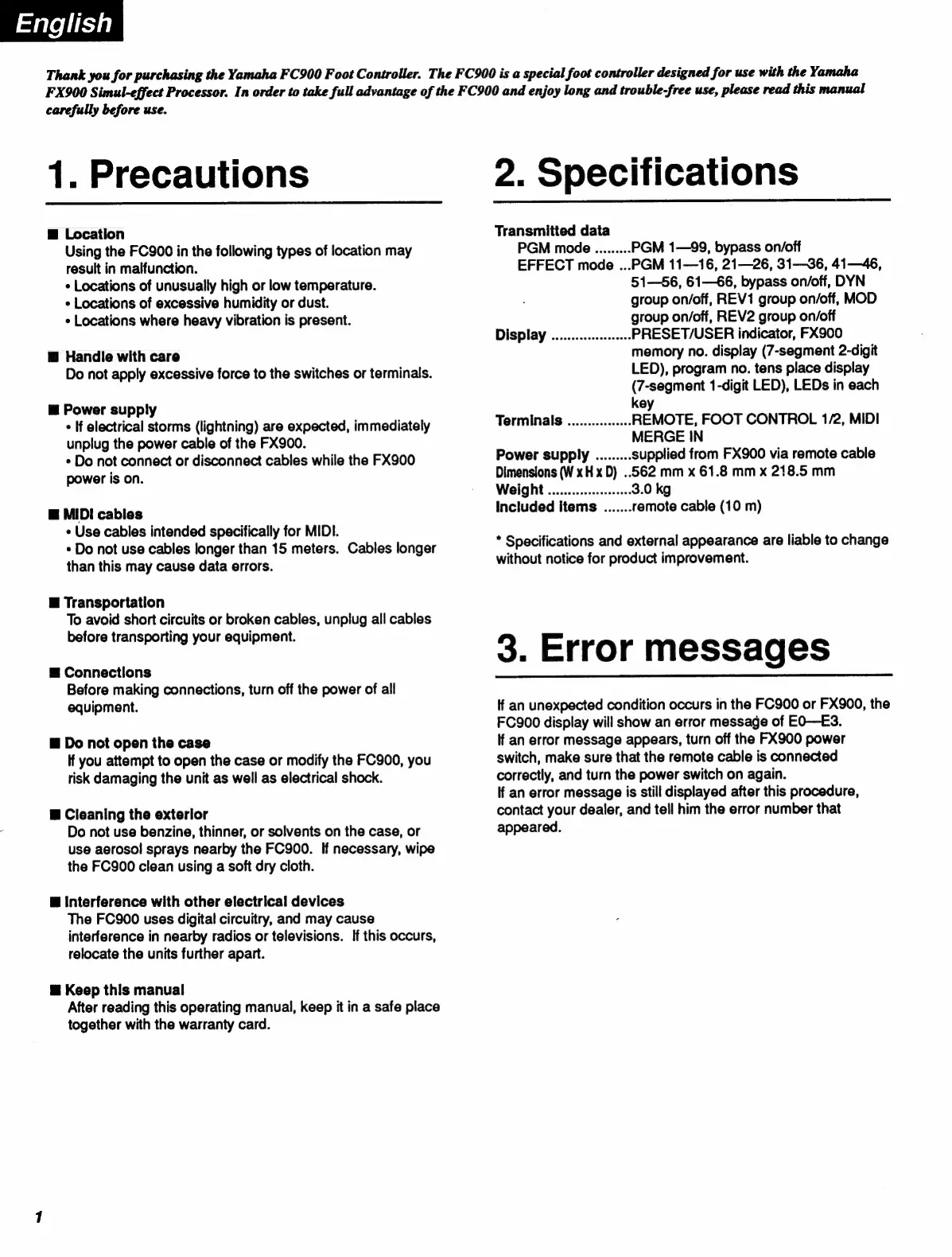

Thank
you
for
purchasing
the
Yamaha
FC900
Foot
Controller.
The
FC900
is
a
special
foot
controller
designed
for
use
with
the
Yamaha
FX900
Simul-effect
Processor.
In
order
to
take
full
advantage
of
the
FC900
and
enjoy
long
and
trouble-free
use,
please
read
this
manual
carefully before use.
1. Precautions
E Location
Using the FC900 in the following types of location may
result in malfunction.
e Locations of unusually high or low temperature.
e Locations of excessive humidity or dust.
e Locations where heavy vibration is present.
m Handle with care
Do not apply excessive force to the switches or terminals.
E Power supply
e If electrical storms (lightning) are expected, immediately
unplug the power cable of the FX900.
e Do not connect or disconnect cables while the FX900
power is on.
E MIDI cables
e Use cables intended specifically for MIDI.
e Do not use cables longer than 15 meters. Cables longer
than this may cause data errors.
E Transportation
To avoid short circuits or broken cables, unplug all cables
before transporting your equipment.
E Connections
Before making connections, turn off the power of all
equipment.
E Do not open the case
If you attempt to open the case or modify the FC900, you
risk damaging the unit as well as electrical shock.
m Cleaning the exterior
Do not use benzine, thinner, or solvents on the case, or
use aerosol sprays nearby the FC900. If necessary, wipe
the FC900 clean using a soft dry cloth.
E Interference with other electrical devices
The FC900 uses digital circuitry, and may cause
interference in nearby radios or televisions. If this occurs,
relocate the units further apart.
E Keep this manual
After reading this operating manual, keep it in a safe place
together with the warranty card.
2. Specifications
Transmitted data
PGM mode .......... PGM 1—99, bypass on/off
EFFECT mode ...PGM 11—16, 21—26, 31—36, 41—46,
51—56, 61—66, bypass on/off, DYN
group on/off, REV1 group on/off, MOD
group on/off, REV2 group on/off
Display ...................- PRESET/USER indicator, FX900
memory no. display (7-segment 2-digit
LED), program no. tens place display
(7-segment 1-digit LED), LEDs in each
key
Terminals ................ REMOTE, FOOT CONTROL 1/2, MIDI
MERGE IN
Power supply .......... supplied from FX900 via remote cable
Dimensions (W x H x D) ..562 mm x 61.8 mm x 218.5 mm
Weight ..................... 3.0 kg
Included items ........ remote cable (10 m)
* Specifications and external appearance are liable to change
without notice for product improvement.
3. Error messages
H an unexpected condition occurs in the FC900 or FX900, the
FC900 display will show an error message of EO—E3.
H an error message appears, turn off the FX900 power
switch, make sure that the remote cable is connected
correctly, and turn the power switch on again.
H an error message is still displayed after this procedure,
contact your dealer, and tell him the error number that
appeared.
