– 10 –
CHK
ADJ
EAS00043

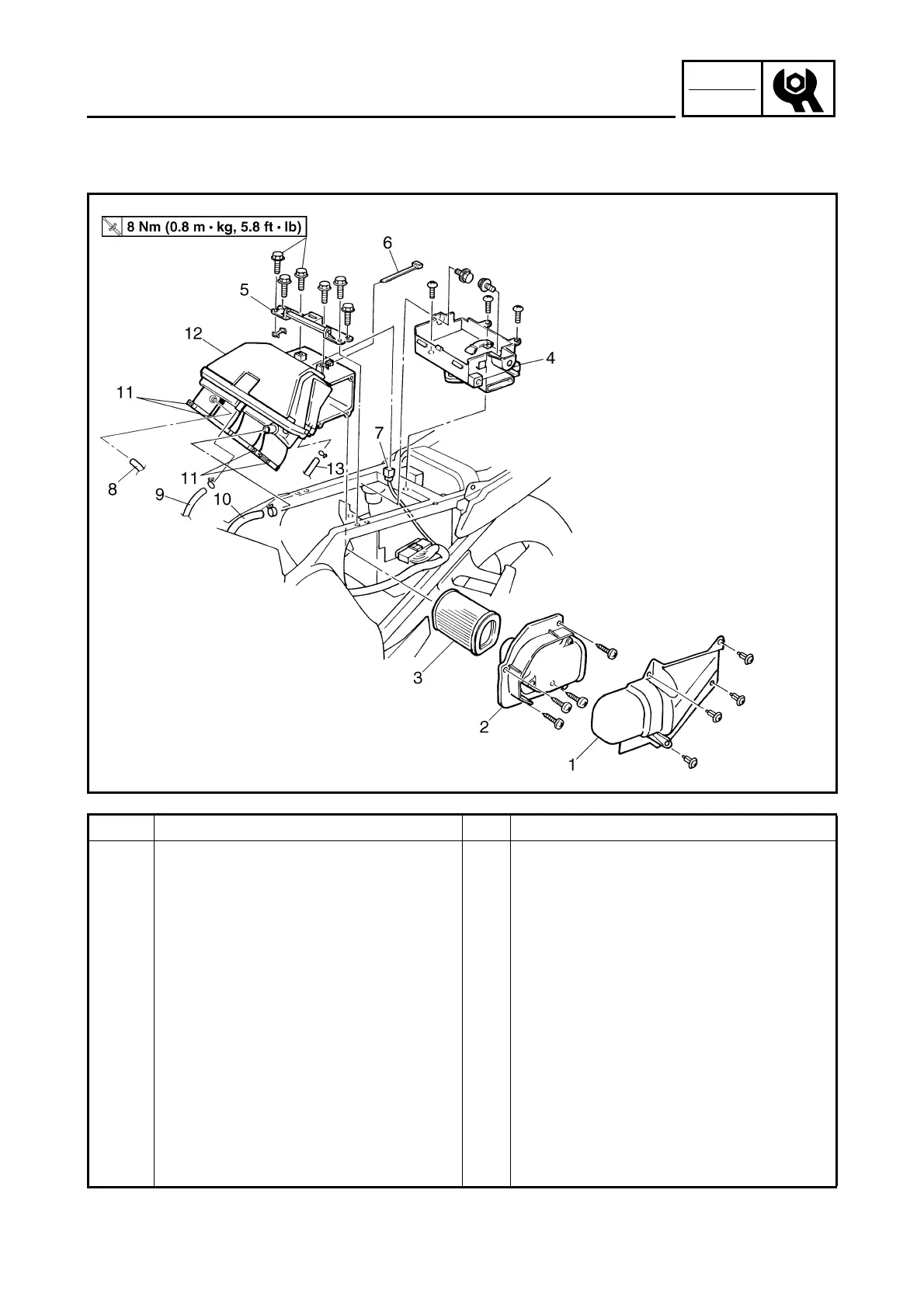

AIR FILTER CASE
Order Job/Part Q’ty Remarks
Removing the air filter case
Remove the parts in the order listed.
Seats Refer to “SEATS AND FUEL TANK” in
chapter 3. (Manual No.: 5JW1-AE1)
Fuel tank Refer to “SEATS AND FUEL TANK”.
Side covers (left and right) Refer to “COWLINGS AND COVERS”.
(Manual No.: 5JW1-AE2)
1 Air shroud 1
2 Air filter case cover 1
3 Air filter element 1
4Tray 1
5 Fuel tank bracket 1
6 Plastic locking tie 1
7 Intake air temperature sensor coupler 1
8 Bypass air unit inlet hose 1 Disconnect.
9 Crankcase breather hose 1 Disconnect.
AIR FILTER CASE
To Next Page
