5-8
Order Job/Part Q’ty Remarks
1
2
3
4
5

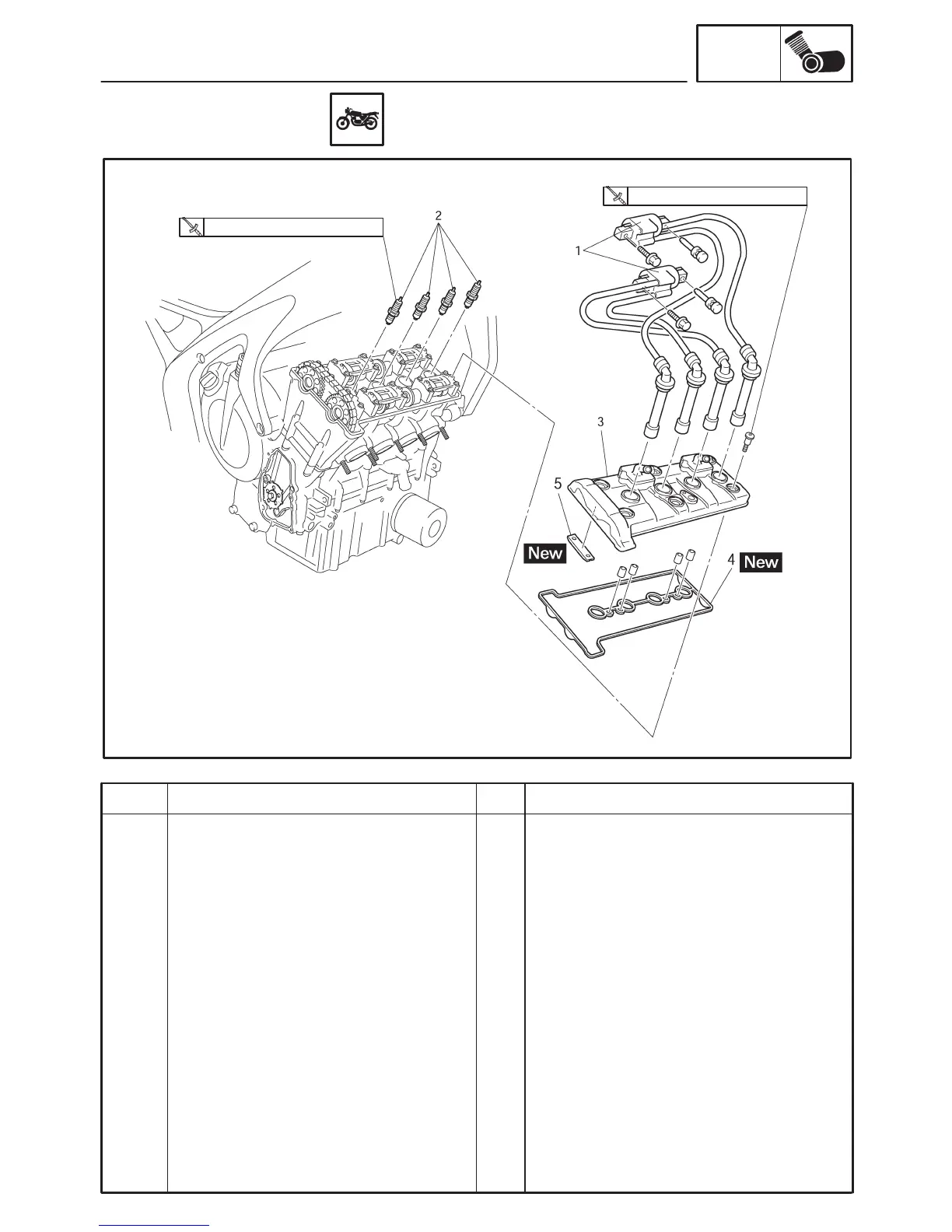

Removing the cylinder head cover
Battery
Air filter case
Battery box and battery box bracket
Throttle body assembly
Radiator assembly
Air cut-off valve
Ignition coil
Spark plug
Cylinder head cover
Cylinder head cover gasket
Timing chain guide (top side)
4
4
1
1
1
Remove the parts in the order listed.
Refer to “CHECKING AND CHARGING
THE BATTERY” in chapter 3.
Refer to “AIR FILTER CASE” in chapter 3.
Refer to “BATTERY BOX AND BATTERY
BOX BRACKET” in chapter 3.
Refer to “THROTTLE BODIES” in
chapter 7.
Refer to “COOLING SYSTEM” in
chapter 6.
Refer to “AIR INDUCTION SYSTEM” in
chapter 7.
For installation, reverse the removal
procedure.
18 Nm (1.8 mSkg, 13 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
CAMSHAFTS
ENG
EAS00194
CAMSHAFTS
CYLINDER HEAD COVER
