4-11
4

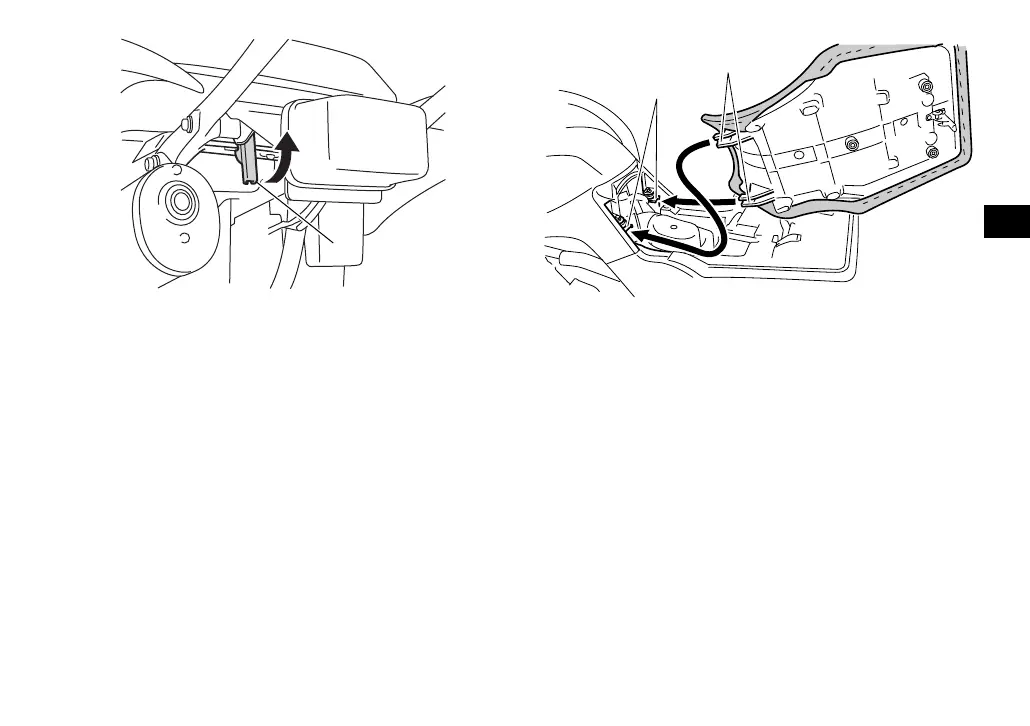

To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.
EBU18962
Front carrier
● Do not exceed the load limit of 5.0 kg (11 lb) for
the front carrier.
● Do not exceed the maximum load of 105.0 kg
(231 lb) for the ATV.
EBU18972
Rear carrier
● Do not exceed the load limit of 10.0 kg (22 lb) for
the rear carrier.
● Do not exceed the maximum load of 105.0 kg
(231 lb) for the ATV.
1. Seat lock lever
1. Projection
2. Seat holder
U1PY61E0.book Page 11 Wednesday, March 14, 2012 5:22 PM
